Details
The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.
Features:
- Dual Channel 31-Band Graphic Equalizer
- Constant-Q Filtering

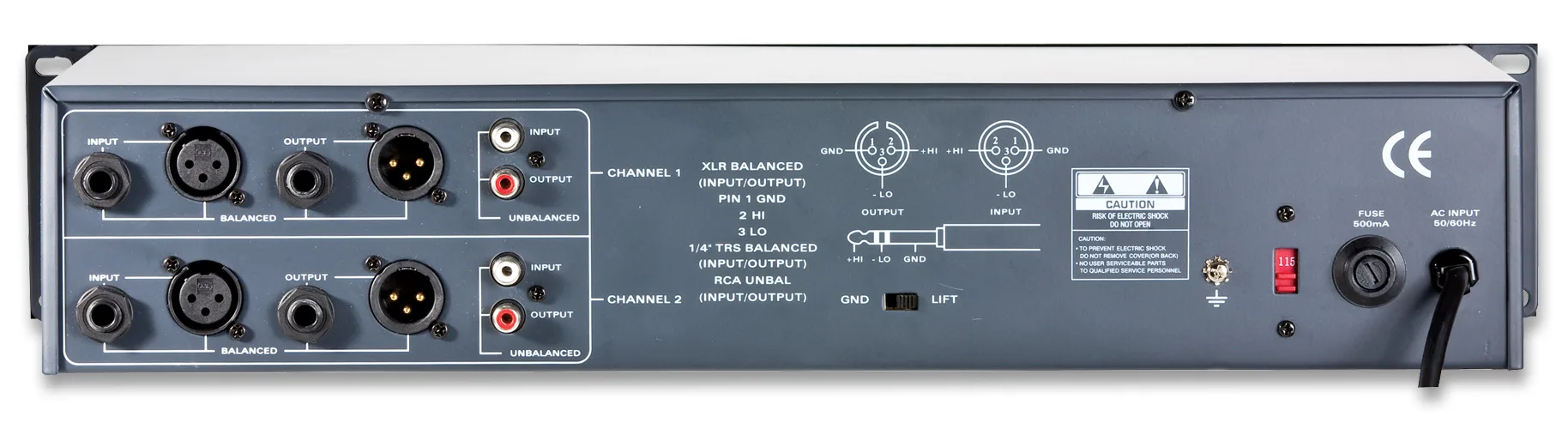

- Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors
- Variable High-Pass and Low-Pass Filters
- +/- 6dB or +/-12dB Level Adjustments
- 20mm Center Detented Frequency Band Sliders
- Independent Level and Bypass Controls Per Channel
- Designed for Years of continuous, reliable performance
- Rugged All Steel Construction
- One Year Warranty
Specifications:
| Filter Type | Constant Q – 3% center accuracy |
| Frequency Bands | 31, 1/3 octave, ISO spacing |
| Frequency Response | 20Hz to 20kHz, +0.5dB |
| High Pass Filter | 10Hz to 250Hz, 12dB/oct |
| Input Impedance | 20k Ω (bal), 15k Ω (unbal) |
| Input/Output Connections | Active balanced XLR and 1/4″ TRS {XLR pin 2, 1/4″ tip = Hot (+)} Unbalanced RCA |
| Low Pass Filter | 3kHz to 40kHz, 12dB/oct |
| Maximum Input Level | +22dBm |
| Maximum Output Level | +18dBm (bal), +22dBm (unbal) |
| Power | (Switchable) 95-130VAC, 50/60Hz, 22 W (USA) |
| Range | +/-6dB or +/-12dB selectable |
| Signal to Noise Ratio | -94dB |
| Slider Travel | 20mm w/ positive centre detent |
| Total Harmonic Distortion | 0.0001 |
| Warranty | One Year |
| Dimensions | 3.5″H x 19″ W x 8.5″ D |
| Weight | 4.1kg |
