ART CX310

$499.99

SKU: ARTP_CX310CE Categories: , Tags: ,

Stereo 2-way/Mono 3-way Active Crossover

FacebookTwitterPinterestLinkedin

Description

The ART CX310 is a perfect addition to any sound reinforcement system. Designed for PA and fixed-installation applications, the CX310 employs 24dB/ octave state-variable, fourth-order, Linkwitz-Riley filters. These filters guarantee in-phase outputs at all frequencies. This ensures the proper acoustic summing of common signals from adjacent drivers in the crossover region. Housed in a rugged all-steel chassis, the model CX310 will provide years of reliable and continuous service.

The CX310 may be used as either a stereo 2-way crossover network, splitting the signal in each channel into two separate frequency ranges (Lo and Hi), or as a mono 3-way crossover network, splitting one signal into three separate frequency ranges (Lo, Mid and Hi).

CX310 Highlights:

  • Each channel features input level, high and low output level and crossover frequency rotary controls
  • Frequency x10 switch provided for varying the crossover frequency from the standard 80Hz -920Hz to 800Hz – 9200Hz.
  • Front-panel output mute switches for each individual output to ease system setup.

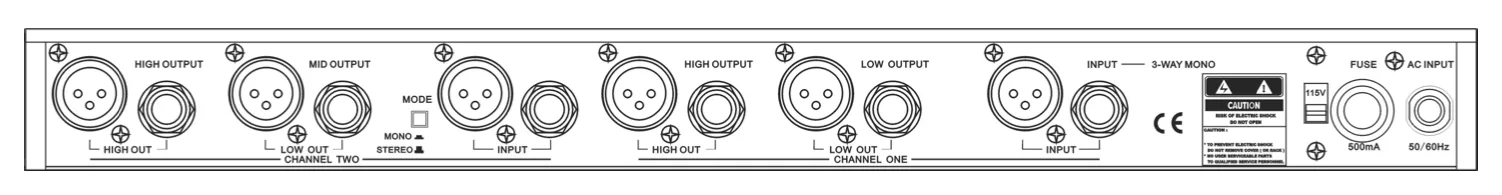

  • Rear panel features balanced XLR and 1/4” TRS input and output connectors as well as a 2- way/ 3-way mode selector switch.
  • Power for the CX310 is internal

Features:

  • Stereo Two-Way or Mono Three-way Configurations
  • Fourth-Order Linkwitz-Riley Filters
  • Active Balanced XLR and 1/4″ TRS Input and Output Connectors
  • Individual Output Muting Switches
  • x10 Frequency Range Adjusting Switch
  • Clipping Indicators on all Outputs
  • Designed for Years of continuous, reliable performance
  • Rugged all-steel Construction

Specifications:

Input Connections  XLR, 1/4” TRS, balanced
Output Connections  XLR, 1/4” TRS, balanced
Frequency Response  10Hz to 20kHz, +0/-1.5dB
Crossover Frequency Range     x1  80Hz to 920Hz
x10  800Hz to 9.2kHz
Crossover Filter Type  Fourth-order Linkwitz-Riley, 24dB/octave
Dynamic Range  118dB
Signal to Noise Ratio  >85dB
Input Impedance  20k Ohms
Output Impedance  150 Ohms
Maximum Input Level  +13dBu
Maximum Output Level  +21dBu
Total Harmonic Distortion (THD)  <0.05% (20Hz-20kHz)
Power Requirements  configured for country of destination
Dimensions (HWD) Weight  44mm x 483mm x 165mm / 3.2 kg
