Details
DEEP INSTRUMENT CONTROL IN ANY DAW WITH VST/VST3/AU SUPPORT
Panorama T4 is the first controller to deliver Nektar-level instrument plugin control in any VST/AU compatible DAW. Load patches directly from the keyboard and start controlling parameters immediately, with every change instantly visible on the LED display. Control any instrument plugin with one of the many included maps or customize and create your own. Discover new performance tools like the powerful chord, hold and note repeat functions. Tweak repeat parameters, plugin parameters and record it all in your DAW. Panorama T4 connects to most DAWs delivering track navigation, mixer and transport control with either Nektar DAW integration or MCU compatibility. Experience the unsurpassed integration of Panorama T4!
KEYS & PADS
- 49 note 2nd Gen synth-action keyboard with aftertouch.
- Expression & pedal sockets.
- 8 super-sensitive pads with pressure.
- Chord: Trigger up to 6 notes from one key or pad.
- Hold: Holds played notes until deactivated – great with legato.
NOTE REPEAT
- Inspiring performance tool.
- Real-time control of trigger rate, accent, swing and gate.
- Separate settings for keys and pads.
- Switch on/off at any time with dedicated repeat buttons.
- Sync to external clock.
- Control velocity with pressure or wheels.
NEKTARINE 2.5
- Instant access to Nektar plugin control in any VST/VST3/AU DAW or standalone for live use.
- Customise mapping or create plugin maps from scratch.
- Browse patches directly from Panorama T4.
- Layer up to 8 VST/VST3/AU plugins and effects with mix control of volume, pan, mute, solo and select
- The 2.5 update adds the missing element for creating beats with the T Series pads: The new integrated DP-1 Drum Player plugin plays any WAV or AIFF audio files with up to 24 bit / 192 kHz sample rate and comes with a library of over 500 drum sounds, right out of the box, and also includes K1 Kick Synth, S1 Snare Synth and T1 Tom Synth.
DAW CONTROL
- Nektar DAW integration included for Bitwig, Cubase/Nuendo, GarageBand/Logic, Reason, Reaper and Studio One.
- MCU compatible for control of almost any other MIDI Music software.
PLAY: 2ND GEN PANORAMA KEYBED
Panorama T4 features a 2nd generation Panorama synth-action keybed. Dampened and carefully balanced across the keyboard with medium tension, which means the activation force required is in the middle of the range established for professional keyboards.
Five velocity curves shift the emphasis from soft to hard, giving enough choice to cater for any playing style. A fixed option enables velocity values to be set by controls, including the wheels.
The 2nd Gen Panorama keybed is our most expressive keybed yet and features the AfterTouch strip: Easily triggered and controlled, AfterTouch makes it possible to dynamically alter tone or volume by gently applying just a bit of pressure.
PADS: BEATS ON TAP
Designed with finger drumming in mind, Panorama T4’s 8 large velocity and pressure sensitive pads are the perfect tool for beat creation. Triggering at an extremely low threshold, they will capture ghost notes and flams as easily as you can play them. If the factory settings are not expressive enough for you, it’s even possible to calibrate each pad individually for optimum performance.
Each pad can be assigned any MIDI note number or MIDI cc message for use as MIDI trigger or toggle buttons – and assigning sounds couldn’t be easier: Activate Pad Learn, select a pad, play the required note or drum sound on the keyboard and assignment is done. A Pad Bank Button left to the pads gives you access to another 8 pads, for a total of 16 pads within a pad map. 8 such pad maps are available for recall at any time.
With DAW Integration, transport controls are mapped for optimum use (without a mouse) and you additionally get automatic mapping of dedicated drums synths such as Reason’s Kong, Studio One’s Impact XT and Bitwig’s Drum Machine for a tightly integrated drum machine feeling, complete with full visual feedback on the pads.

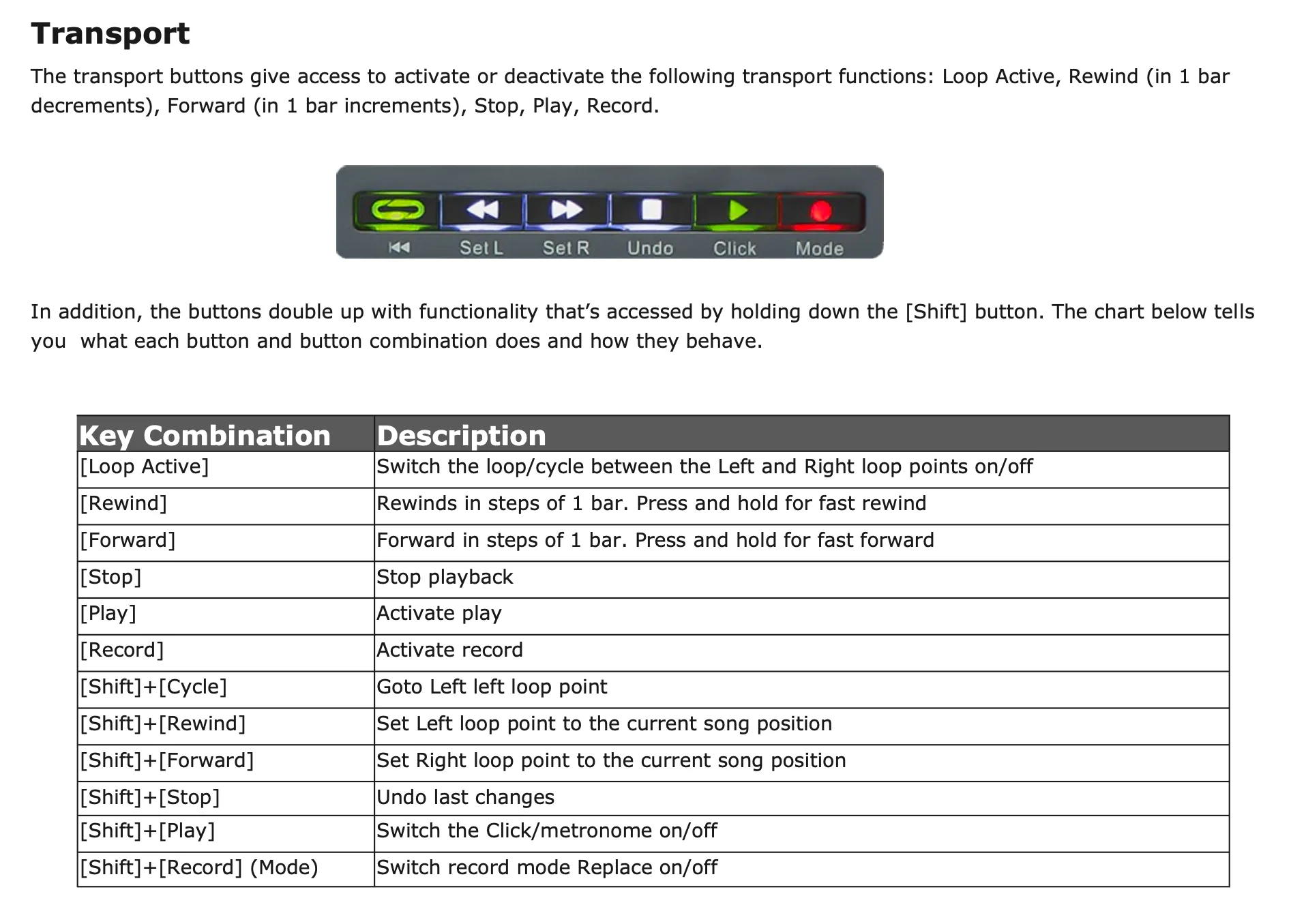

Example transport control mapping for Presonus Studio One:
You can even assign chords to the pads and combine this with the Pad Repeat feature to generate fun rhythmical and chordal figures.
The display’s “Velocity Spread” softkey quickly spreads the last played note across all 16 pads, each with its own fixed velocity, making it easier to create consistent and nuanced dynamics. And “VelFix” gives you access to a pre-assigned fixed velocity level.
PERFORM: KEY AND PAD REPEAT
Located just above the wheels are the Key Repeat and Pad Repeat buttons. Press to activate the repeat function and notes will be repeated at the set rate. Change the rate in real-time from 1/4 – 1/96 note values, change the tempo, add some swing and set an accent interval.
Repeat settings for pads and keys are independent of each other, so one can be set for the drum beat and the other for an instrumentation part. The Repeat’s trigger mode can be set to repeat from the point of playing a note or to sync with the beat. Clock source can either be internal or external MIDI clock.
Repeat is a fun way to look for ideas and facilitate “happy accidents”, regardless of whether you are adding flams to drum beats or creating big repetitive chord progressions.
CONTROL: ACCESS ALL AREAS
Nine 30mm faders, 8 assignable LED buttons and 8 encoders are at the centre of the T-series’ control panel. Each control is fully programmable to send any MIDI CC message for use with hardware or software MIDI products.
When used with Nektar DAW integration or Nektarine, the controls provide flexible pre-mapped DAW- or plugin-control, giving you deep tactile control right from the hardware. The DAW integration files also contain automatic catch-up and soft-takeover functions to avoid parameter jumping when you switch between devices.

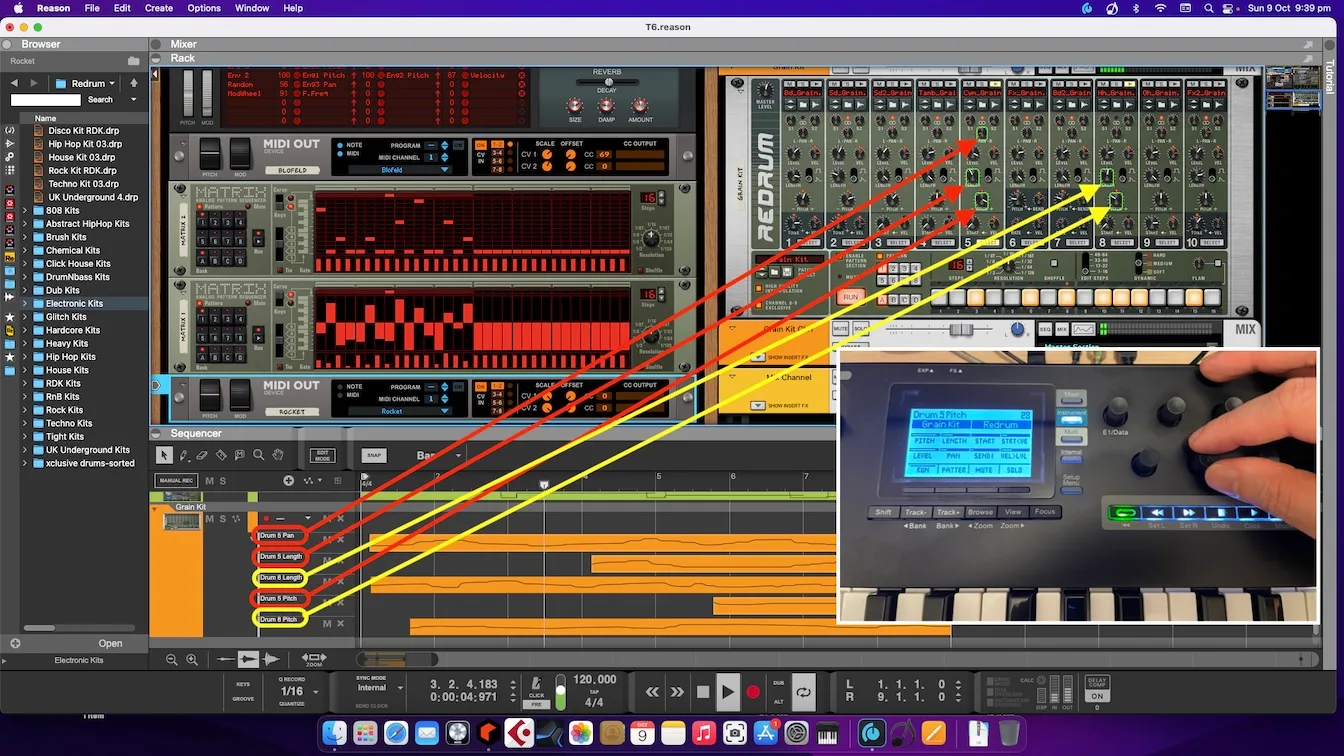

Individual pad control detail in Reason’s ReDrum with T4 knobs providing automation
Our “Null” function additionally allows you to do this without relying on software feedback with independent settings for each of Mixer, Instrument, Multi and Preset modes. Control settings can be stored in any of Panorama’s 10 presets for recall at any time.
DISPLAY: INSTANT FEEDBACK

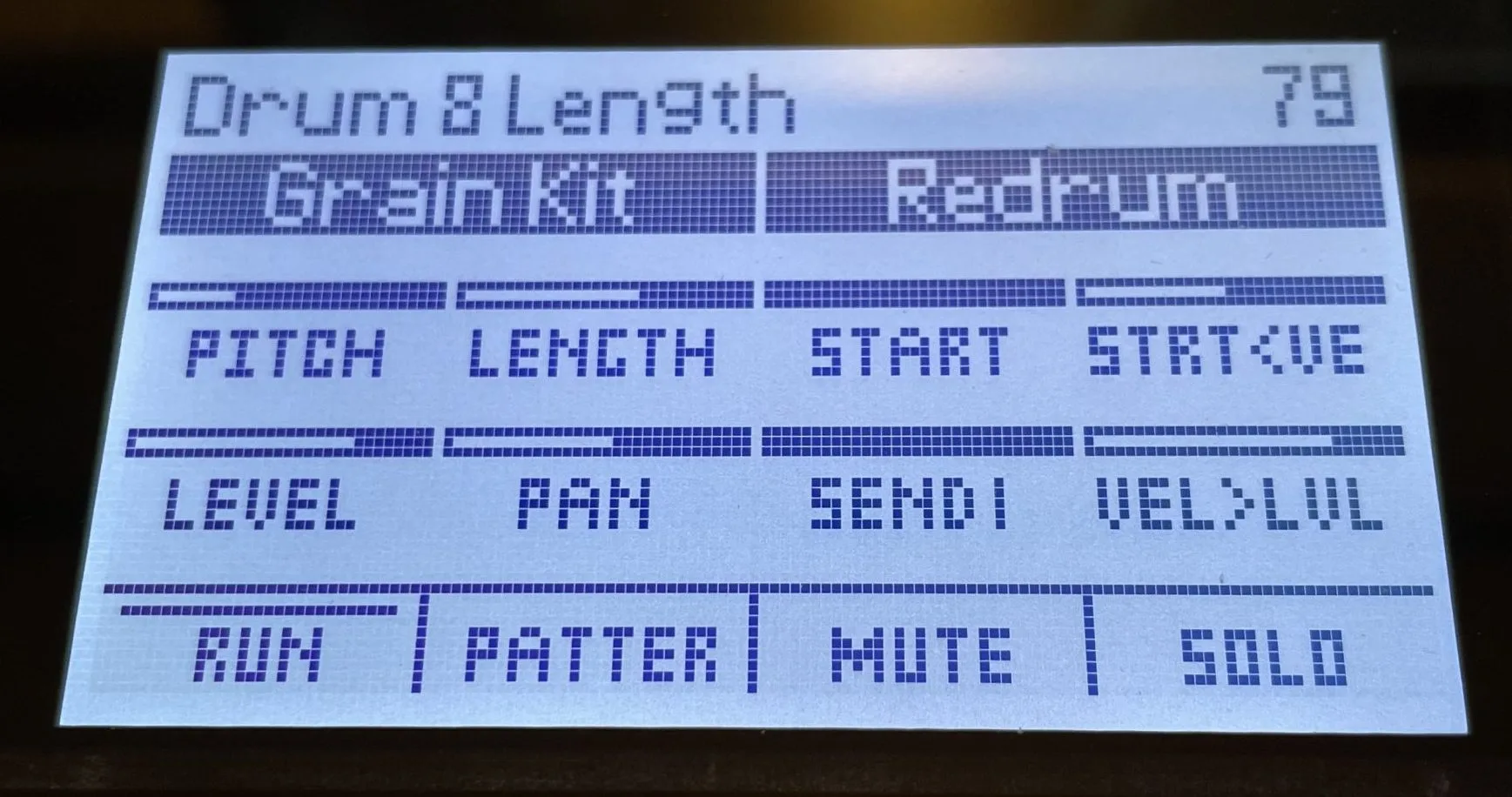

The custom LCD display provides crisp and clear feedback for all your settings: Here is where you select Panorama’s different modes, access global parameters and navigate your software. With DAW Integration and Nektarine, you will even see your software’s mixer and plugin parameters right there.
The 4 soft buttons below the display will change their function according to the selected menu for fast access. The 4 mode buttons to the right of the display allow you to change from internal mode to DAW or plugin control at the touch of a button. The Multi button is reserved for Nektarine.
By pressing the FOCUS button, you can enlarge the current parameter to fill the whole screen. All of this ensures a fluent and fast workflow without any guessing games.
CONTROL MAPS

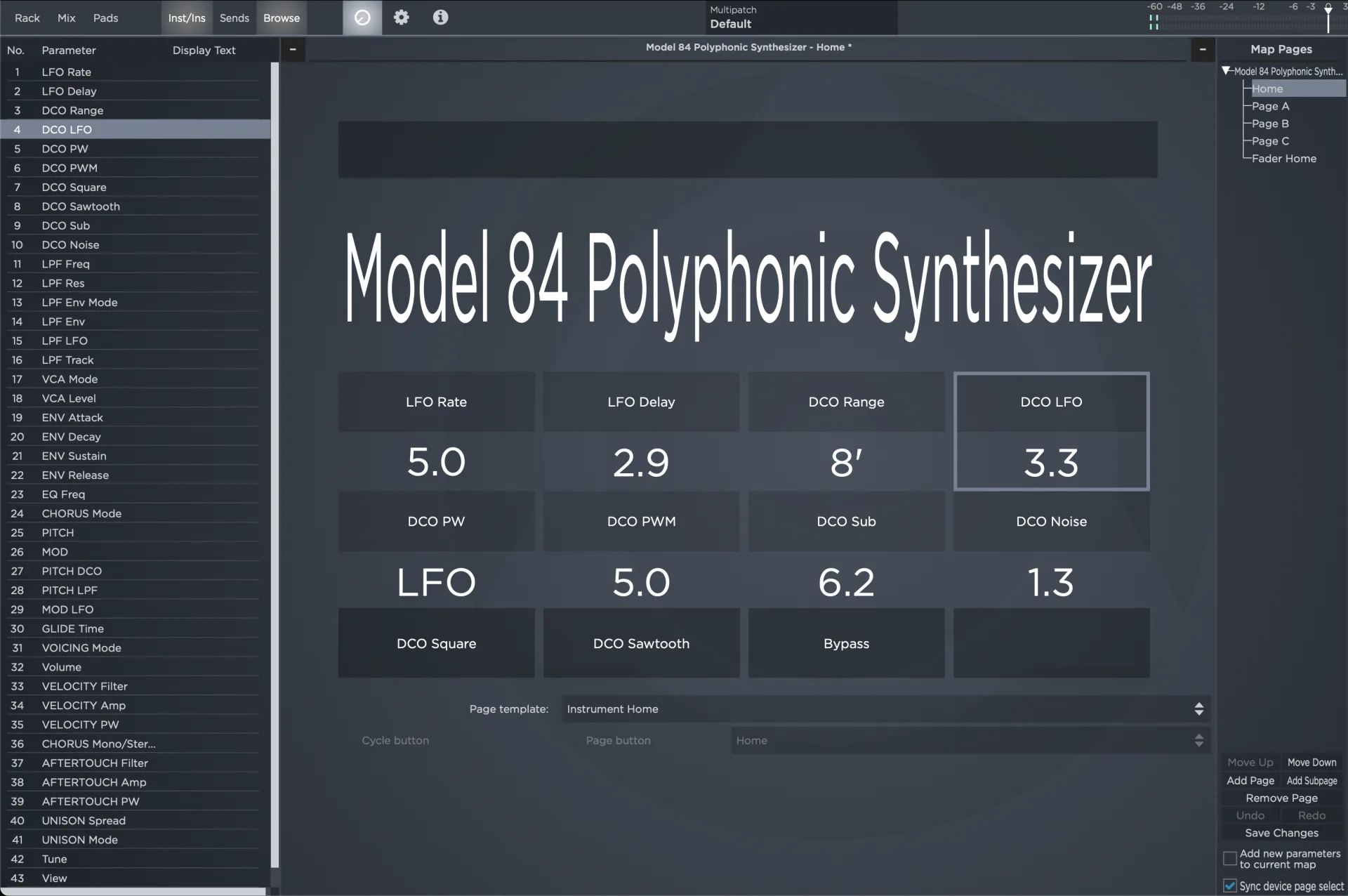

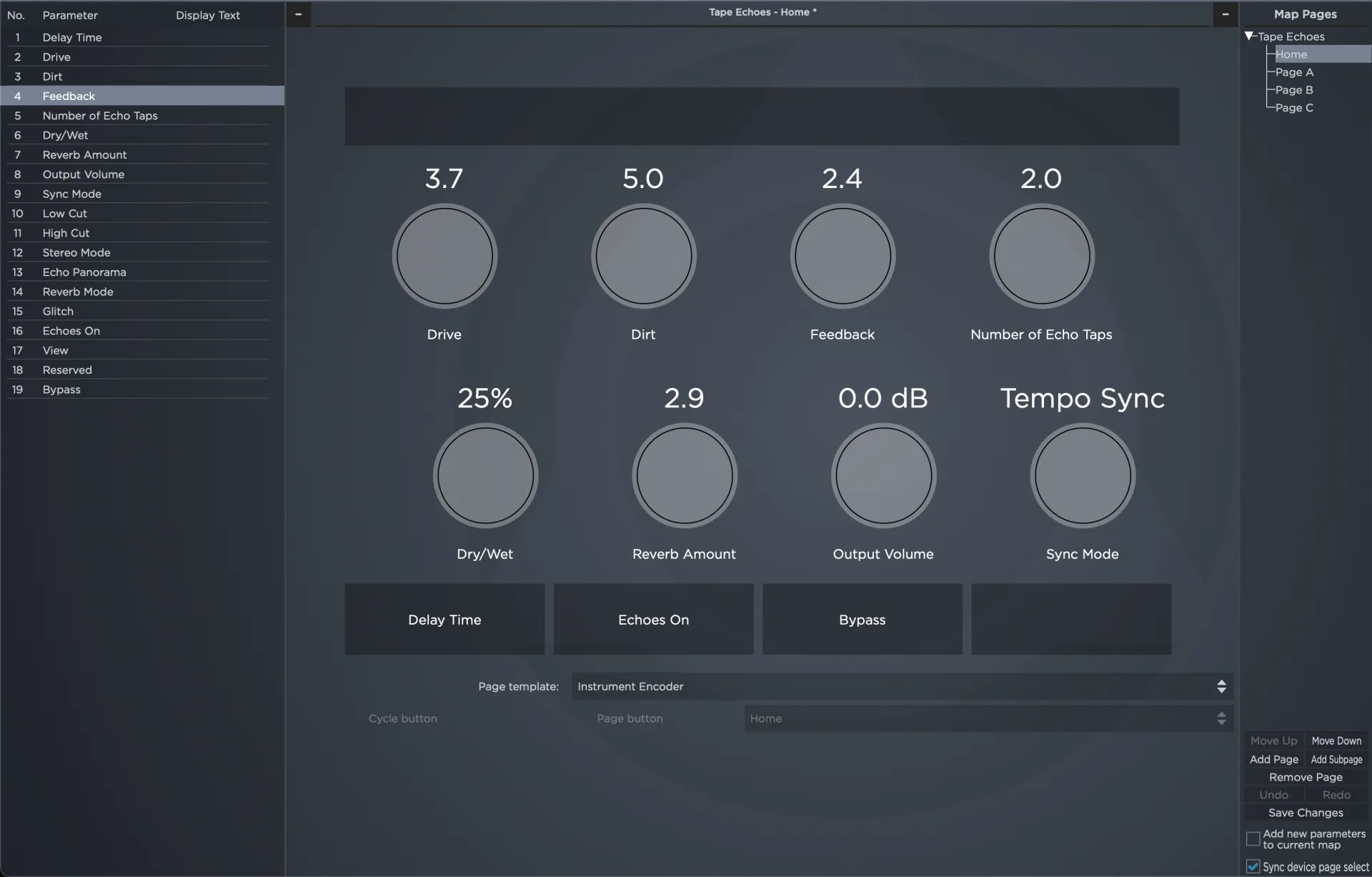

No doubt, there will be plugins out there not yet factory mapped for Nektarine: no problem! Click the “Edit” button in the Nektarine header to open the control edit page. This is where control map pages are created. You can also rename parameters and create navigation assignments so it’s easy to select the plugin’s pages. Drag and drop parameters to assign them to controls on each page or use Panorama’s parameter learn function.
Factory maps are also customizable and any map can be saved for automatic recall every time the plugin is loaded.
Nektarine and Panorama T4 delivers an unrivalled control experience with deep integration typically not even available on dedicated hardware synthesizer products. With this level of control you’ll see your instruments in a new light.
BROWSE MEANS LESS
Nektarine’s browser enables browsing of patches directly from Panorama T4/T6. Factory patches for most of the popular instrument plugins are instantly available with minimum setup.
Your own user patches can also be imported or saved, so over time there will be quite a few patches to choose from in the Nektarine browser. Thankfully, Nektarine has all the tools to help you manage thousands of patches – including patch tagging, search and rating options which make it easy to find exactly the patch you are looking for.
Group tags store a combination of tag settings and make it possible to narrow your options at the push of just one button.
The best part is that the Nektarine browser allows complete migration between DAWs: Use Nektarine in one DAW and your plugins can be browsed the same way in any other compatible DAW.
WHERE IS NEKTARINE?
You hardly notice it, but it’s there. Nektarine is discreet and doesn’t impose itself on you or your DAW. But behind it lies a powerhouse of features that enhance control and library management of instrument plugins.
Nektarine can operate standalone for live use, organising and storing your favourite synth and FX plugin combinations:
Launch Nektarine and it will immediately communicate with your Panorama T4. Now you are ready to take deep control of VST, VST3 or AU plugins from Panorama: Load an instrument plugin that’s supported by Nektarine’s default plugin maps and create new and exciting sounds that you didn’t even know your plugin was capable of. Turning knobs is so much more fun than mousing around. The display will tell you which parameter is assigned to each control as well as status feedback.

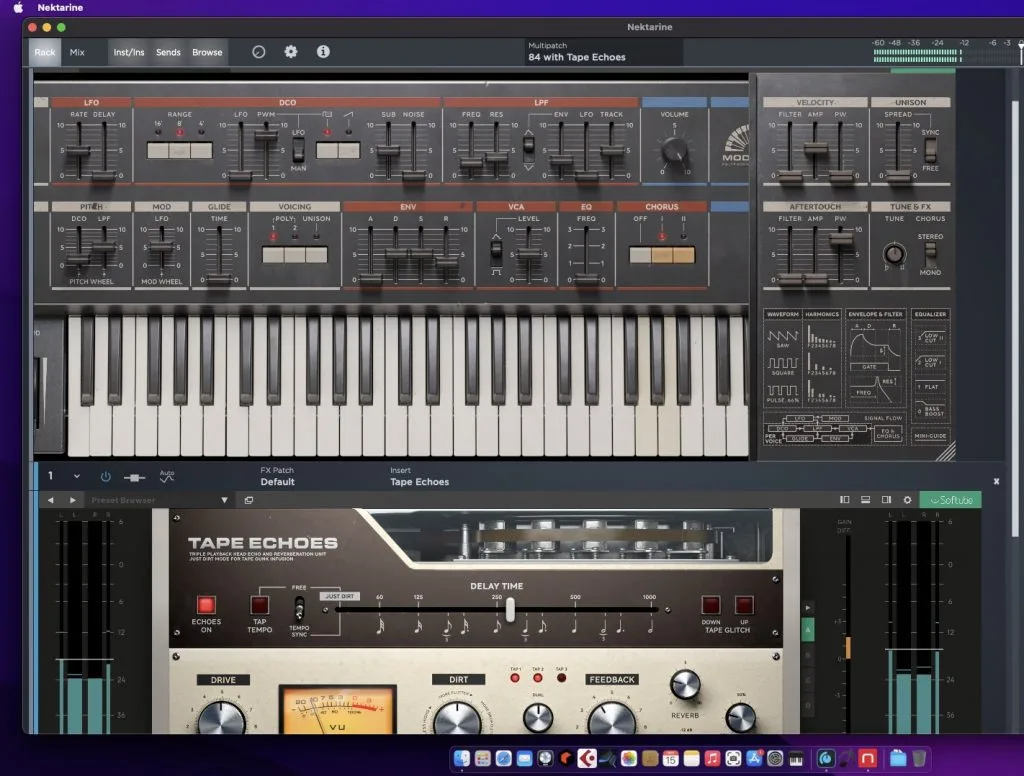

* Drag-and-drop parameter mapping for instruments and effects, e.g. the Model 84 synth and Tape Echoes effect shown above
The LED buttons below the faders are set up for navigation so it’s quick and easy to find your way around even complex plugins. Each button is labeled with a common control page name such as OSC, Filter, Env, LFO and FX. As soon as you press a button, the corresponding Nektarine factory map page is selected. The LED buttons can be “learned” to any map page so you can set up each map exactly how you want it.
MULTI MEANS MORE
Panorama T4’s Multi mode enables up to 8 instrument plugins to be layered in Nektarine. Each plugin slot has its own unique browser settings as well as volume, pan, mute and solo parameters assigned for instant mix from Panorama.
When Multi mode is active, patches loaded for each slot are clearly listed in the display and slots can be added in real-time. Press the Browse button at any time to load a new patch in any of the active slots. Multi definitely means more!
DAW CONTROL
Panorama is compatible with any DAW that supports Mackie® Control Universal (MCU). This includes transport, track selection and basic mixer control. The 6 LED transport buttons put an end to using the mouse for this. Dedicated Track up/down buttons are located below the display. If your DAW is supported by Nektar DAW Integration, you can do even more.
FIX IT IN THE MIX
Control basic mixer functionality right away: The first 8 faders control your DAW’s mixer in banks of 8 channels each, their LED buttons activate mute. And this works in any DAW, that supports MCU. Hold shift and move through your mixer in banks of 8, using the Bank buttons below the Display. The 9th fader controls master volume, the encoders are mapped to channel pan.
With Nektar DAW Integration, you get extended features such as alternating channel 9 between volume control for master and current channel – or toggling the LED buttons between solo and mute. Depending on your DAW, you can also use the display buttons to switch the encoders to control sends or smart/quick controls in Logic or Cubase for example. To help you make the best out of your screen estate, Panorama also has shortcuts for opening and closing your DAW mixer window.
NEKTAR DAW INTEGRATION – THE COMPLETE SYSTEM
Nektarine and MCU DAW control create a powerful system. Our Nektar DAW Integration software takes the system integration even further: This custom software is especially created for each of the supported DAWs and will provide you with a common workflow that gives access to expanded transport and mixer functions as well as control of your DAW’s own instruments. It’s the most complete DAW control system available, even compared with products in higher price brackets. Panorama T-series’ DAW integration currently supports Bitwig, Cubase, Garageband, Logic, Nuendo, Reaper, Reason and Studio One.
HIGHLIGHTS
- Extended transport control with Goto Left locator, Set L and Set R locators, Undo, Click and Record Arm.
- Mixer mode with display feedback, track listing, volume, pan and sends control.
- Control of Smart/Quick Control in Logic and Cubase/Nuendo, channel macros in Studio One.
- Dedicated maps for DAW’s own included instruments.
- Basic mapping of plugins not hosted in Nektarine, offering 2 encoder pages (1 in Studio One) and one fader control page.
- Grab/learn parameters – take control of any parameter on the active instrument immediately.
- Automatically detects and manages communication with Nektarine when inserted on a track.
- Automation write/read activation.
MIDI AND USER PRESETS
If you prefer to control MIDI hardware products, Panorama T4/T6 can do that as well. The Control Edit menu makes it easy to program any of the controls to send MIDI messages from standard MIDI cc, RPN and NRPN, MMC and of course note messages. Buttons and pads can even be set up to load specific Panorama T4/T6 presets or pad maps as well as trigger chords.
There are 10 presets to store control setups and a further 8 pad maps storing 2×8 pad assignments each. Once controls are programmed as they should be, connect your MIDI equipment to the MIDI output jack and get started. You can use the repeat buttons to expand your performance options as well as of course the chord and hold functions.
CONNECTIONS

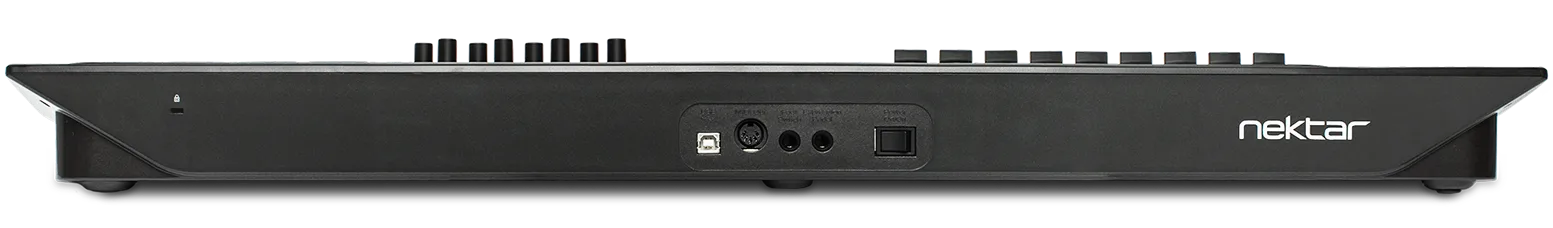

On the back of the Panorama T4 you’ll find:
- USB port for power and data connection to your computer
- Foot switch jack, assignable (pedal not included)
- Expression pedal jack (pedal not included)
- MIDI Output
- On/Off switch
As a low powered USB device, Panorama T4 works with all USB devices that feature a Class compliant MIDI driver. This includes all version of Windows from XP and higher, Apple OS X 10.5 and higher plus Linux (as long as a USB MIDI driver package is installed). Apple iOS is supported using Apple’s powered USB camera connection kit. For Nektar DAW integration and Nektarine, you’ll find the system specifications at the end of this page.
BITWIG 8-TRACK INCLUDED
Bitwig Studio 8-Track is included with Panorama T4, so you can start producing, performing, and designing sounds like a pro from day one. Bitwig 8-Track gives you access to over 50 software instruments and effects for use on up to 8 audio or MIDI project tracks, and you can use any 3rd party VST plug-ins you might own, too. The ‘Bitwig Essentials Package’, a highly versatile handpicked selection of loops, clips and samples, is also included to help you get started. So put all that together and you have a powerful sketchpad for your musical ideas featuring the acclaimed workflow of Bitwig Studio.
Nektar DAW Integration supports Bitwig Studio 8-Track, so using Nektar Panorama T4 and Bitwig 8-Track together is a fantastic combination. If you are just starting out, you will find it’s the perfect way to take your first steps in the world of digital music creation. And if you’re already familiar with using computer software, then you’ll be amazed at what this combination has to offer!
Cherry Audio plugin bundle now included
Purchase of Panorama T-Series keyboards now includes a bundle of 5 Cherry Audio plugins (registration of Nektar product required to claim). The Nektar Cherry Audio plugin bundle includes 5 full version plugins: Mercury-6, PS-20, OctaveCat, DreamSynth and Starburst-201 tape echo.
SPECIFICATIONS
Keyboard
- 49 note 2nd Gen synth-action keyboard
- velocity and aftertouch sensitive
- 4 velocity curves plus 1 fixed (adjustable)
- Pitch bend & Modulation wheels
- Octave shift buttons
- Key & Pad Repeat Buttons
Controls
- 9 x 30mm faders
- 8 assignable LED buttons
- 8 assignable encoders
- 4 navigation buttons + shift for another 4 assignments
- 6 LED transport buttons
- 10 user configurable presets
- Mixer, Instrument, Multi and Internal Mode Buttons
Display
- 128 x 64 px custom LCD display
- adjustable contrast
- Focus function displays current parameter line in large font.
Pads
- 8 velocity and pressure sensitive LED color pads
- 5 velocity curves plus fixed (adjustable)
- Note-learn, Chord-Learn and Pad Repeat
- Pads assignable notes and MIDI cc messages
- Load or Save to any of 8 pad maps
- Pad Bank button for access to another 8 pads
Connections
- 1/4” TS jack foot switch input (MIDI assignable)
- 1/4″ Expression pedal input (MIDI assignable)
- MIDI Out socket (cable not included)
- USB port on rear panel, and USB bus powered
Weight & Dimensions
- 82 cm (L) x 27.7 cm (D) x 8 cm(H), 6.4 kgs
System Requirements
USB class compliant (no driver needed)
Works with:
Windows XP, Vista, 7, 8, 10 or higher.
Mac OS X 10.5 or higher.
Linux with Bitwig or as USB class MIDI device. Firmware update required on either Windows or Mac OSX. Firmware not updateable on Linux.
Nektar DAW Integration: Windows Vista, 7, 8, 10 or higher. Mac OS X 10.7 or higher. Check Nektar DAW Integration documentation or marketing information for support of legacy DAW versions.
Nektarine 2.5: Windows 7,8,10 or higher. Mac OS X 10.7 or higher.
