IK Uno Synth Pro

Call For Price

SKU: N/A Categories: ,
FacebookTwitterPinterestLinkedin

Description

Next-Generation Analog for Everyone

UNO Synth Pro Series are expressive, new-generation synths having flexible modulation facilities, and powerful analogue sound. With triple-oscillator Paraphonic voicing, a unique dual state-variable filter stage, 256 preset memories, a 64-step sequencer, three studio-grade DSP FX engines, expanded connectivity and much more, UNO Synth Pro series break new ground! With two models available, each having identical synthesis functionality, there is an Uno Synth Pro model to suit your budget and desired form-factor.

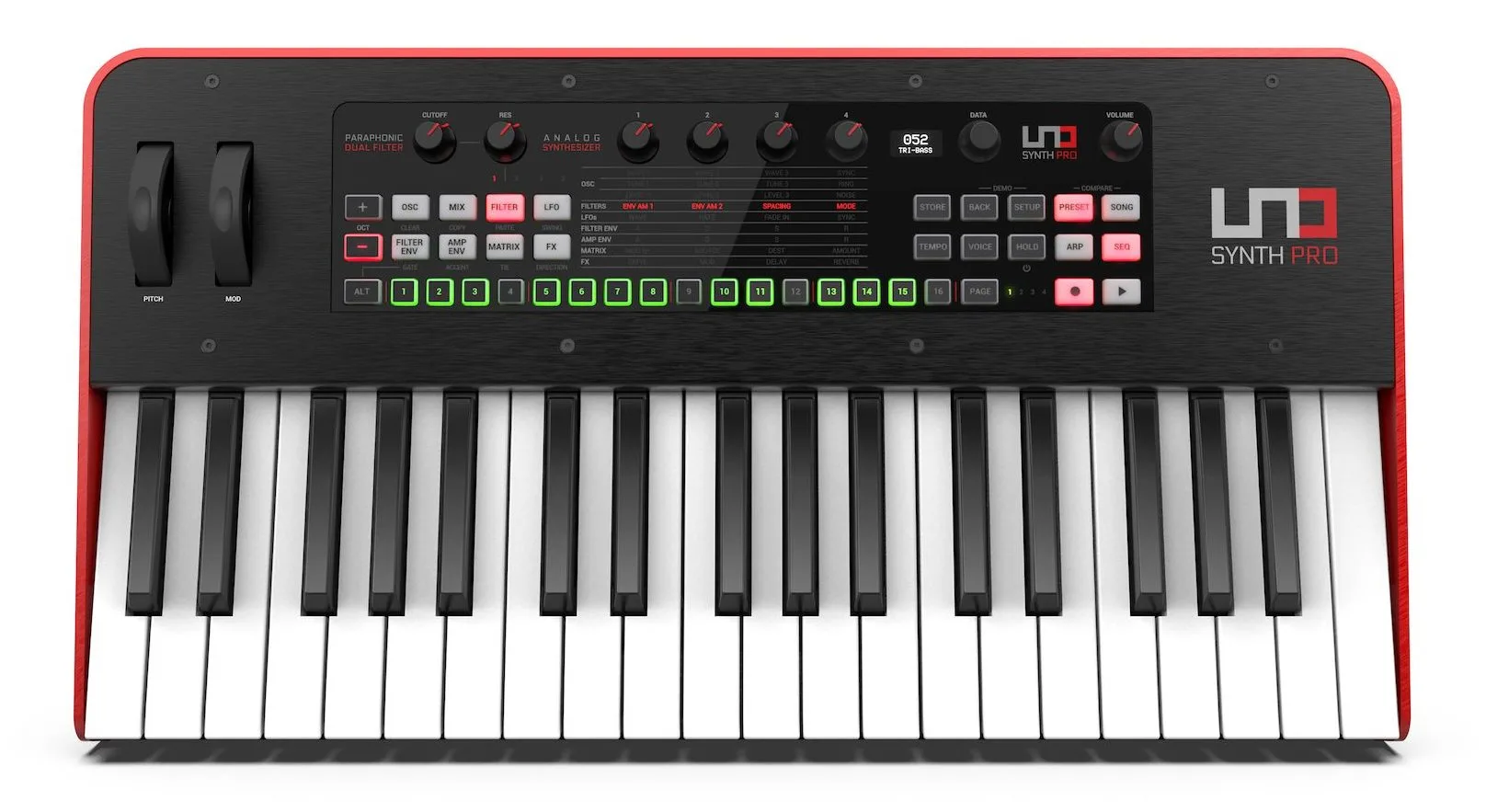

The full-sized UNO Synth Pro weighs in at 5.8 kg having a mainly-metal chassis, striking aesthetics and a high-quality, 37 note Fatar keybed (type TPS9) with Aftertouch sensitivity.

Also available is the backpack/wallet-friendly UNO Synth Pro Desktop module is a mere 0.7 kg with integrated capacitive-touch note triggers which may be powered via USB for on-the-go convenience.



Family Values

  • Huge real analog sound: three continuously variable waveshape oscillators with PWM, Oscillator Sync, FM and ring modulation
  • Dual filter design: a new SSI filter plus the original UNO Synth filter for 24 possible modes, including serial and parallel routing
  • Massive sonic flexibility: full ADSR envelopes + LFOs and modulation matrix
  • Powerful control: 256 User-writable preset memories, onboard arpeggiator and 64-step sequencer with automation
  • Onboard effects: 12 studio-quality effects in 3 simultaneous slots: modulation, delay and reverb, plus true-analog overdrive
  • Advanced connectivity: noiseless balanced outs; USB, MIDI and CV/Gate I/O; plus audio input to filters, effects or outputs



Three Analogue Oscillators

Building on the monophonic, two-oscillator design of the original, the Pro series has three discrete, continuous-waveshaping analogue VCOs with each VCO capable of PWM. Although it’s still a single-voice synth, the oscillators can operate in 3-note Paraphonic mode whereby the VCF/VCA and modulation resources are shared, and VCOs are allocated to separate notes.

Oscillators can be hard-synced for more harmonically-complex tones, and oscillator FM lets you create anything from bell-like sounds to screaming industrial tones. The VCO section also has ring modulation, and a white noise generator for a wide range of percussive sounds and epic rises. Recreate famous synth sound sources or forge entirely new ones – UNO Synth Pro has the tools you need!



Unique Dual Circuit State Variable Filter Stage

The characterful, two-pole OTA based multimode filter of the UNO Synth carries into the Pro series accompanied by an additional SSI based multimode filter capable of two-pole or four-pole operation. Unlike the original OTA filter, the new SSI filter circuit is capable self-oscillation at high resonance. In concert with different serial/parallel routing options and phase inverts, a total of 24 filter response combinations are possible extending the tonal pallet for the new UNO Synth generation.

In short, the UNO Synth Pro’s versatile filter stage will not only recreate classic vintage synth tones but provides the tools to forge new-generation sounds for today’s genres.



Envelopes, Filters and Modulation Matrix

UNO Synth Pro offers two four-stage ADSR envelopes normalled to the filter and amplifier. Both available as sources to modulate everything from oscillator pitch and waveshape to LFO speed or even other envelope stages. Dual LFOs provide classic synth vibrato, wah and tremolo, and do more complex modulations including audio-rate FM.

The 16-slot free-form Modulation Matrix makes the icing on the cake. You can quickly and easily design even the most sophisticated modulation scheme, with both internal and external sources, including MIDI controllers. The CV/Gate connections are even available within the available Sources/Destinations allowing easy integration of your favourite Eurorack modulation sources into your sounds. With such flexible modulation facilities on offer, this greatly extends the creative potential for realising intricate patches with plenty of opportunities for establishing organic movement.



Analogue Overdrive Stage and Stunning Onboard DSP FX Processors

Before the DSP Effect engines, the signal path features a true analogue drive circuit giving the ability to exaggerate harmonic overtones and bring out further sweets spots of the VCF stage.

Sculpt and finalise your patches with three simultaneous DSP FX blocks: Modulation, Delay and Reverb. Twelve studio-grade effects are on offer to experiment with and enhance your sounds. IK Multimedia has a long-established legacy as developers of DSP based effects in their plug-in range and the quality of these algorithms reflect this. The Ensemble effect is modelled on classic string machines (first appearing in IK’s Syntronik virtual instrument). Thus, in tandem with the 3-oscillator Paraphonic playback, convincing string machine patches can be easily realised. External signals can also be routed through these effects, with pre-effects filtering for maximum flexibility.

Analogue purists will be please to know that the DSP FX engine runs from sends. Thus, it is possible to preserve a completely analogue signal path from end-to-end.



Improved Playability and Enhanced User Interface Elements

UNO Synth Pro has a premium-quality 37-key synth-action Italian-Made Fatar keybed capable of generating Channel Aftertouch data and pair of dedicated Pitch and Mod wheels for enhanced expression.

You’ll find firm-touch rubber pads for the control sections, plus LED-backlit indicators and graphic LED display for navigating its user interface, making it easier than ever to use UNO Synth Pro live on stage or in deep programming sessions in the studio.



Presets, Sequencer and Arpeggiator

UNO Synth Pro offers 256 user-editable Preset memories which capture the full state of the sound engine.

An onboard 64-step sequencer offers both step and real-time recording, with automation for up to 40 parameters, letting you create incredibly intricate and evolving soundscapes. The Sequencer can even access the CV/Gate outputs allowing Uno Synth Pro to drive modular synth hardware.

Rather than working with a shared pool, Step Sequences are stored independently within each patch memory, and thus the unit can store an impressive 256 Sequences. Furthermore, a Song Mode allows linking Step Sequences via Preset memories, facilitating chained Sequences.

And a 10-mode arpeggiator makes it easy to create intricate patterns and runs plus a new Chord Mode that takes advantage of UNO Synth Pro’s paraphonic voicing.



Advanced Connectivity

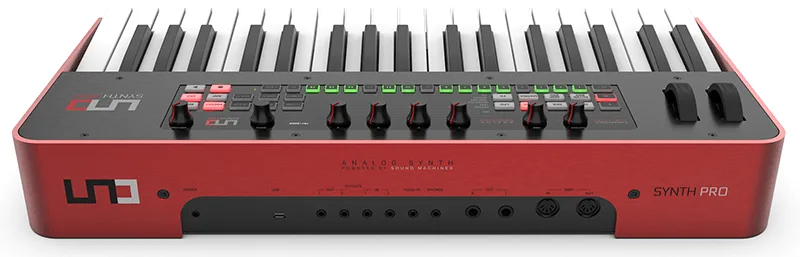

The UNO Synth Pro offers a pair of full-size 6.5mm balanced TRS sockets for low-noise stereo audio output. A Micro USB socket provides USB MIDI functionality with class compliance for simple connection to computers and mobile devices. Traditional full-sized 5-pin DIN MIDI In and MIDI Out sockets make it easy to integrate with traditional hardware synths and MIDI interfaces. A Soft-Thru function may be engaged for the MIDI Output for daisy-chaining additional MIDI devices.



If you’re looking for a convenient keyboard to play your Eurorack modular rig, the UNO Synth Pro series will serve as a capable controller thanks to the inclusion of a pair of 1/8″ CV/Gate Outputs. The pair of 1/8″ CV/Gate Inputs allow the synth engine from sequencer modules within your modular. Better still, you can make use of your favourite CV modulation sources to feed into its Modulation Matrix. Since the Modulation Matrix assignments are stored on a per-patch basis, the role you allocate to the CV/Gate outputs and inputs is not a global setting – instead, it is localised for each patch.

The Audio input allows access to the filter and FX section for external signals, or simple pass-through mode for daisy-chaining multiple units together without using a mixer.



SPECIFICATIONS

Physical Attributes:

  • Compact, stage-ready 37-key keyboard
  • Fatar synth-action keys with Aftertouch response
  • Size (W x D x H): 55 x 30 x 7 cm
  • Enclosure: Metal/plastic
  • Weight: 5.8 kg
  • Power: Power PSU

Synthesis Engine

  • 3 discrete wave-morphing oscillators
  • PWM, sync, FM and ring modulation
  • Dual state-variable filters with 24 modes
  • Original UNO Synth OTA filter
  • New SSI-based filter with self-oscillation
  • 16-slot modulation matrix
  • 256 user-editable presets
  • 12 studio-quality FX in 3 slots (Reverbs, Delays, Modulation)
  • 64-step sequencer with 84 parameters
  • 10-mode onboard arpeggiator

Connections

  • Micro USB (MIDI communications only)
  • MIDI In, MIDI Out (5-pin DIN)
  • CV/Gate inputs (1/8″ TS)
  • CV/Gate outputs (1/8″ TS)
  • Audio Output: pair of balanced sockets (1/4″ TRS)
  • Audio Input: single stereo socket (1/8″ TRS)
  • Headphone Output: stereo socket (1/8″ TRS)

Package Contents

  • UNO Synth Pro
  • Micro USB to USB Cable
  • Power Supply Unit
