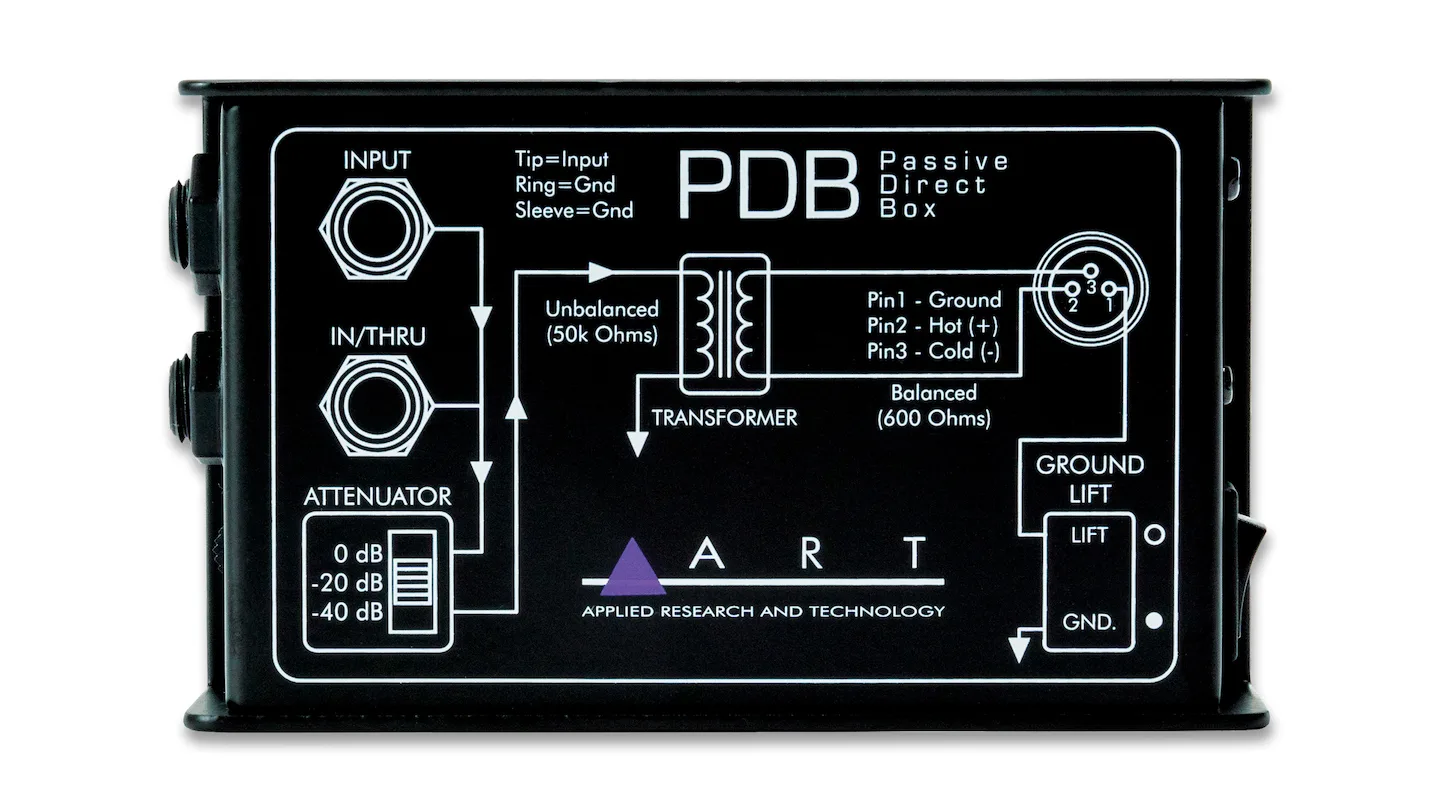

The PDB™ Passive Direct Box is a rock solid, roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs.
The PDB™ also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.
- Electric guitar and bass pick up output signals – The high impedance signal from a guitar or bass guitar pickup is translated by the PDB™ into a low impedance balanced signal required by mixing consoles.
- Keyboards and line level signals – The PDB™ automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards are all plugged into a single instrument amplifier, the PDB™ can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the PDB™ and then to the console (instead of a separate DI box for each keyboard).
- DJ console output signals – DJ mixers often supply only an unbalanced -10dB signal. The PDB™ converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
- Speaker level signals – The PDB’s ability to accept speaker level inputs from a power amplifier’s output allows post-amplifier, post eq and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
|Frequency Response||10 Hz – 50 kHz +/- 0.5dB @ +4dBu|
|Output Connections||600 Ω XLR Output Jack|
|Input Attenuation||Switchable (0dB, -20dB, -40dB)|
|Instrument Input||50k Ω|
|Parallel Link Jack||50k Ω|
|Dimensions||3″ x 5″ x 2″|
