ART BT-DI

Stock: In stock

Bluetooth Direct Box With Isolated Outputs

$349.95

SKU: ARTP_BTDI

Details

Make your professional audio devices Bluetooth compatible with the ART BT-DI,  a rugged and flexible Bluetooth Audio DAC.   The BT-DI is designed to provide a reliable Bluetooth interface from computers, phones, and legacy  Bluetooth devices to any installation.  Working as a remote extension of your mixer and mic outputs, the BT-DI utilises phantom power, so an external power supply is not required.

  • Bluetooth 5.0 receiver
  • External antenna for long-range operation

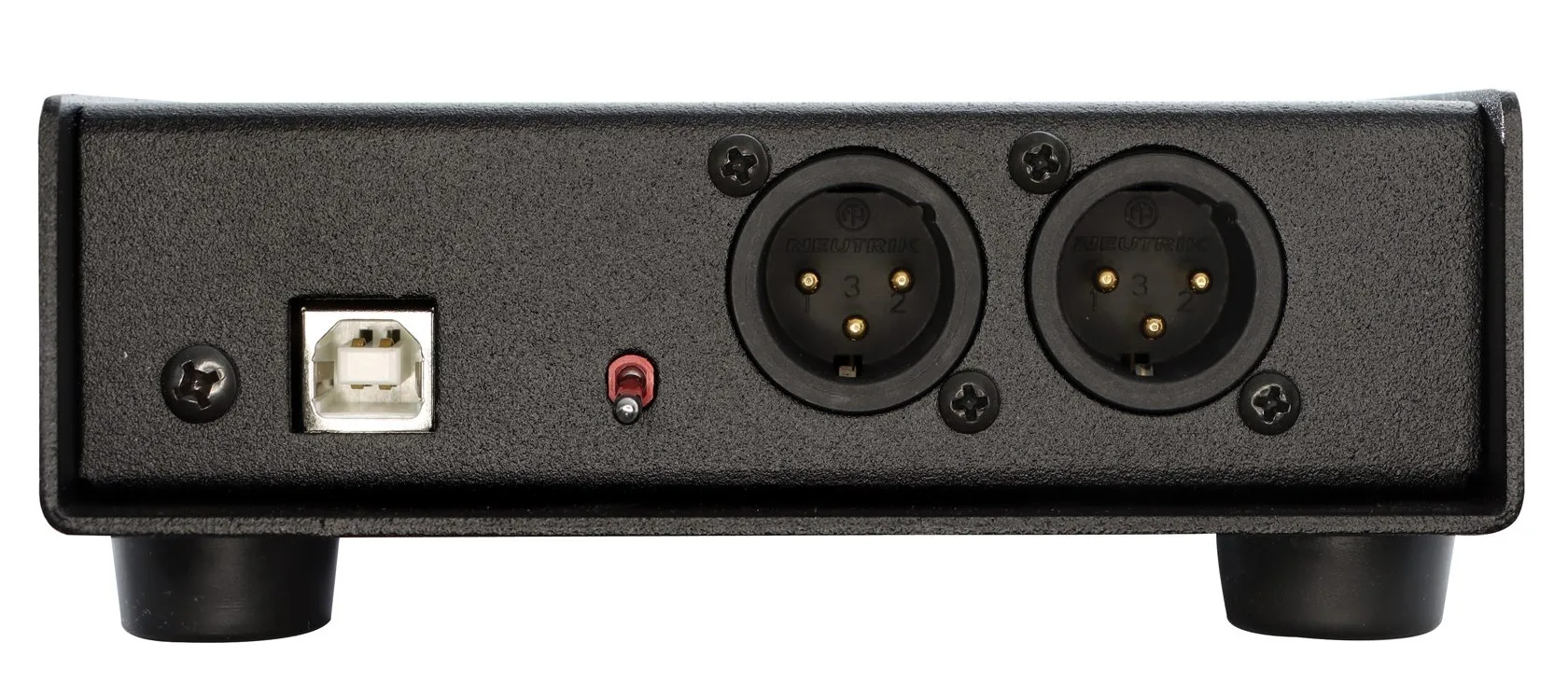

  • Transformer isolated XLR outputs

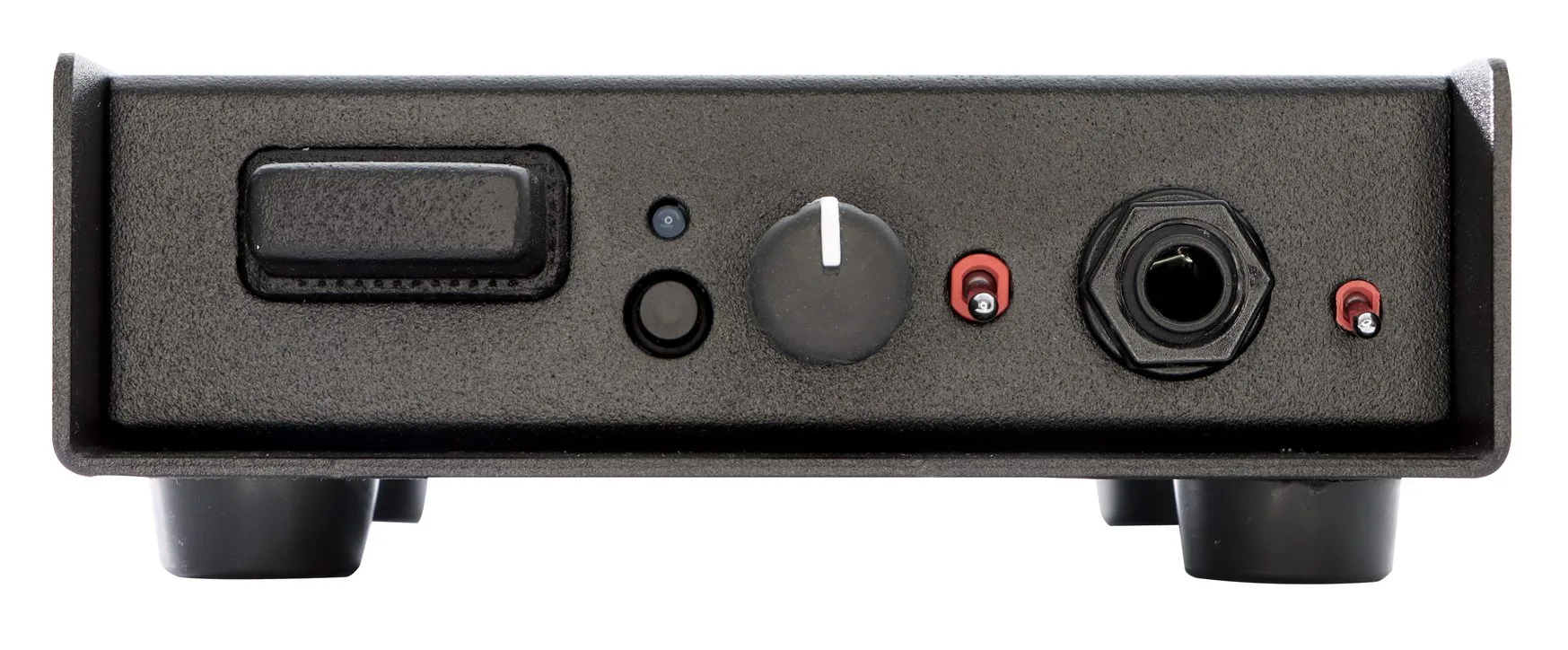

  • Headphone out
  • Selectable fixed/external USB supply OR Phantom Power
  • Headphone can be summed Mono
  • Compact rugged package, extruded chassis
  • Designed and developed in the USA

Specifications

Main Output Connections XLR (2) main output, transformer coupled, switchable ground.
Main Output Impedance 300 Ohms.
Maximum Output Level 30 dBu balanced Main output, 0 dBu Headphone output.
Signal to Noise Ratio -90dB unweighted typical.
THD <0.05% typical
Bluetooth Version 5.0, up to 50m, Class 2 device (BDR/EDR)
Supported Audio CODEC’s SBC, AAC
Power Requirements  5V USB (80ma) or +48V Phantom power w/both XLR’s
connected.
Dimensions (HxWxD  36 x 126 x 140 mm
Weight  0.91 kg
