ART DJPRE II

Stock: In stock

Phono Amplifier

$149.99

SKU: ARTP_DJPRE-2F

Details

The DJ PRE II acts as an interface between your turntable and your audio recording / playback system. The analogue input capacitance can be switched between 100pF and 200pF to optimize your phono cartridge response. A switchable low cut filter removes turntable rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimise the preamp’s gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The line output jacks are low impedance and can be used with any sound card.

BEST BUDGET PHONO PREAMP OF 2022 – Popular Science

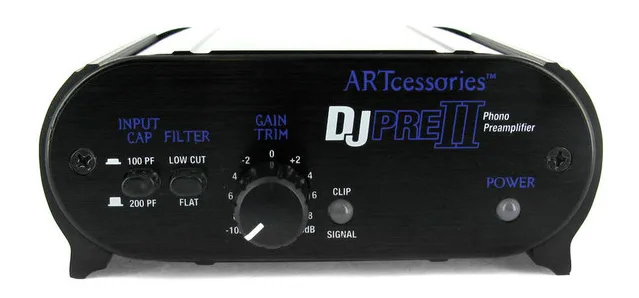

“Perhaps its most exciting feature is a low-end roll-off switch that cuts some of the boominess from older distorted vinyl, or a turntable’s drive rumble, without cutting much out of the mix. On the front of the device, there’s a centrally located gain knob (up to +10 dB), with a convenient clip indicator, as well as the low-cut switch and input cap button. It’s a lot of features for such a good price.”

Housed in an all aluminium, black anodised case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package.

Key Features

  • High accuracy/low noise preamp
  • Switchable low cut rumble filter
  • Variable preamp gain
  • Signal present/clip indicator
  • Selectable cartridge loading
  • RCA preamp outputs
  • Heavy duty extruded chassis
  • Designed and developed in the USA

Specifications

Frequency Response  10Hz -50KHz, +/-.5dB
Phono EQ Standard  Conforms to RIAA Curve
Total Harmonic Distortion  .01% Typical @ 1kHz
Hum and Noise  > 90dB below clipping
Input Impedance  47k Ω in Parallel with Either 100pF or 200pF
Maximum Input Level  40mVrms @1kHz
Maximum Gain  45dB @1KHz

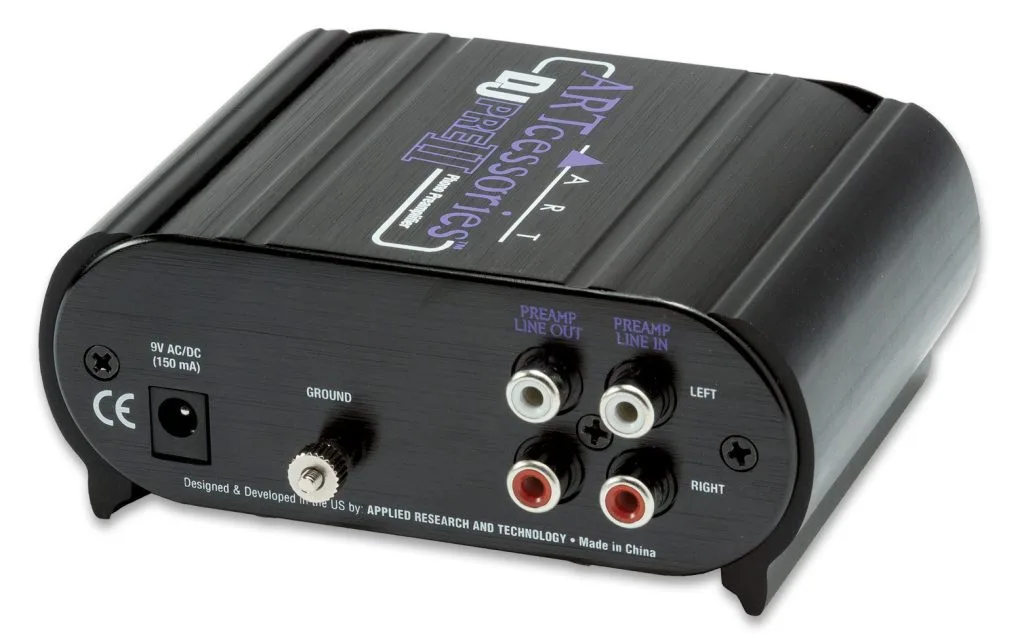

In / Out Connections  RCA
Maximum Output Level  +6dBu (1.4Vrms)
Filter Type/Response  Switchable, Low Cut, -3dB @ 22Hz
Power Requirements  7-12V DC or 9-12V AC @150mA
Dimensions  47mm x 117mm x 114mm
Weight  0.57kg
