16 Point XLR Balanced Patch Bay



Ideal for any live PA rack, studio rack or fixed installation where easy access to XLR inputs are required, the P16 brings all rear-mounted XLR inputs from various devices to one, convenient single space rackmountable location. The P16 saves wear and tear on the connectors of expensive audio equipment by bringing all commonly used connections to the external patch bay.
All-steel chassis, black anodized finish and secure, high-quality XLR connections front and back with internal connections made via PCB wiring ensure long term reliability from the passive ART P16 Balanced XLR rackmount patch bay.

  • 16 channels of balanced direct signals
  • High quality passive interface

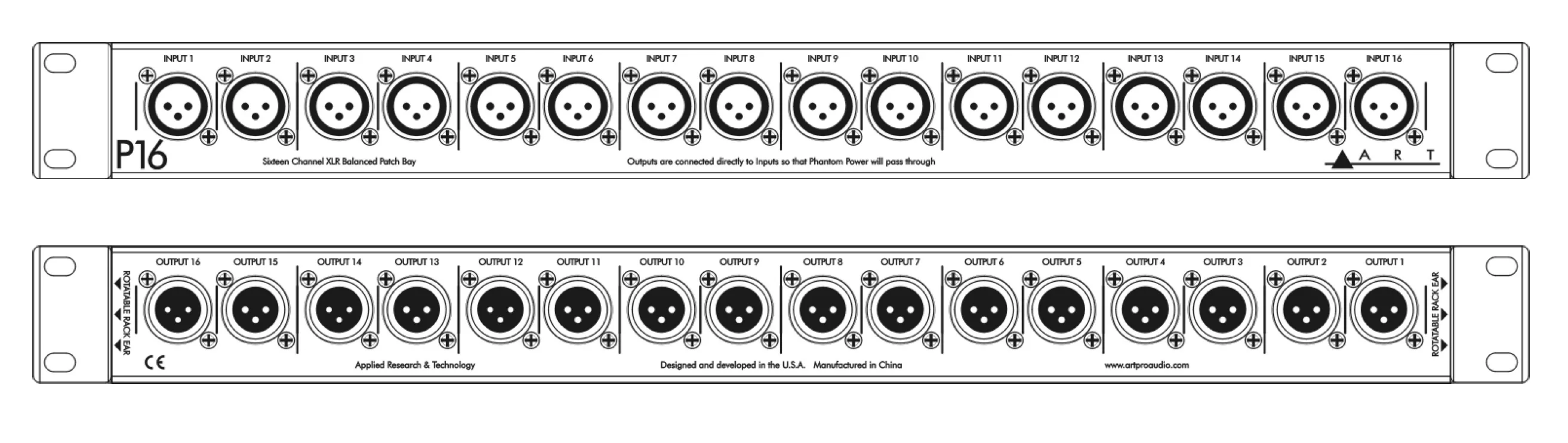

  • XLR connectors (female on front, male on rear)
  • All connections made via reliable PCB wiring
  • 19-inch 1U-high rack mount with rugged, fully shielded black all-steel enclosure
  • Reversible rack ears for added system flexibility
  • 3-year warranty


Connectors Balanced XLR (female front, male rear)
CMRR > -95 dB (typical)
Channel to Channel Isolation > -95 dB (typical)
Enclosure Steel 1U high, 19-inch rack mount
Dimensions 44mm x 483mm x 89mm
Weight 1.4 kg
