The first fully integrated live mixing console by Waves
64 stereo channels. 44 busses. 16 Waves Signature Preamps. Industry-leading sound & processing. Now in a classic console form factor.
The LV1 Mix Engine: Pristine Clarity. Maximum Headroom.
eMotion LV1 Classic boasts a double-precision 32-bit float mix engine that delivers unmatched clarity and headroom at sample rates of 44.1–96 kHz. Renowned in the live sound industry, the proprietary LV1 mix engine leverages Waves’ Tech Grammy®-winning expertise in digital signal processing to deliver industry-leading sound quality.

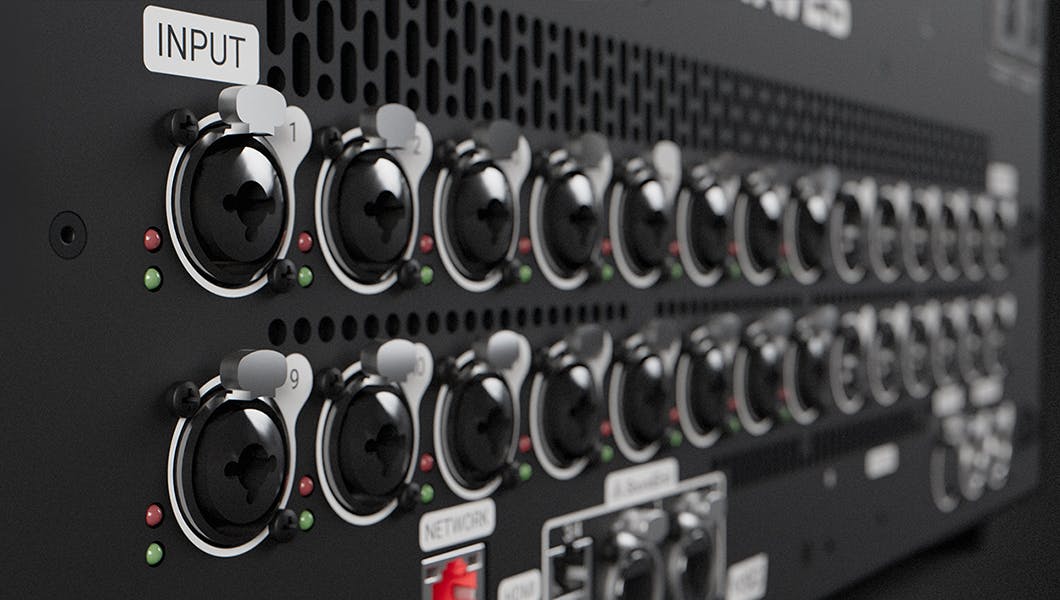

Powered by Waves Signature Preamps
LV1 Classic’s 16 inputs are powered by original-design, digitally controlled Waves Signature Preamps. With fully discrete analog circuits, these pristine preamps deliver maximum clarity and headroom, an incredibly low noise floor, and lightning-fast transient response. The added HMX feature allows you to choose between pure transparent preamp sound and rich harmonic enhancement per input.
The Live Sound Industry’s Deepest Processing
LV1 leverages Waves’ Grammy-winning digital processing to deliver live sound processing capabilities that are unmached in the live sound market. With 16 powerful processors included in the console, plus the industry’s most extentsive processing upgrades, all available on every single channel, LV1 has the deepest processing of any live sound console, anywhere.

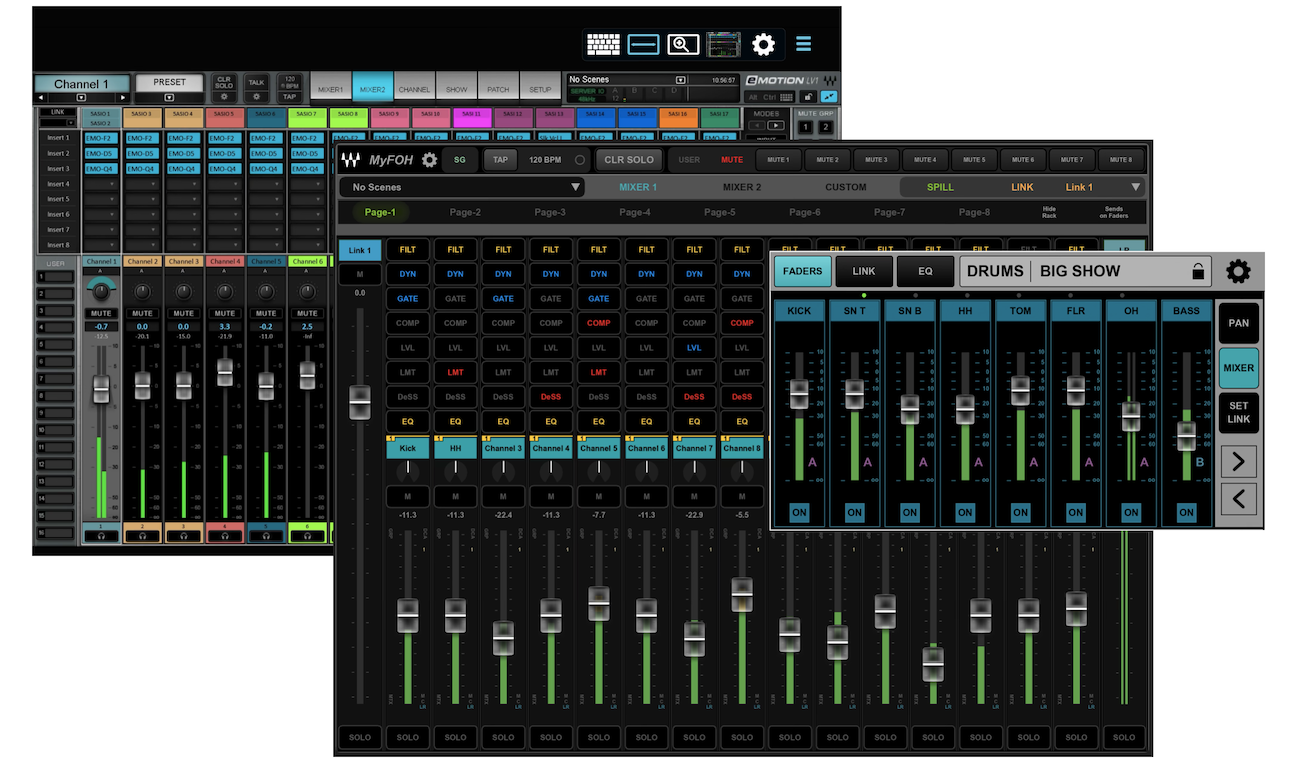

Control the Console from Anywhere in the Venue
LV1’s remote apps allow control of LV1’s functions from anywhere in the house and from the stage. MixMirror gives you full remote control over your mixer & plugin settings from an iPad by mirroring the LV1 screen. MyFOH offers independent iPad control of the mixer levels, panning and sends from anywhere in the venue. MyMon gives performers mobile control over their own monitor mixes.
Key Features:
- 64 mono/stereo input channels
- 44 mono/stereo busses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
- Double Precision 32-bit floating point mix engine (44.1–96 kHz)
- Latency as low as 0.8 ms
- 21.5” multi-touch screen with 1000 Nit brightness
- 16+1 motorised 100 mm Alps faders
- 16+1 precision encoders, with mini-displays including per-channel LCD metering
- Select/Mute/Solo keys per channel
- 16 layers with utility keys and tempo pad
- 16+2 user-customisable shortcut keys
- 16 Waves Signature Preamps with mic/line inputs
- 12 line outputs, 2 AES3 outputs, AES3 SRC input
- Internal ultra-low-latency Waves SoundGrid DSP engine handles processing
- Add more I/O: Up to 14 SoundGrid-compatible devices, including Dante and MADI convertors
- Add up to 3 processing servers and 4 backup servers
- 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
- 8-slot rack hosts 8 plugins per input channel + all mix channels

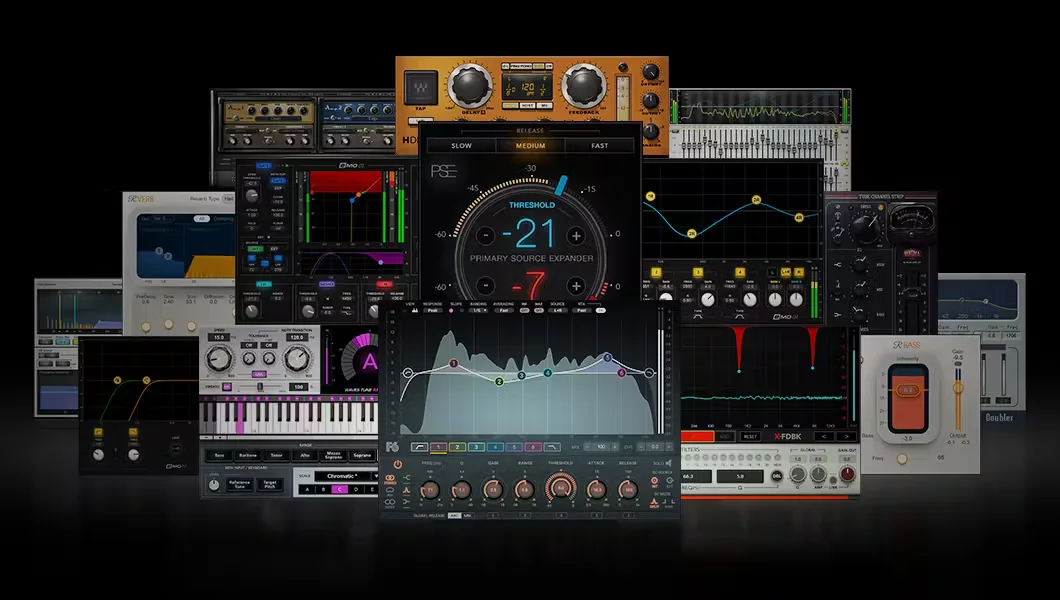

- Plugins included with the console:
- F6 Dynamic EQ
- Waves Tune-Real Time
- eMo Q4 EQ
- eMo D5 Dynamics
- eMo F4 Filter
- GEQ 30-band EQ
- X-FDBK Feedback Eliminator
- PSE (Primary Source Expander) Mic Bleed Reduction
- Renaissance Compressor
- Renaissance Bass
- Doubler
- H-Delay
- Renaissance Reverb
- TrueVerb
- Magma Tube Channel Strip
- GTR3
- 160 additional award-winning Waves plugins available as upgrades
- Immersive in-ear mixing available as software upgrade (eMo IEM)
- Dugan auto-mixing available as software upgrade
- Custom options for mixing layout
- Intuitive control over each channel’s parameters
- Patch system-wide connections
- Custom colors per channel
- Unicode multi-language support
- Up to 1000 scenes with Recall Safe and Scope Filters
- 8 Mute groups and 16 Link DCAs with Spill function
- Digital preamp control with local V-Gain tracking for sharing
- Multiple outputs per channel with delay alignment controls
- Record 16 tracks locally to USB / 128 tracks to remote computers
- Stereo playback from USB
- Remote control apps for mobile & tablet, for both FOH and stage
- Size: 560 mm x 402 mm x 561 mm
- Weight: 17.2 kg
