Waves DSPRO StageGrid 1000

Stock: In stock

The new DSPRO StageGrid 1000 is a compact, SoundGrid-based audio interface component intended for seamless integration with eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more I/O at FOH or monitors, within touring stage racks to provide convenient I/O for performers or to distribute additional I/O around an existing SoundGrid-based studio facility.

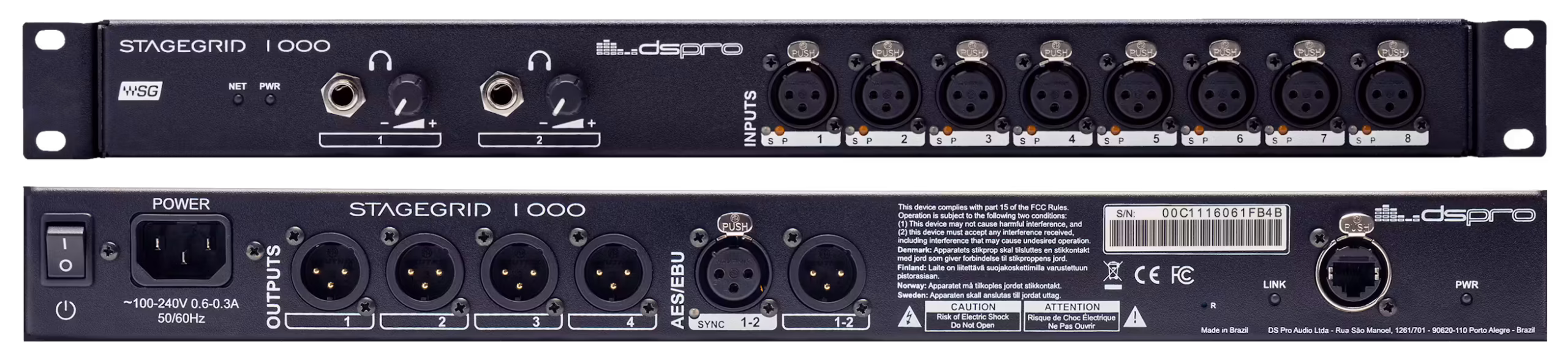

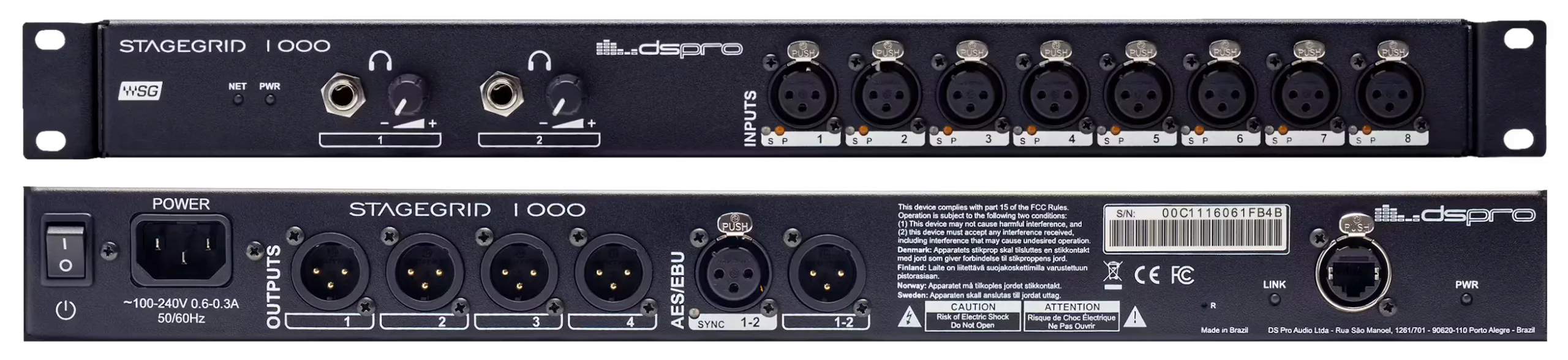

This rugged, single-unit rack delivers eight digitally-controlled mic/line inputs, four balanced analogue outputs, AES/EBU stereo I/O with no-compromise sound quality and rock-solid reliability. It features the same audio interface engine found in the larger DSPRO StageGrid 4000, making it perfect for demanding live mixing environments.

It interfaces with the modular SoundGrid audio networking ecosystem and thus will seamlessly integrate with SoundGrid hosts, DSP servers and compatible I/O components with ease. Just connect it into your SoundGrid dedicated network switch via a simple ethernet connection, and it will immediately appear available for patching within your host without any further configuration.

Contact Dealer for Pricing

SKU: WVES_DSPSGRD1000

Details

The new DSPRO StageGrid 1000 is a compact, SoundGrid-based audio interface component intended for seamless integration with eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more I/O at FOH or monitors, within touring stage racks to provide convenient I/O for performers or to distribute additional I/O around an existing SoundGrid-based studio facility.

This rugged, single-unit rack delivers eight digitally-controlled mic/line inputs, four balanced analogue outputs, AES/EBU stereo I/O with no-compromise sound quality and rock-solid reliability. It features the same audio interface engine found in the larger DSPRO StageGrid 4000, making it perfect for demanding live mixing environments.

It interfaces with the modular SoundGrid audio networking ecosystem and thus will seamlessly integrate with SoundGrid hosts, DSP servers and compatible I/O components with ease. Just connect it into your SoundGrid dedicated network switch via a simple ethernet connection, and it will immediately appear available for patching within your host without any further configuration.

SoundGrid is the rock-solid, scalable audio distribution infrastructure by Waves, capable of streaming multichannel audio at sample rates up to 96kHz with ultra-low latency whilst leveraging the entire catalogue of Waves Plug-ins in a live production context.



TECHNICAL SPECIFICATIONS

General

  • 8 x Analog mic/line inputs
  • 4 x Analog line outputs
  • 1 x Stereo AES/EBU Digital input
  • 1 x Stereo AES/EBU Digital output
  • 2 x headphone outputs
  • 1 x SoundGrid Ethernet port
  • Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz

Analog Inputs

  • Impedance: 2.86kOhms
  • Gain range: -4dB to 60dB
  • Max input level: 28dBu (-4dB gain)
  • Dynamic range: 115 dB (-60dBFS, 20dB gain, 1kHz, A-weighted)
  • THD: 0,002 % (-1 dBFS, 20dB gain, 1kHz, A-weighted)
  • Equivalent input noise: -128dBu (60dB gain, A-weighted, 150 ohms)
  • Frequency response: +/- 0.1 dB (20Hz to 40kHz at 96kHz sampling rate)
  • Phase Shift: <10° at 20Khz

Analog Outputs

  • Output impedance: 50 ohms
  • Max output Level (0dBFS): 24dBu
  • Dynamic range: 115 dB (-60dBFS, 1kHz, A-weighted)
  • THD: 0,002 % (-1dBFS, 20dB gain, 1kHz, A-weighted)
  • Frequency response: +/-0.1dB (20 to 40kHz at 96kHz)
  • Phase shift: <5° at 20Khz

AES/EBU IN/OUT

  • Standard: AES3 (2009)
  • Sample rates: 44.1, 48, 88.2, 96kHz
  • Impedance: 110 ohms

Headphones

  • Output Power: 150mW per channel on 16 ohms
  • Dynamic range: 100dB

SoundGrid

  • Interface: Gigabit Ethernet
  • Connector: Neutrik EtherCON

Power supply

  • Voltage: 110/240VAC
  • Frequency: 50Hz or 60Hz
  • Power: 60W

Environmental specifications

  • Operating temperature: 0°C – 40°C
  • Relative humidity: Up to 90% non-condensing

Dimensions

  • Height: 44mm / 1.75” (1RU)
  • Width: 430mm / 19.92” (for 19” rack)
  • Depth: 300mm / 11.81” (not including connectors)
  • Weight: 2.89 Kg

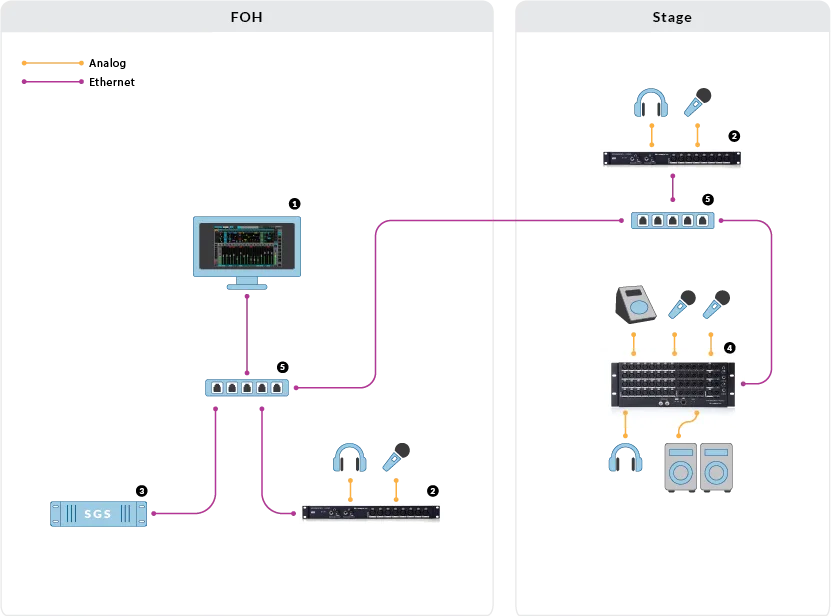

EXAMPLE SETUP

In this setup diagram, on-stage instruments/microphones/headphones connect directly to the StageGrid 4000 and StageGrid 1000 units (with full remote control of all settings from the LV1 mixer located at FOH). An additional StageGrid 1000 is connected at FOH to provide the engineer with headphone outputs and talkback microphone inputs. Incoming audio is processed on a SoundGrid Server and then outputted to the stage-monitors, performer’s headphones, PA system, and FOH headphones.



LEGEND

1. Host computer running the eMotion LV1 mixer (see system requirements)
2. DSPRO StageGrid 1000 I/O unit
3. SoundGrid Server (add a second server for processing redundancy)
4. DS Pro StageGrid 4000 stagebox
5. SoundGrid-qualified network switch

For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
