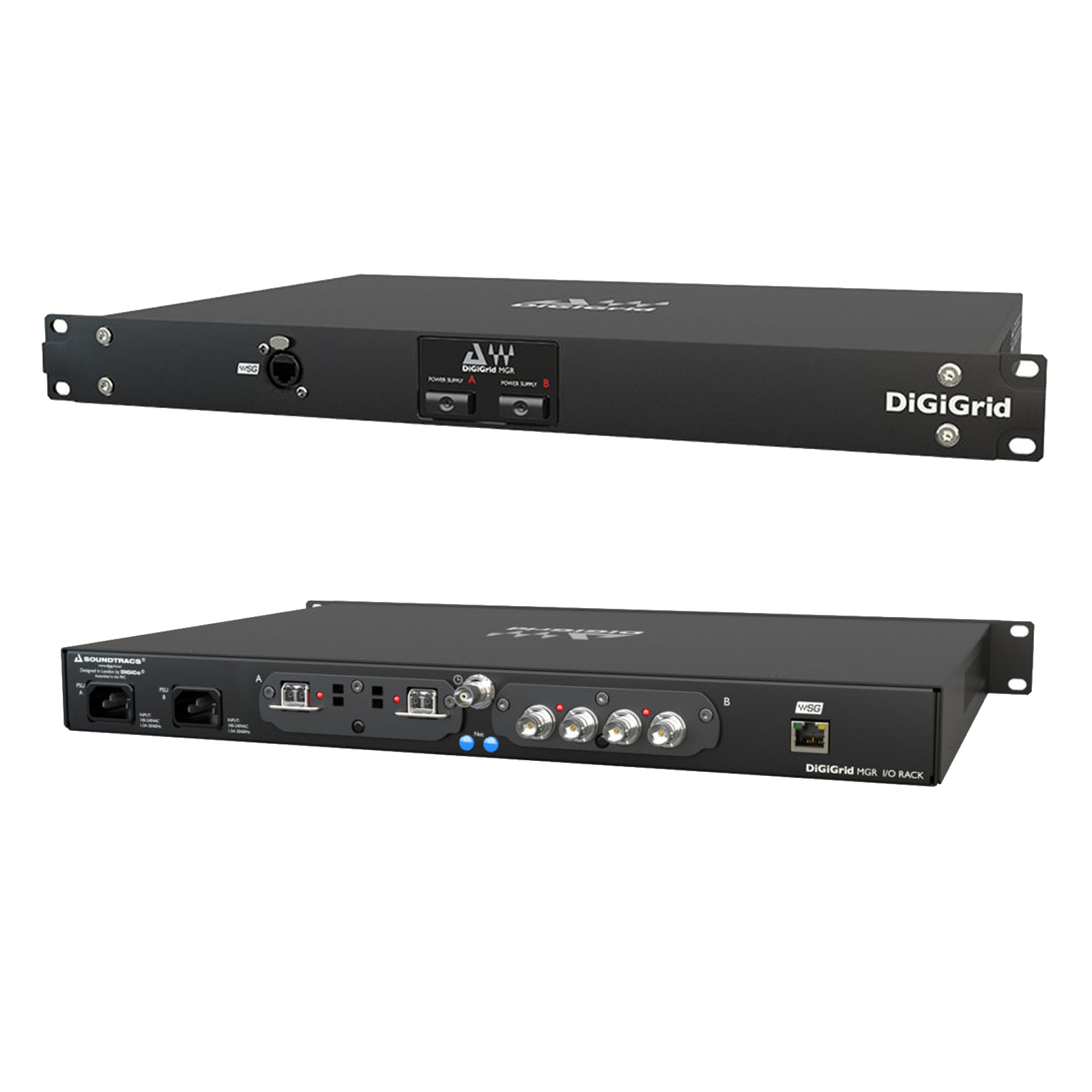

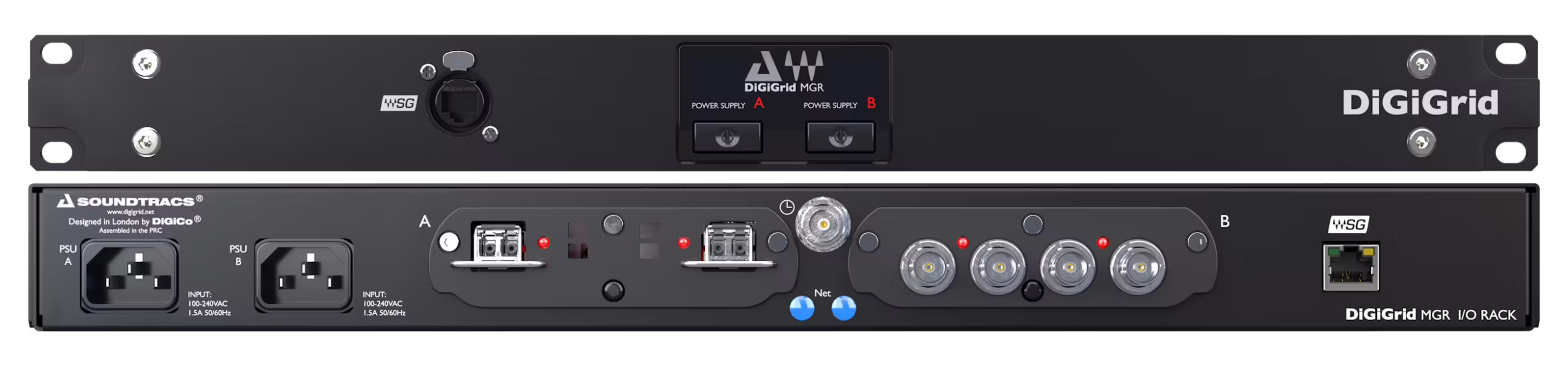

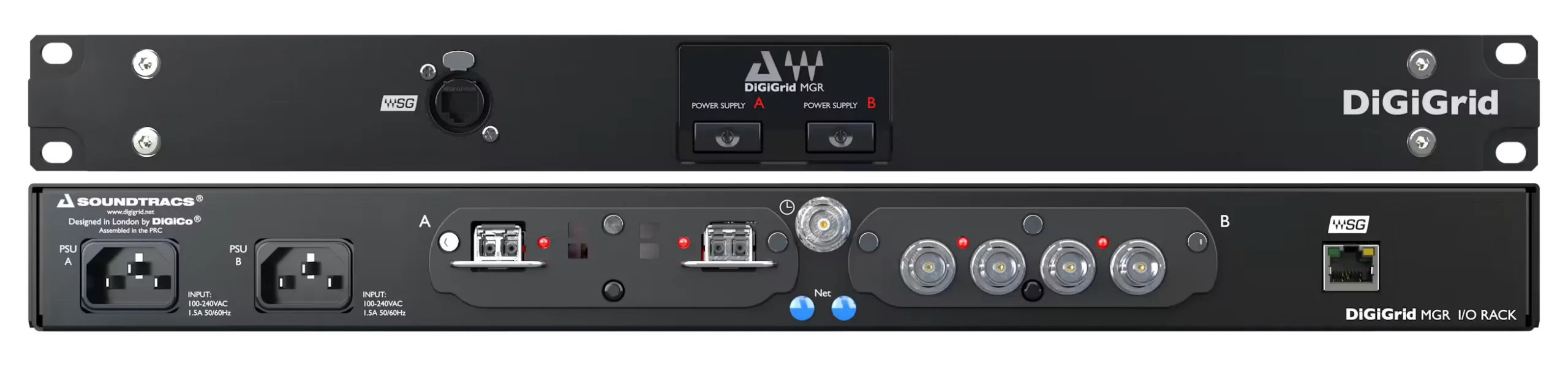

DiGiGrid MGR
The ultimate quad MADI recording interface
The DiGiGrid Rackmount Quad MADI Interface allows you to record up to 128 channels at 96kHz. Expanding on the DiGiGrid MGB and MGO interfaces, the MGR broadens the MADI range. Housed in a 1U chassis and offering redundant power supplies and a built in switch, the MGR is ideal for all high channel count high sample rate MADI recordings.
The MGR ships as a Quad BNC MADI Interface, but users can fit optional Optical MADI cards allowing complete compatibility with any MADI console in any environment.
The built in network switch provides both front and rear mounted SoundGrid ports, making redundant recordings possible without any additional hardware, or use the extra SoundGrid network port to connect additional DiGiGrid Interfaces. And for mission critical and broadcast applications, the dual redundant PSUs ensure uninterrupted operation and guaranteed performance.
-
1U rackmount
-
Quad MADI to SoundGrid interface
-

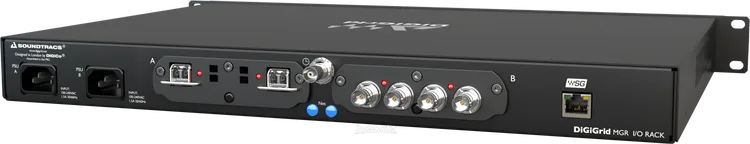

Fitted with dual BNC MADI (MGB) I/O Modules as standard. Optional MGO module for Optical MADI support.
-
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
-
Built-in SoundGrid network switch
-
2 SoundGrid Ethernet ports (RJ45)
-
Support for 64 and 56 channel modes
-
Support for double wire (48k frame) and single wire (96k frame) @ 96kHz
-
224/256 channel I/O @ 48kHz (Recording and playback of more than 128 channels at 48kHz requires a second computer.)
-
112/128 channel I/O @ 96kHz
-
Clock Synchronisation via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SOE), Internal
-

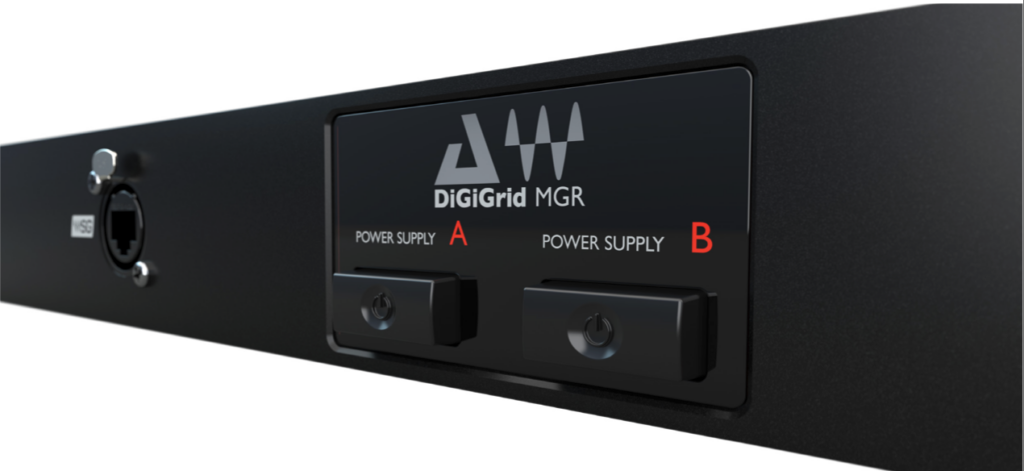

Dual AC input power supplies with redundant operation
