Description

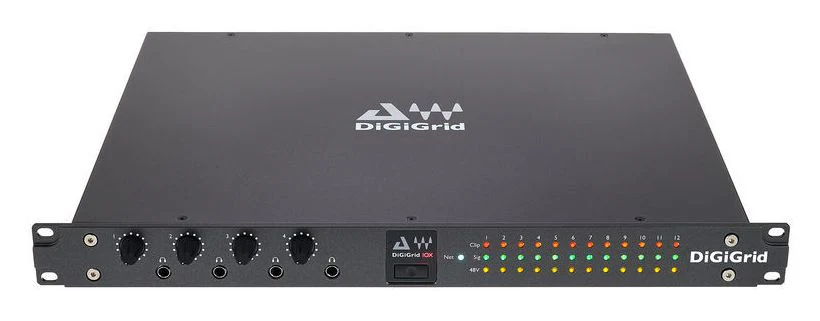

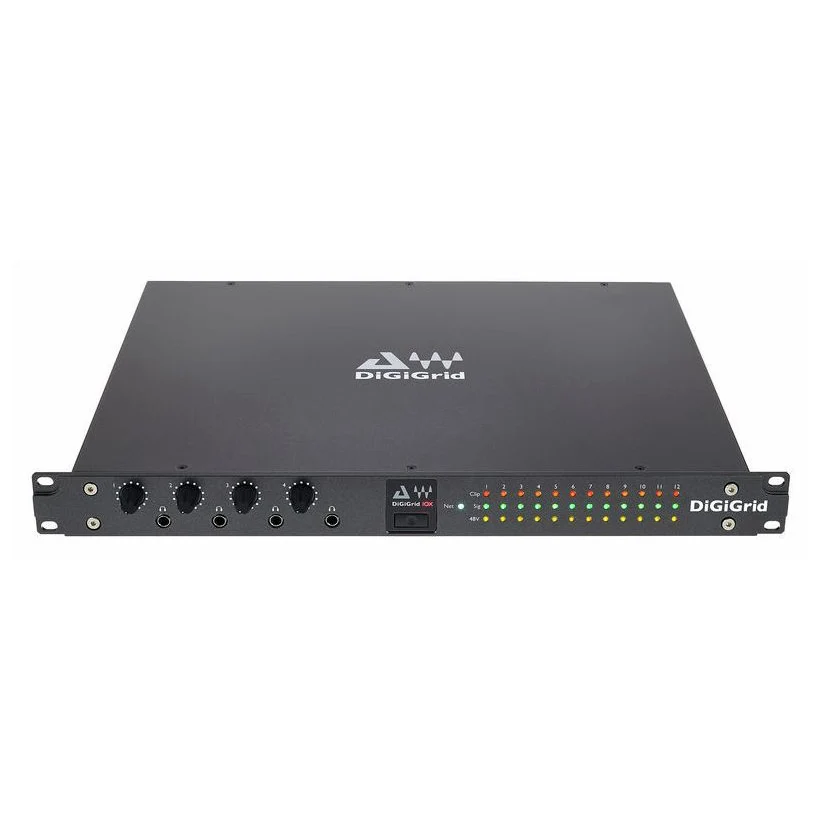

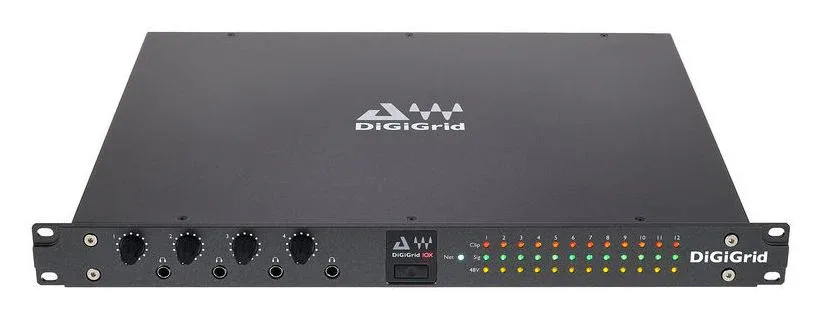

The DiGiGrid IOX advanced audio interface delivers high-resolution monitoring in the studio and control room alike, with 12 mic/line inputs that feature broadcast/studio-quality preamps, 6 line outputs, and 4 powerful headphone outputs to provide independent mixes for each musician.

Connect the IOX to a SoundGrid server, and run up hundreds of SoundGrid-compatible plugins with ultra-low, 0.8 millisecond latency—all integrated in your DAW of choice.

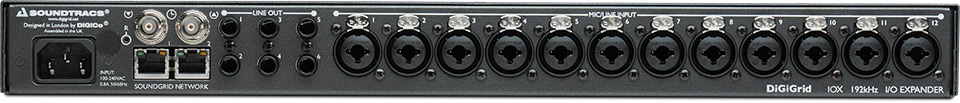

It offers a generous twelve analogue mic/line inputs (XLR/TRS combo sockets) equipped with DiGiCo pre-amps, six analogue line outputs (TRS sockets), word-clock on BNC connectors, dual SoundGrid network ports, and four powerful independent headphone outputs. Ideal for studio, broadcast, streaming and live sound applications, the IOX delivers rock-solid performance and the same exceptional audio quality befitting its DiGiCo pedigree.

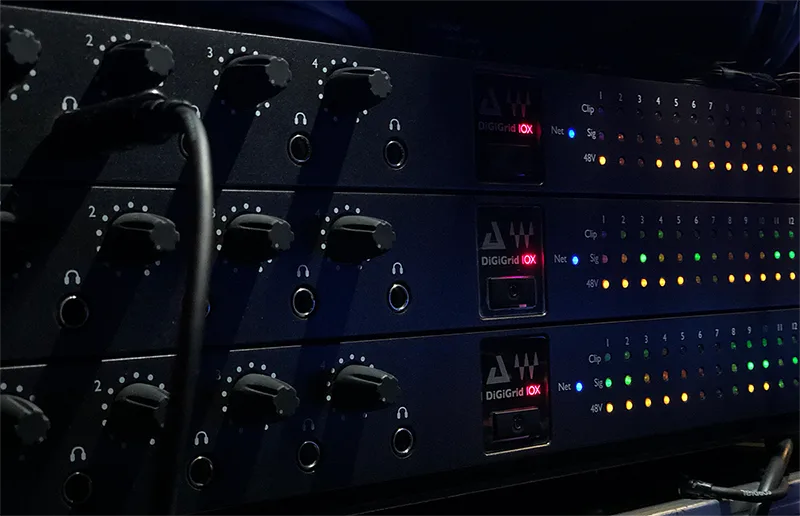

For Live sound applications, the DiGiGrid IOX is ideal to serve as the I/O for your FOH booth based around the Waves eMotion LV1 digital mixing system. Thanks to the flexibility of SoundGrid, effortlessly add multiple IOX units or other DiGiGrid audio interfaces or other SoundGrid-compatible devices with generous cable run lengths and latency as low as 0.86ms!

KEY FEATURES

• 12 mic/line inputs with premium preamps
• 6 line outputs
• 4 headphone outputs
• Sample Rate: 44.1kHz / 48kHz / 88.2kHz / 96kHz
• Internal Latency: 0.8ms
• Connects via a single Ethernet cable
• Quick-view front panel input metering
• High-definition AD/DA conversion
• 1U Rackmount unit
• Compliant with the SoundGrid Studio ASIO/Core Audio driver

AUDIO INPUT SPECIFICATIONS

• Impedance – Mic: 2K5 / Line: 8K0 Ohms
• Gain Range – Mic: -20dB to +60dB in 0.5dB steps / Line: -30dB to +50dB in 0.5dB steps
• Maximum Input Level – Mic: +26dBu / Line: +36dBu
• Mic Equivalent Input Noise: > -126 dB (150 Ω source, Gain +60dB)
• Harmonic Distortion: Typically <0.01% @ unity gain, 10dB input @ 1kHz
• Frequency Response: +/-0.5dB (20Hz to 20kHz)
• Channel Separation: Better than 90dB (40Hz to 15kHz)

AUDIO OUTPUT SPECIFICATIONS

• Maximum Output Level: +22dBu
• Residual Output Noise: <90dB (20Hz to 20kHz)
• Frequency Response: +/-0.5dB (20Hz to 20kHz)
• Output Impedance: 50 Ω
• Channel Separation: Better than 90dB (40Hz to 15kHz)
• Harmonic Distortion: Typically <0.01% @ +10dB output @ 1kHz
