Details
The USBMIX6 Microphone, Instrument, and Line Mixer/Computer Interface is a compact versatile audio interface for your computer. The built-in low latency stereo digital effects add to the versatility, with presets for enhancing vocals, instruments or your overall mix. It can also be used as a standalone mixer through the main mix outputs. The mixer provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.
Use the USBMIX6 to record podcasts, capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a friend – whenever and wherever your creativity takes you!
The USBMIX6 Key Features:
- High Performance Low Noise Design
- Six Discrete Inputs (2 x Combi-Mic / 2 x Stereo Line Level)
- Switchable +48v Phantom Power (CH1 & CH2)
- High and Low EQ on Each Input Channel
- Integrated Stereo Multi-FX with Adjustable Send & Return
- Stereo LED Metering
- Independent Level Controls for Main and Headphone/Monitor Outputs
- Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
- All steel, black finish

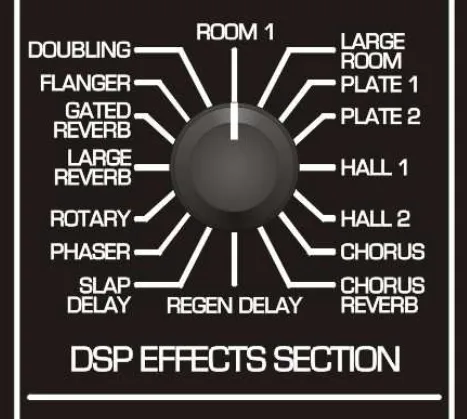

Built-in DSP Effects:
- ROOM
- LARGE ROOM
- PLATE1
- PLATE2
- HALL1
- HALL2
- CHORUS
- CHORUS/REVERB
- REGEN/DELAY
- SLAP/DELAY
- PHASER
- ROTARY
- LARGE REVERB
- GATED REVERB
- FLANGER
- DOUBLING
A USB Type-A to co-axial power cable is included
Specifications
| Input Connections | XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2) ¼-inch TRS Balanced (CH3 & CH4) RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L & R) |

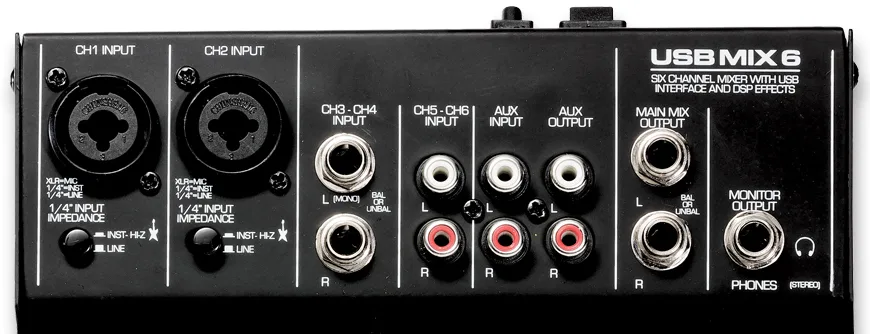

| Output Connections | ¼-inch TRS Balanced Main Mix Outputs ¼-inch TRS Stereo Output & Monitor Outputs RCA Loop Out (L & R) |
| Signal to Noise Ratio | >90dB Typical (Ref 0dBu) |
| Maximum Input Level | +4dBu (Mic), +20dBu (1/4-inch Input) |
| Maximum Output Level | +15dBu Main Mix Outputs |
| Maximum Gain | >54dB (Mic), >39dB (Instrument), 10dB (Stereo Monitor & Line Out) |
| USB Computer Interface | USB Class Compliant plug-and-play Mac / PC Interface |
| Power | 15VAC @ 500mA (Adaptor Included) |
| Dimensions | 47mm x 186mm x 215mm |
| Weight | 1.47 kg |
