TUBEMIX
5-Channel Recording Mixer with USB and Assignable 12AX7 Tube

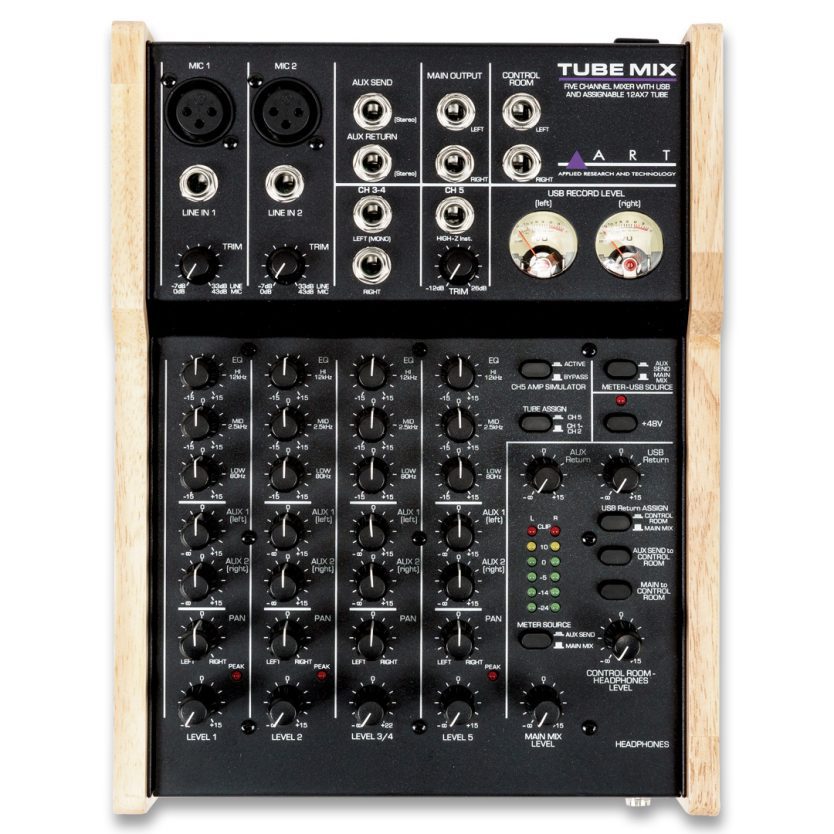

The Tube Mix is a five-channel mixer with two mic preamps, phantom power, a dedicated High-Z instrument input, VU meters, and an assignable 12AX7 tube gain stage. It’s also a two-channel digital audio interface with an integrated amp simulator.

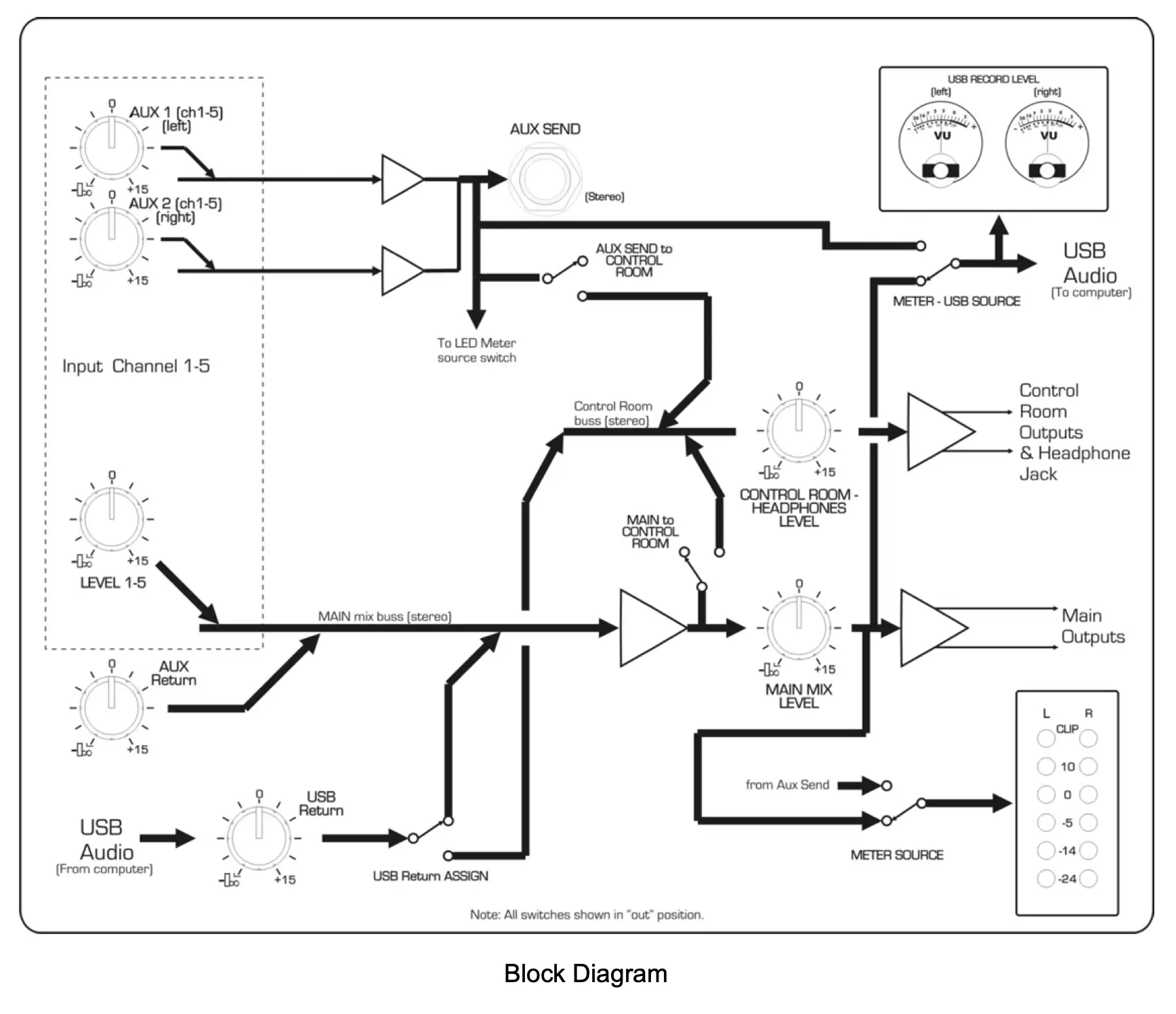

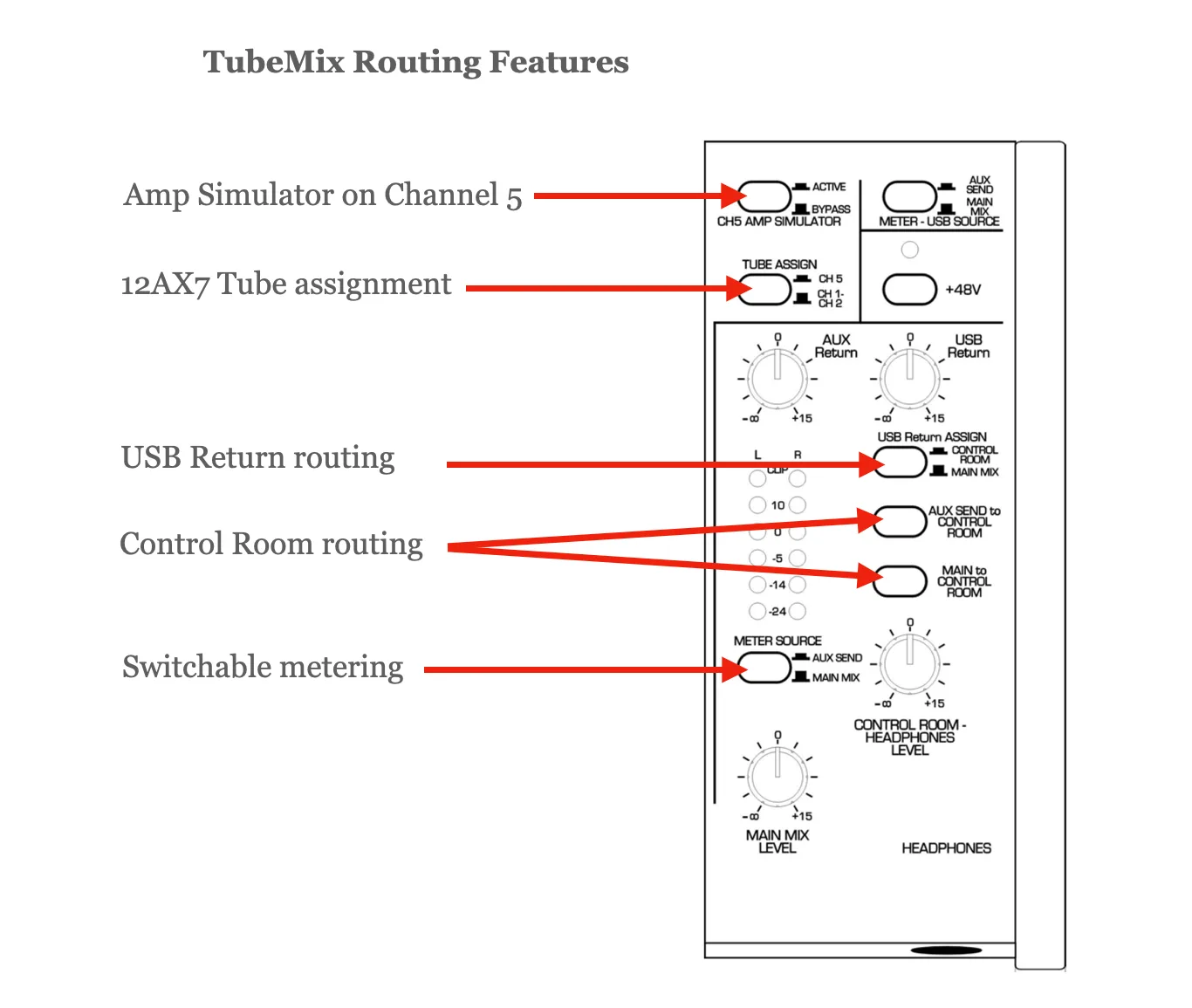

The input channels feature 3-band EQ, stereo aux sends, and controls for level and panning. The master section lets you quickly configure the monitor signal for the control room and headphone outputs, and assign the source and destination for the class-compliant USB interface.
With classic sound, modern features, and timeless style, the Tube Mix combines analog and digital elements into an inspiring recording solution that looks as good as it sounds.
Note:The TUBEMIX is a class-compliant USB audio interface, so dedicated driver software is not required for use with most modern operating systems.
A legacy driver is available, which may enable or improve performance on some older Windows operating systems.
Features:
- Fully Featured Tube Driven 5-Channel Stereo USB Mixer
- Two Wide Dynamic Range Low Noise Mic Preamp Channels
- Dedicated High Impedance Instrument Input with Amp Simulator
- Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
- Switchable Low Noise +48V Phantom Power for Condenser Microphones
- Precise VU Meters and Wide Range LED Meters with Selectable Source
- Fully Featured Input Channels
- Flexible Control Room / Monitor Section
- USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux
| Input Impedance | Microphone: 3.5k Ω Line (CH1, CH2, CH3/4), 10k Ω CH5 (Inst.), 1M Ω |
| Output Impedance | Main, Control Room (Balanced/Unbalanced), 150/100 Ω AUX Outputs, 150 Ω Headphones, 100 Ω |
| Frequency Response | 20-100kHz + 1dB |
| Maximum Input Level | CH1, CH2 (Mic), +9dBu CH1 CH2 (Line In), +20dBu CH3/4 (EQ Flat), +20dBu CH5 (EQ Flat), +16dBu AUX Return, +24dBu |
| Maximum Output Level | Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu Aux Send, +20dBu Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω |
| Maximum Gain | LINE IN to Main output (balanced), +63dB CH 5 to Main output (balanced), 56dB CH3/4 to Main output (balanced), +30dB |
| Equivalent Input Noise | Microphone (@max gain), 127dBu “C”wtd. Line (@max gain), -105dBu “C” wtd. Instrument (@ max gain), -112dBu “C” wtd. |
| USB Computer Interface | USB class compliant plug-and-play Mac and PC interface |
| A/D, D/A | 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer |
| Phantom Power | Switch selectable, +48V DC, filtered, current limited |
| Power Requirements | 18 VAC, 1000mA |
| Dimensions | 84mm H x 198mm W x 265mm D |
| Weight | 2.5 kg |
| Note | 0 dBu = 0.775Vrms |
