ART HeadAmp 4

$129.99

SKU: ARTP_HEADAMP4CE Category:

Eight Output Stereo Headphone Amp

FacebookTwitterPinterestLinkedin

Description

Overview

The ​HeadAmp4​ offers 1/8th-inch as well as 1/4-inch inputs and outputs as well as lower noise, lower distortion and more output in a new custom extruded stackable metal case.

Ideal for virtually any home or project studio, the ARTcessories ​HeadAmp4​ easily adds additional headphone outputs to any mixer, computer audio interface, workstation, iPod, media player or laptop without creating any additional load on the existing headphone source.

Individual level controls for the four headphone outs, 1/4-inch and now 1/8th-inch connections allow the HeadAmp4 to connect to virtually any source, and drive any headphone configuration including studio phones, in-ear monitors or custom ear pieces or any combination of the above.

Key Features

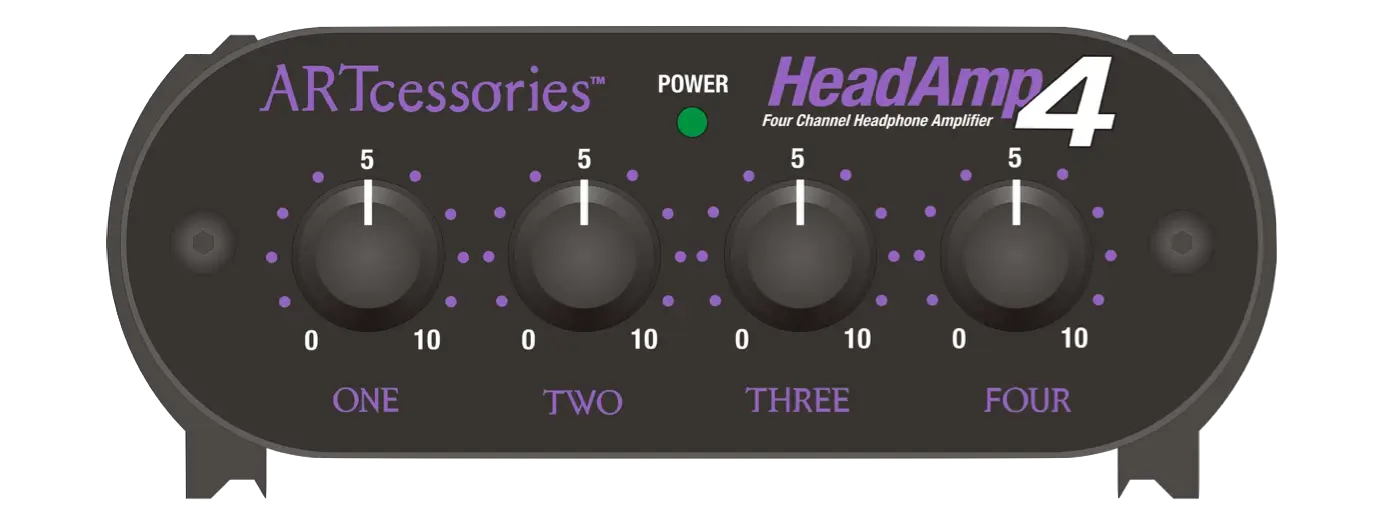

  • 4 Output Channels Each with Individual Volume Control

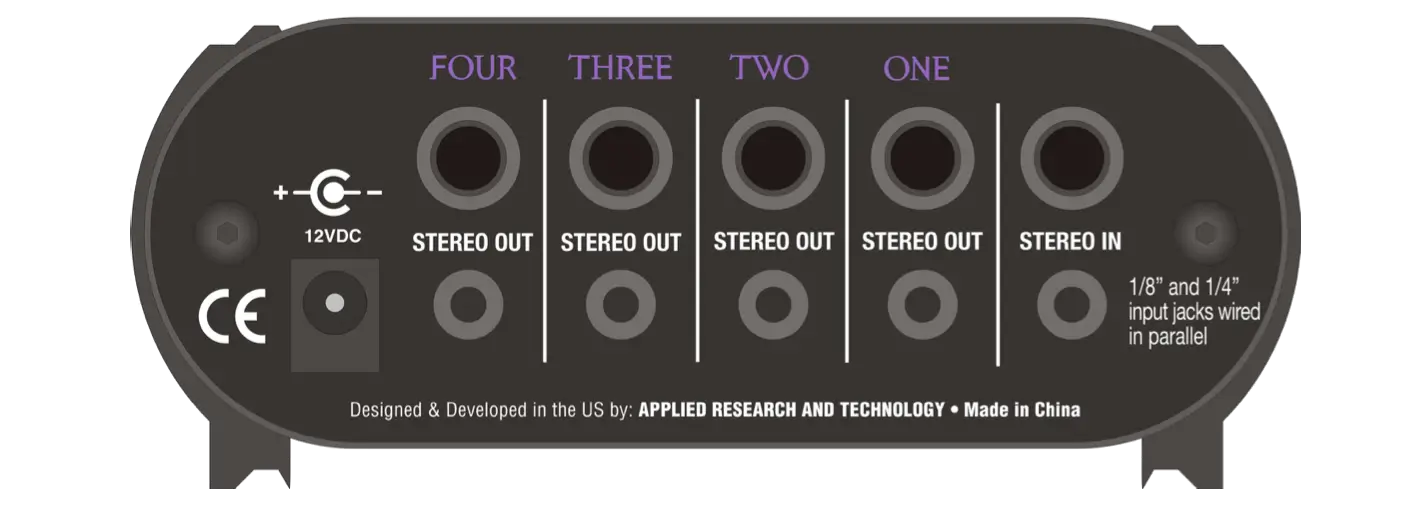

    Stereo 1/4-inch & 1/8-inch Inputs (Wired Parallel)
    Can be Connected to Any Line-Level Source or Headphone Output
    Four Stereo 1/4-inch & Four 1/8-inch Headphone Outputs
    Power “On” LED

Specifications

  • Maximum Input Level +14dBV
    Input Impedance 90.9k Ω
    Maximum Output Level +14dBu
    Maximum Gain 20dB
    Output Impedance 47 Ω (each output)
    Frequency Response 20 – 20 kHz
    Signal To Noise Ratio > 90dB (ref 0dBu)
    Total Harmonic Distortion <0.01%
    IMD (SMPTE) 0.01%
    Power 12V DC (Adapter included)
    Dimensions 1.85″H x 4.6″W x 4.1″D (47mm x 117mm x 104mm)
    Weight 1.3 lbs (0.61kg)
    Notes 0dBu = 0.775Vrms
