Details

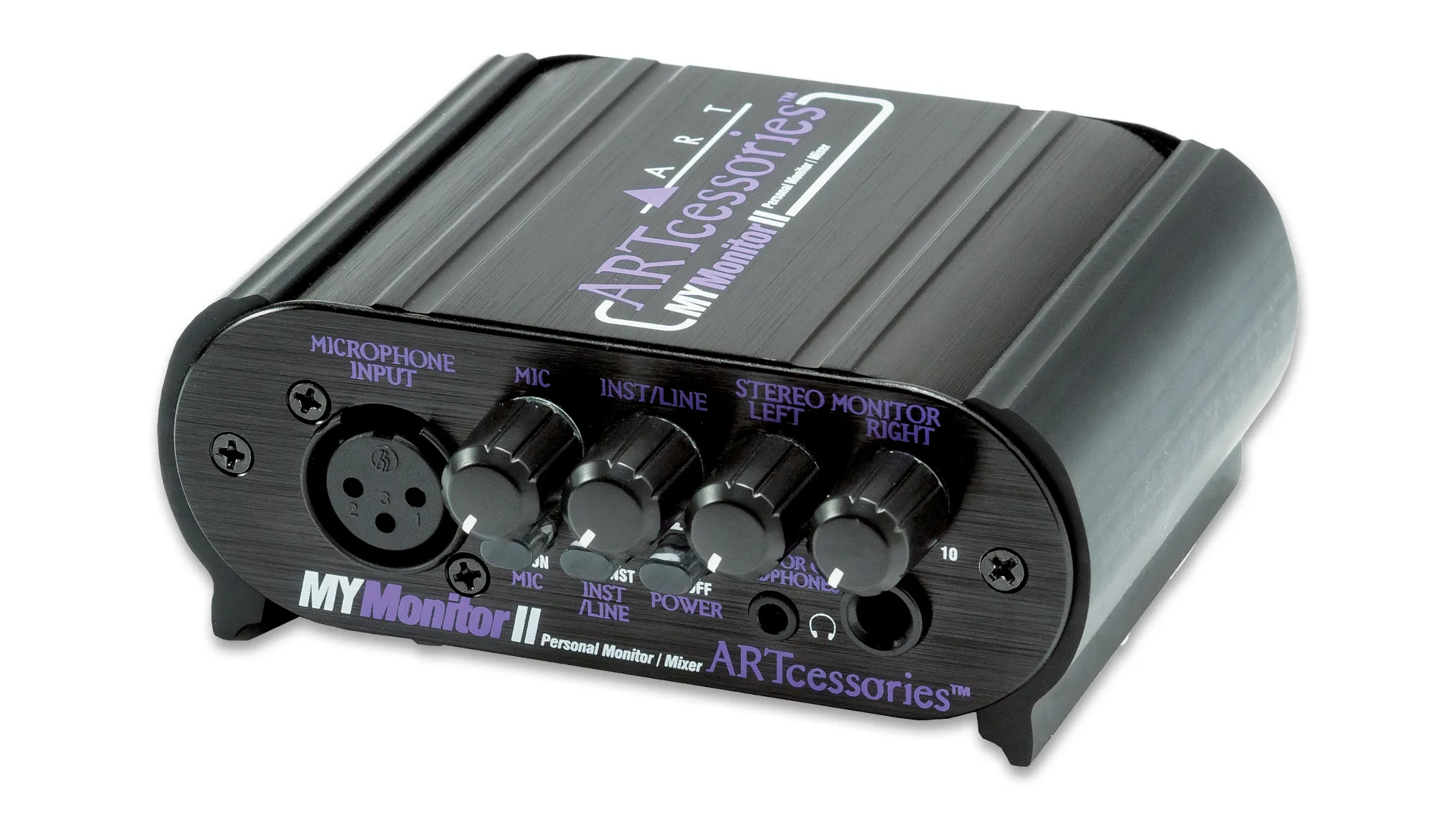

The MYMonitorII allows blending of any microphone source with any stereo source in a convenient personal monitoring solution. The microphone thru provides direct connection to any mixer and will pass phantom power from the board for powering condenser microphones.
Built for maximum flexibility, the ARTcessories MYMonitorII can be powered with the supplied 12vDC power supply, or from an internal 9v battery.

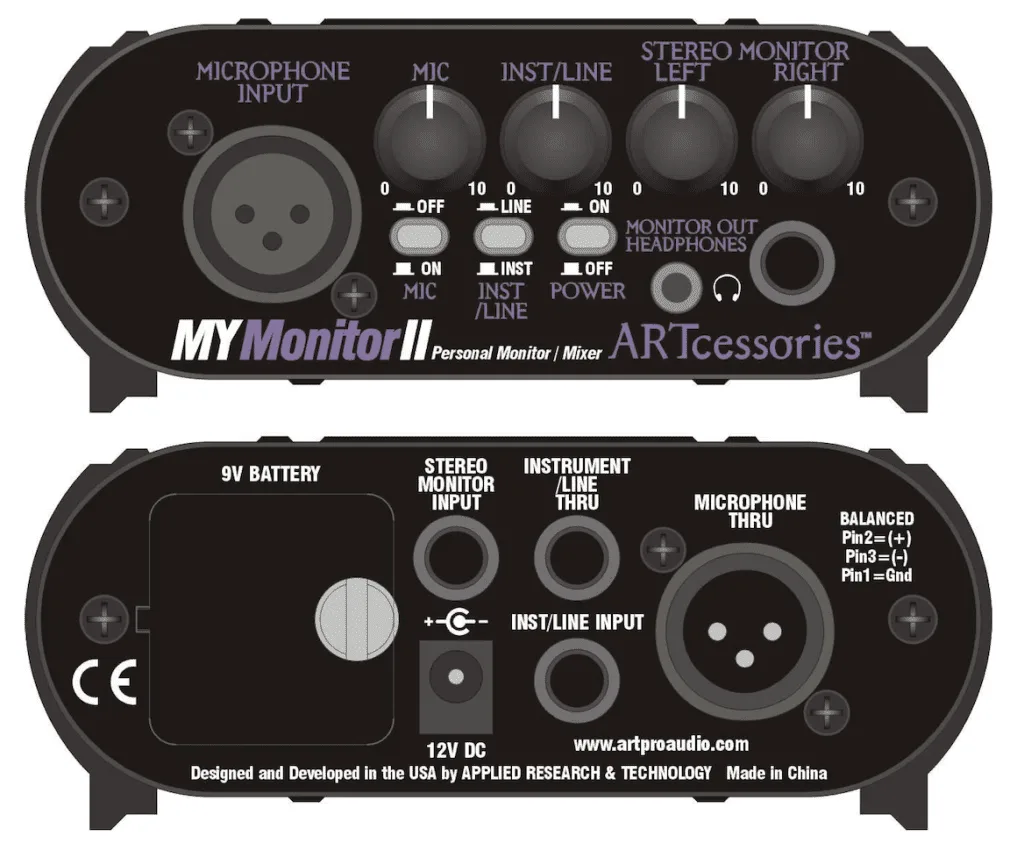

The pop-less microphone on/off switch lets you locally mute the microphone. The headphone section has independent 1/8-inch and ¼-inch TRS outputs with plenty of drive for both.
Features:
- Blends any Microphone, Instrument and Stereo Source for Personal Monitoring
- Microphone Input and Thru with Pop-less On/Off Mute Switch
- Passes Phantom Power for Operation with Condenser Microphones
- Instrument/Line Input and Thru Jacks
- Stereo Monitor Output with Blend Control
- Headphone output section has 1/8-inch and 1/4-inch Jacks
- High Performance, Low Noise Circuitry
- 9v battery and 12vDC Power Operation
The Sound On Sound Magazine review by Hugh Robjohns can be found here
Specifications:
| Maximum Input Level | +6 dBu (mic), +12 dBu (instrument), +32 dBu (line), >+32 dBu (stereo monitor) |
| Input Impedance | 4.5k Ω (mic), 1m Ω (instrument), 100k Ω (stereo monitor, line) |
| Maximum Output Level | +12dBu (headphones) |
| Maximum Gain | 47dB (mic), 41dB(instrument), 21dB(stereo monitor, line) |
| Output Impedance | 47 Ω (each headphone output) |
| Input Connections | XLR balanced microphone, 1/4-inch stereo monitor, 1/4-inch mono instrument/line input |
| Output Connections | XLR balanced microphone, 1/4-inch and 1/8-inch headphones, 1/4-inch mono instrument/line thru. |
| Signal To Noise Ratio | > 96dB |
| Power | 12VDC @ 150mA (Adaptor Included) or 9VDC Battery |
| Dimensions | 47mm x 117mm x 104mm |
| Weight | 0.50kg |
