Waves Proton Duo

The Most Compact and Portable Waves Processing System Yet

The slim, elegant Proton Duo combines a Waves Proton SoundGrid server, an Axis Proton Waves-customised computer, and a built-in network switch. For the first time, you can add plugin processing power and run Waves applications such as eMotion LV1 or SuperRack using the same compact device, instead of two separate devices.

Preconfigured, wired, easily rack-mountable, and ready-to-go straight out of the box, Proton Duo is designed for quick setup: Just plug it into your I/O — anytime, anywhere — and you’re ready to mix with Waves’ world-class plugin processing.

In addition to boosting your DSP power, the compact, half-rack Proton Duo is optimised to run the Waves eMotion LV1 live mixer (16-channel configuration) or the 16-channel SuperRack SoundGrid live plugin host. With server, computer and switch all rolled into one, Proton Duo delivers true power and ease of use.

• Proton server and Axis Proton computer in one compact unit
• Server adds plugin processing power to your system
• Designed for compact systems at 48 kHz
• Use rack ears to mount in rack system, or place on a rack shelf
• Only 1U half-rack—small enough to fit in carry-on, or a backpack
• Computer that’s optimized for running Waves applications
• Ultra-low latency: only 0.8 milliseconds at 48 kHz
• Use with SoundGrid I/O for real-time plugin processing
• Quiet design, with minimal fan noise
• Built-in multiport network switch for added convenience
• 4GB RAM (Proton server), 8GB RAM (Axis Proton computer)
• Intel^® Celeron^® processor, with 256 HDD internal storage

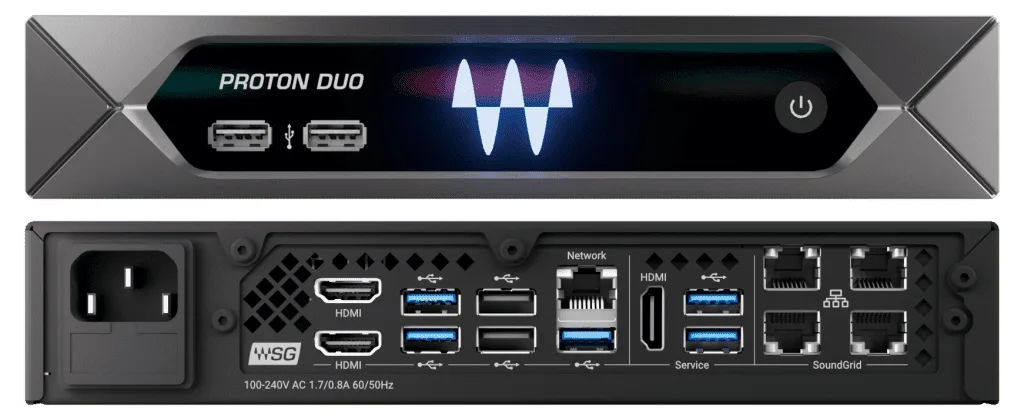

• 3x HDMI, 5x USB 3.0, 4x USB 2.0, 5x RJ45 Ethernet ports
• Windows 10 operating system included

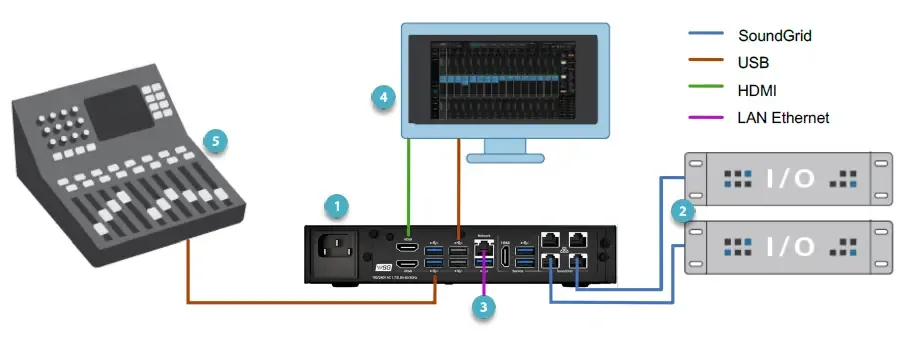

• Connects to SoundGrid systems with a single Ethernet cable
• Free 6-month warranty, extended warranty available
