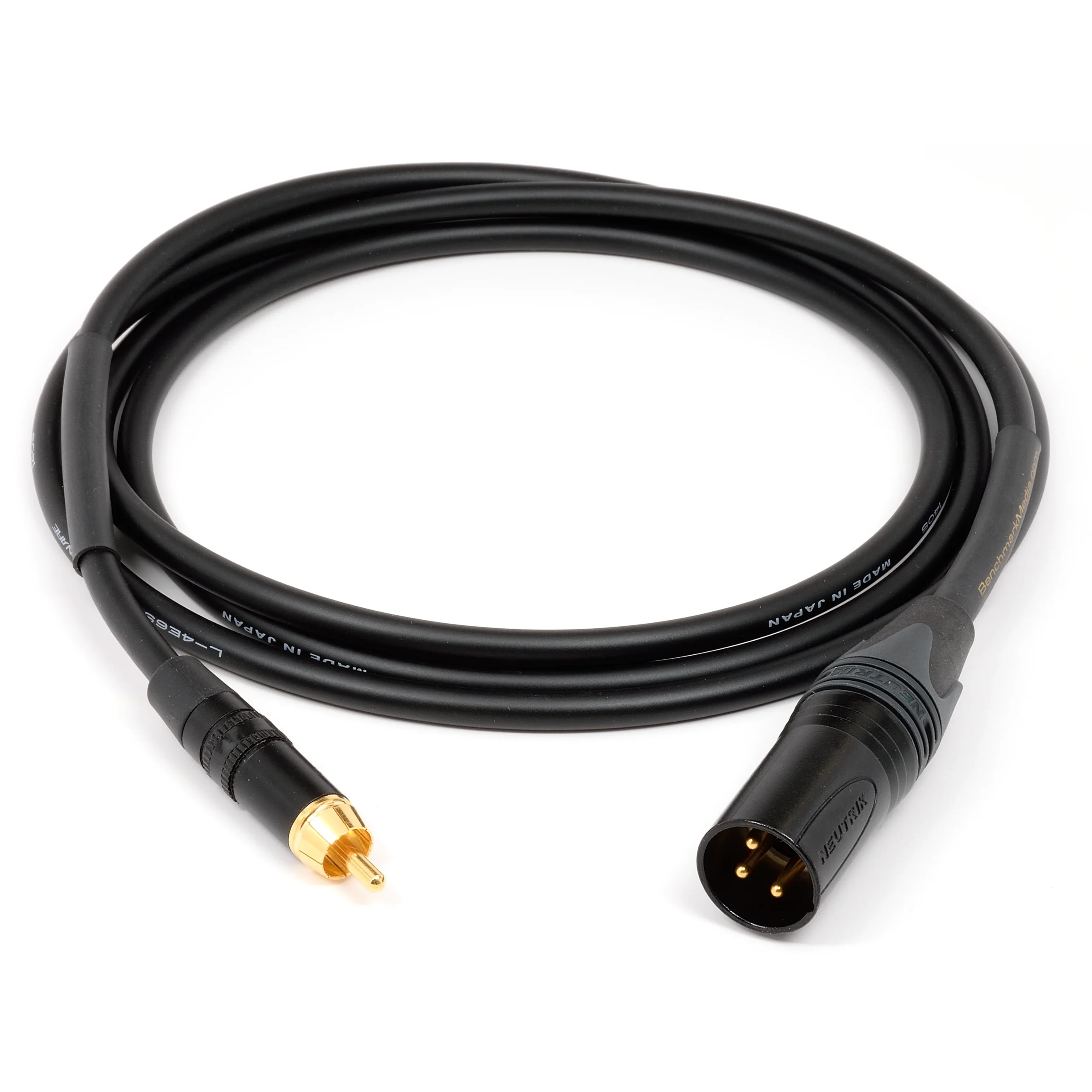

Benchmark RCA-XLRm Cable – 1.83m (6ft)

Stock: In stock

RCA to XLRm CABLE FOR ANALOG AUDIO

$179.00

SKU: BNMK_500-06906-550

Details

Benchmark RCA to XLRM Adapter Cable for Analog Audio – pin 3 to RCA shield

Benchmark Studio&Stage™ Analog XLR Cables combine the best cable, connectors, and construction techniques in order to offer performance that meets the demands of world-class studios, while providing the strength and reliability required for stage applications. Our professional cables are also well suited for hi-fi applications because they meet or exceed the electrical performance of the best high-end hi-fi cables.

This special adapter cable connects unbalanced analog RCA outputs to balanced analog XLR inputs. Do not use this cable with digital signals.

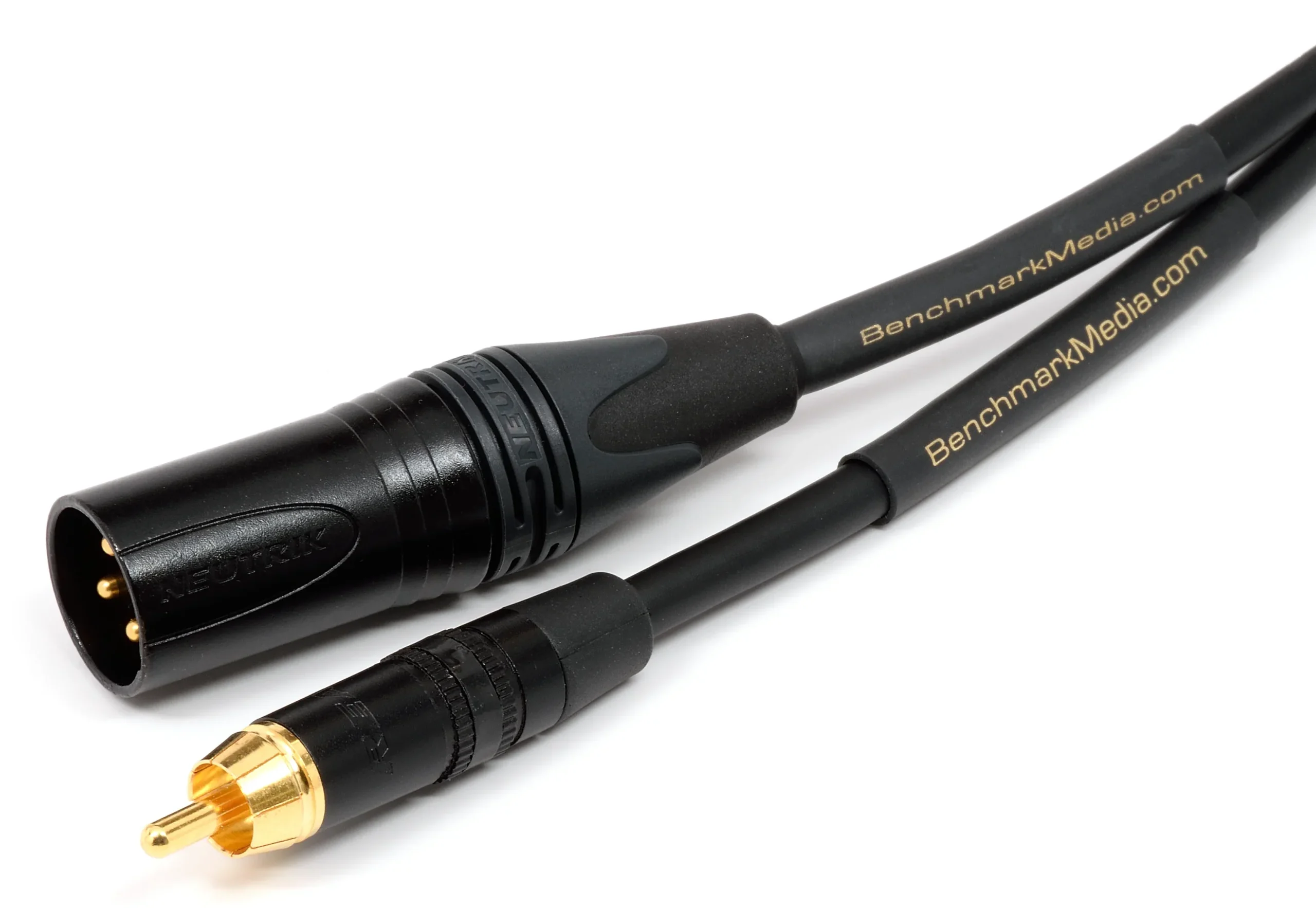

Input end is RCA-Male, output end is XLR-Male

  • 21 AWG effective AWG of combined twin conductors
  • 24 AWG, 40-strand copper conductors, Qty. 4
  • Special cross-linked PE insulation
  • Flexible in extreme cold weather
  • High-density (> 95% ) TAC braided copper shield
  • Conductor DC Resistance: < 29.9 Ohms / 1000 ft.
  • Shield DC Resistance: < 9.1 Ohms / 1000 ft.
  • Capacitance between twin blue and white conductors: 46 pF / ft.
  • Capacitance between conductors and shield: 56 pF / ft.
  • Nominal Impedance: 44 Ohms
  • Input end is RCA-Male, output end is XLR-Male

DESIGNED, ASSEMBLED, AND TESTED IN THE USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.
