Waves DSPRO StageGrid 4000

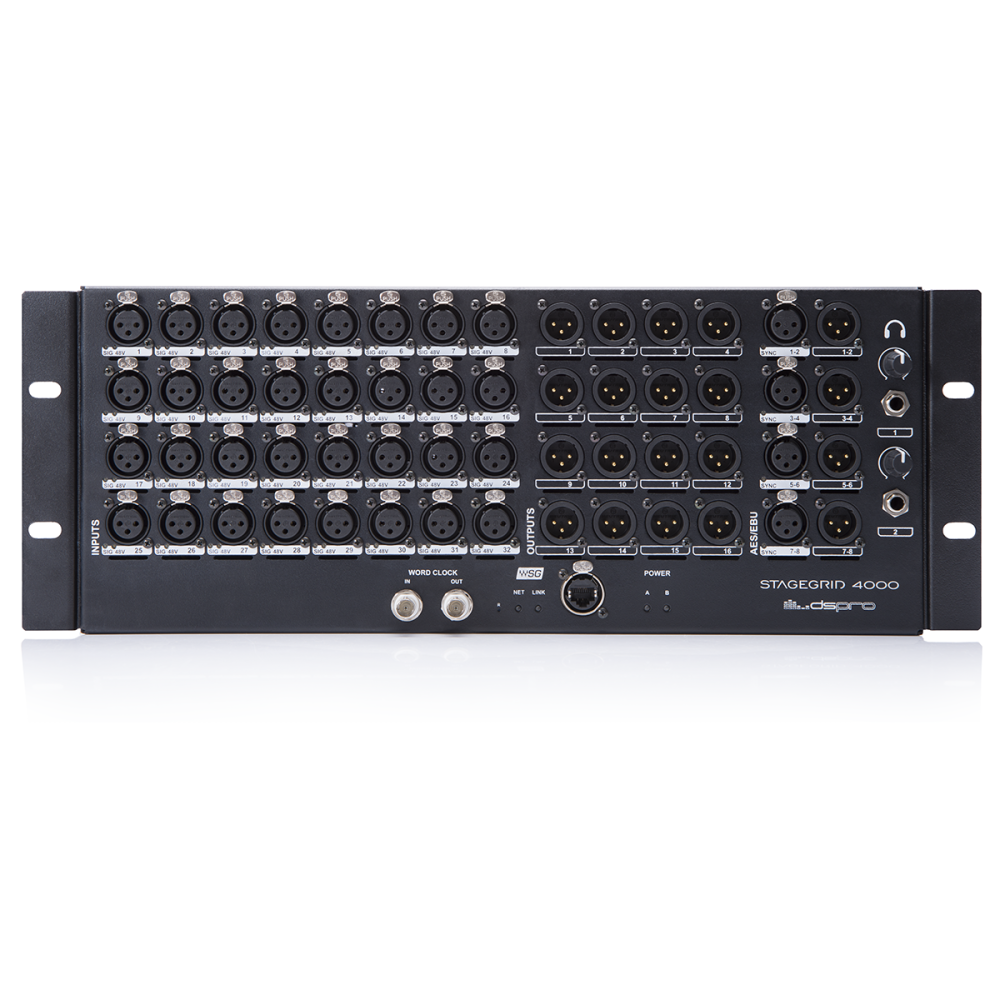

Waves DSPRO StageGrid 4000 SoundGrid stagebox for live mixing. 32 mic/line ins, 16 outs, AES/EBU. Perfect for use with the eMotion LV1 live mixer. Crafted for supreme sound quality and reliability, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.

Featuring pristine preamps designed to deliver a dynamic sound with superb clarity, StageGrid 4000 is fully integrated into the Waves ecosystem and easily interfaces with the eMotion LV1 mixer and any other SoundGrid network component. It provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology.

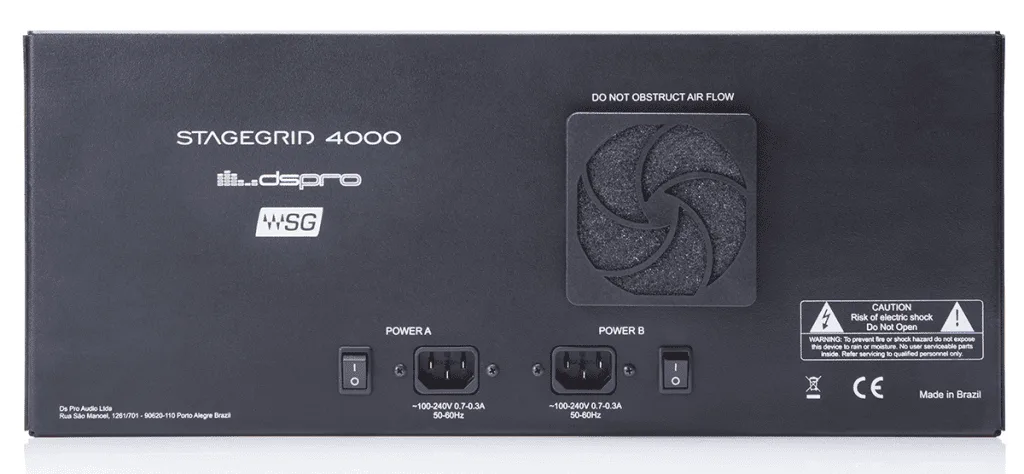

Built ruggedly in a robust 4U rack-mountable chassis, StageGrid 4000 is designed with the challenges of the road in mind, and with no compromise in audio quality. All of StageGrid 4000's components were carefully selected and tested to ensure continuous system stability and maximum dependability, including a redundant power supply. This way you can focus on what really matters – creating a consistent, impactful sonic experience, show after show.

TECHNICAL SPECIFICATIONS

General

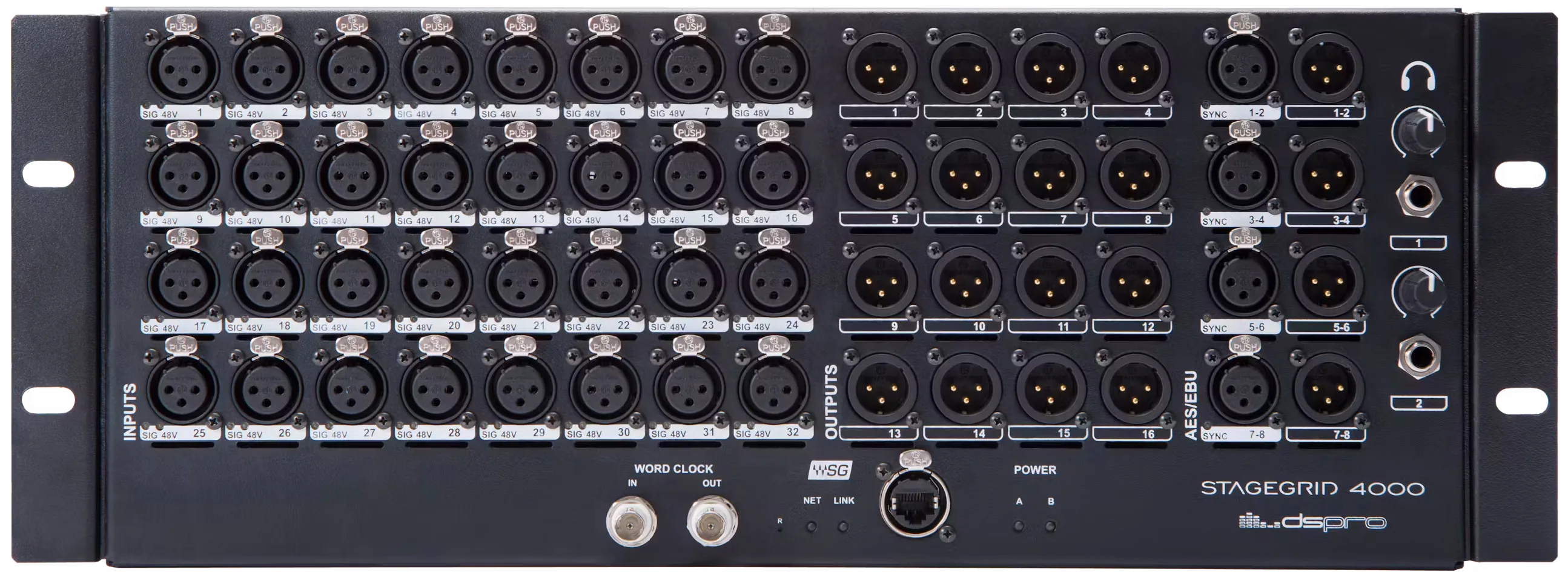

• 32 x Analog mic/line inputs

• 16 x Analog line outputs

• 4 x Stereo AES/EBU Digital inputs

• 4 x Stereo AES/EBU Digital outputs

• 1 x WordClock In/Out

• 2 x headphone outputs

• 1 x SoundGrid Ethernet port

• Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz

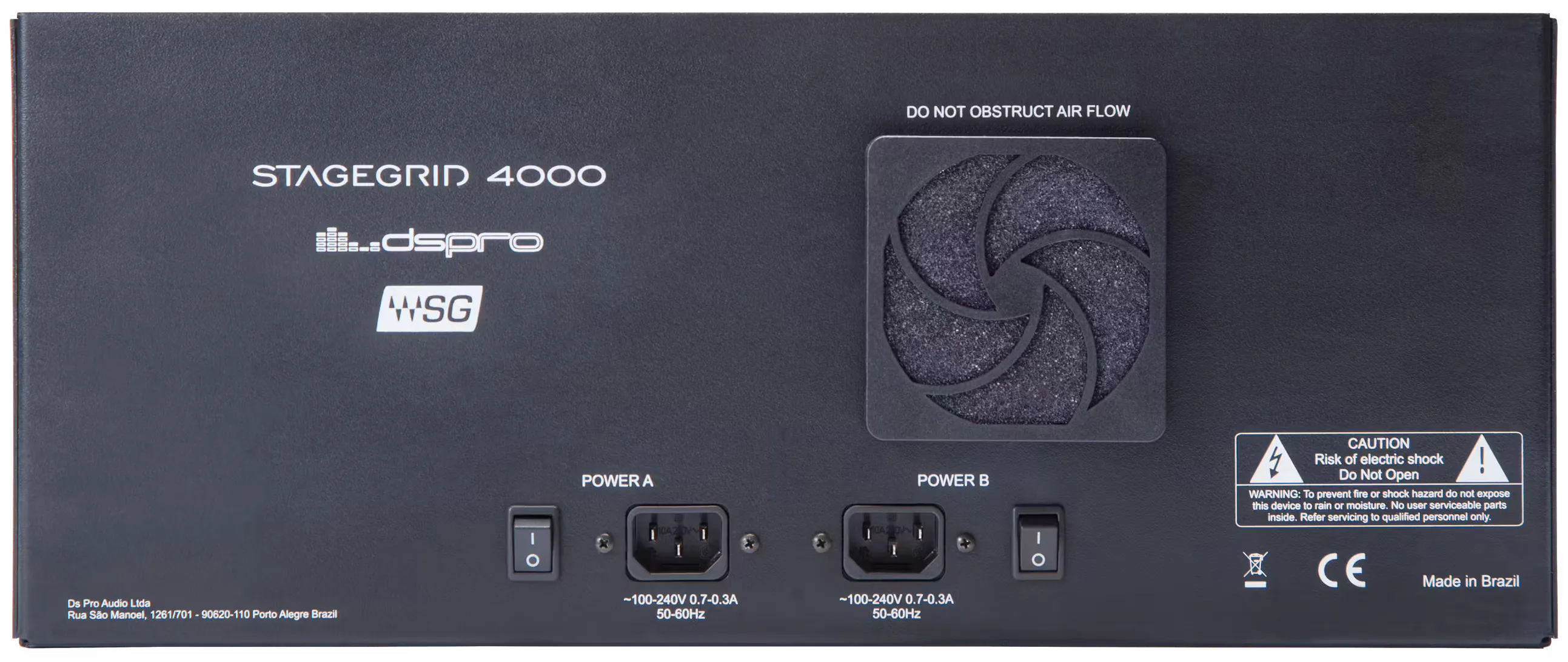

• Redundant Power Supply

Analog Inputs

• Impedance: 2.86kOhms

• Gain range: -4dB to 60dB

• Max input level: 28dBu (-4dB gain)

• Dynamic range: 115 dB (-60dBFS, 20dB gain, 1kHz, A-weighted)

• THD: 0,002 % (-1 dBFS, 20dB gain, 1kHz, A-weighted)

• Equivalent input noise: -128dBu (60dB gain, A-weighted, 150 ohms)

• Frequency response: +/- 0.1 dB (20Hz to 40kHz at 96kHz sampling rate)

• Phase Shift: <10° at 20Khz

Analog Outputs

• Output impedance: 50 ohms

• Max output Level (0dBFS): 24dBu

• Dynamic range: 115 dB (-60dBFS, 1kHz, A-weighted)

• THD: 0,002 % (-1dBFS, 20dB gain, 1kHz, A-weighted)

• Frequency response: +/-0.1dB (20 to 40kHz at 96kHz)

• Phase shift: <5° at 20Khz

AES/EBU IN/OUT

• Standard: AES3 (2009)

• Sample rates: 44.1, 48, 88.2, 96kHz

• Impedance: 110 ohms

Headphones

• Output Power: 150mW per channel on 16 ohms

• Dynamic range: 100dB

SoundGrid

• Interface: Gigabit Ethernet

• Connector: Neutrik EtherCON

Word Clock

• Connector: BNC

• Impedance: 75ohm

• Voltage level: 5V TTL

Power supply

• Voltage: 110/240VAC

• Frequency: 50Hz or 60Hz

• Power: 60W

Environmental specifications

• Operating temperature: 0°C - 40°C

• Relative humidity: Up to 90% non-condensing

Dimensions

• Height: 176mm / 6.92” (4RU)

• Width: 430mm / 19.92” (for 19” rack)

• Depth: 300mm / 11.81” (not including connectors)

• Weight: 7.89 Kg

EXAMPLE SETUP

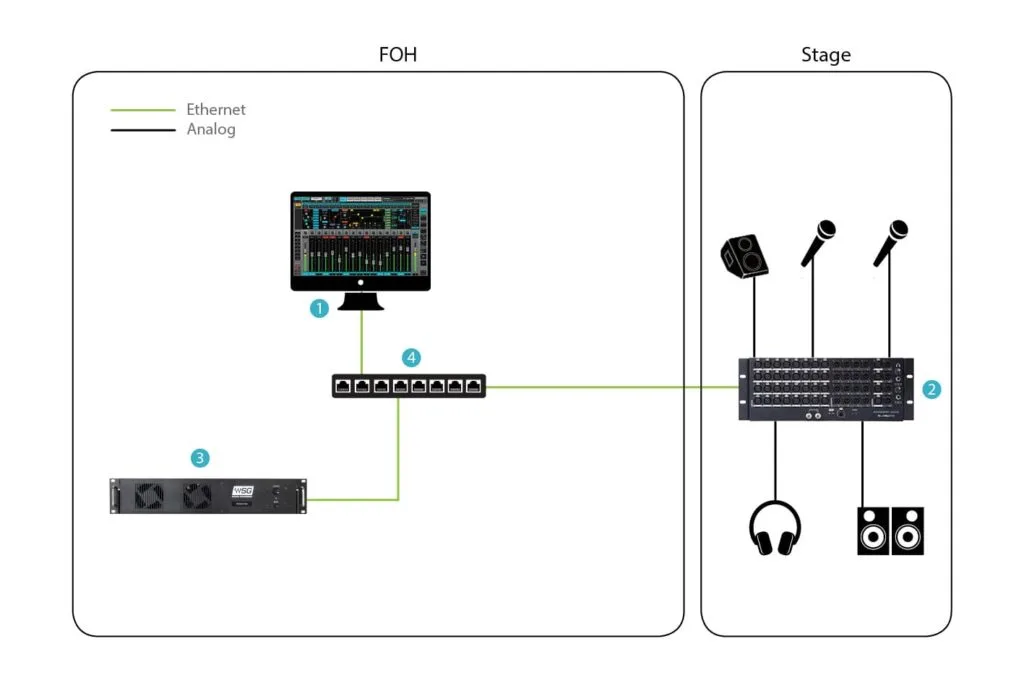

In the setup diagram below, on-stage instruments and microphones are connected to the StageGrid 4000 which is remotely controlled from the LV1 mixer at front-of-house. The audio is processed on a SoundGrid Server and then outputted to stage-monitors and/or the PA system. An optional DAW computer (with the SoundGrid Driver installed) can be added to the setup for recording the show, playing back audio and for virtual soundcheck.

LEGEND

1. Host computer running the eMotion LV1 mixer (see system requirements)

2. DS Pro StageGrid 4000 stagebox

3. SoundGrid Server (add a second server for processing redundancy)

4. SoundGrid-qualified network switch

For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
