ART USB Mix

Overview

The USB Mix is a 3-Channel Microphone, Instrument, and Line Mixer / Computer Interface - a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio.

The USB Mix is a portable analog mixer and class-compliant digital audio interface.

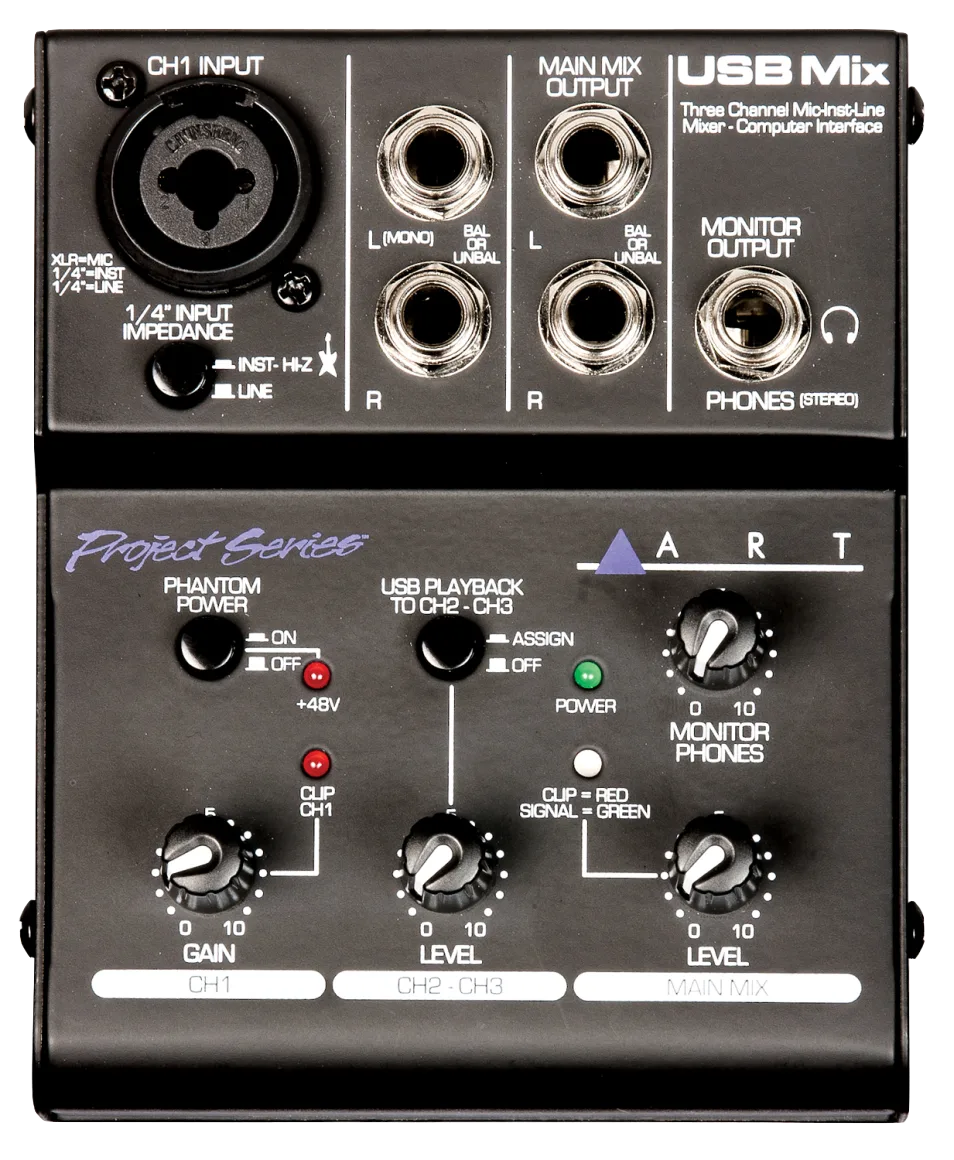

Channel 1 features an XLR / 1/4 combo jack that can accept mic, line, or instrument signals. It also has switchable phantom power to work with condenser mics. Channels 2 and 3 are configured as a stereo pair with 1/4 line inputs.

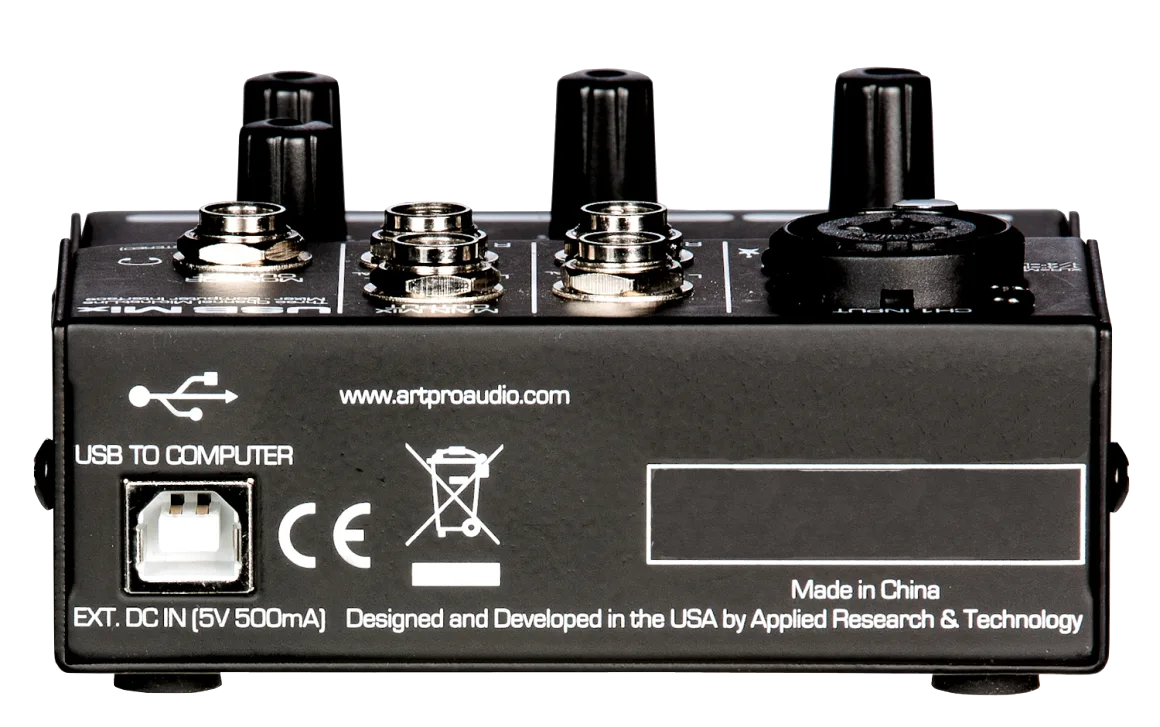

You can switch between monitoring only the mixer inputs, or blend them with the audio playback from your recording software. There are stereo outputs for studio monitors, a headphone output with an independent volume control, and a USB 2.0 connection for your computer or mobile device.

Easy to set up and use, the USB Mix is a compact and convenient entry point into digital recording, and a convenient bus-powered solution for mobile tracking.

Need more channels? Check out the USB Mix 4 and USB Mix 6.

Features

• USB powered, no external power supply needed when used with a computer

• Balanced XLR or unbalanced 1/4-inch Instrument inputs with switchable impedance

• Switchable low noise +48V phantom power

• Balanced 1/4-inch TRS inputs for stereo or mono line-level sources

• 1/4-inch TRS output jacks work with balanced or unbalanced lines

• Stereo 1/4-inch TRS headphone jack with independent level control for output monitoring

• Independent controls for both sets of inputs, main output, and headphone monitor

• Green/Red LED signal/clip indicator

• Switchable assignment of USB playback to channels 2 and 3

• USB 2.0 compliant USB cable, AC adapter, and Audacity recording software included

Dimensions (HWD) 1.6″ x 4.0″ x 4.75″ (4.1 cm x 10.1 cm x 12.1 cm)

Weight 1.1 lbs / 0.5 kg
