DiGiGrid DGS-XL

Overview

Used on major tours and in pro studios, the DiGiGrid DGS-XL Extreme server will let you run as many Waves and other SoundGrid-compatible plugins as you want, on as many channels as you’ve got, and give your live shows studio- grade sound. For example, you can throw plugins modelled on the world’s top consoles on each and every channel, and basically make your mixer sound like a classic top-tier desk.

The DiGiGrid DGS-XL incorporates a 4 port PoE capable switch, perfect for Live applications where DiGiGrid Desktop and additional rackmount interfaces are going to be used.

Main Features

• Integrated 4 Port PoE Network Switch

• Ultra-low latency: as low as 0.8ms at 44.1, 48, 88.2 & 96kHz

• Live and Studio Applications

• 2U Rackmount Chassis

General Specifications

• 2U rackmount

• Internal i7(v3) Extreme SoundGrid server.

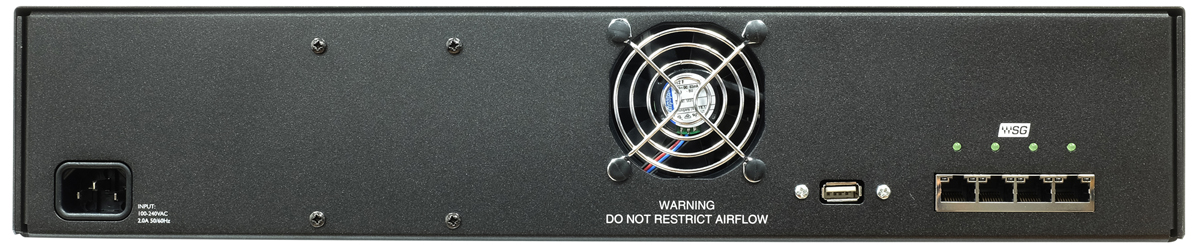

• 4 SoundGrid ports (RJ45) with PoE Support

• 1 AC input

• USB port (emergency port to boot server – support function only)

• Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz

Weight and Dimensions

• Height: 2U

• Width: 88.1mm 19″

• Depth: 356mm

• Weight: 6 kgs
