ART SCC

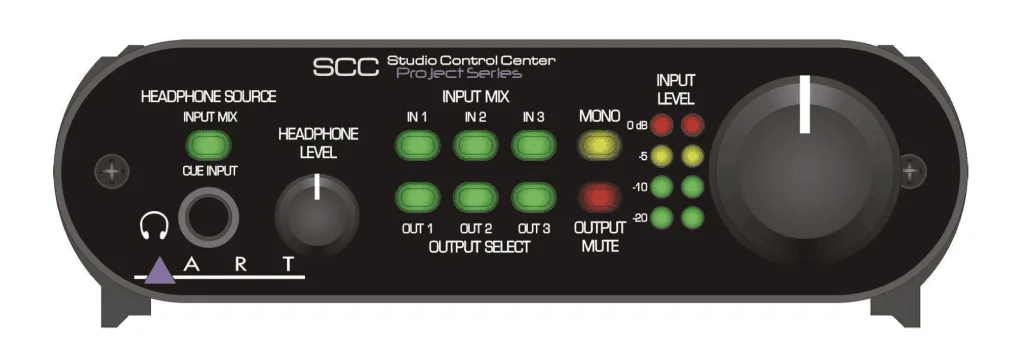

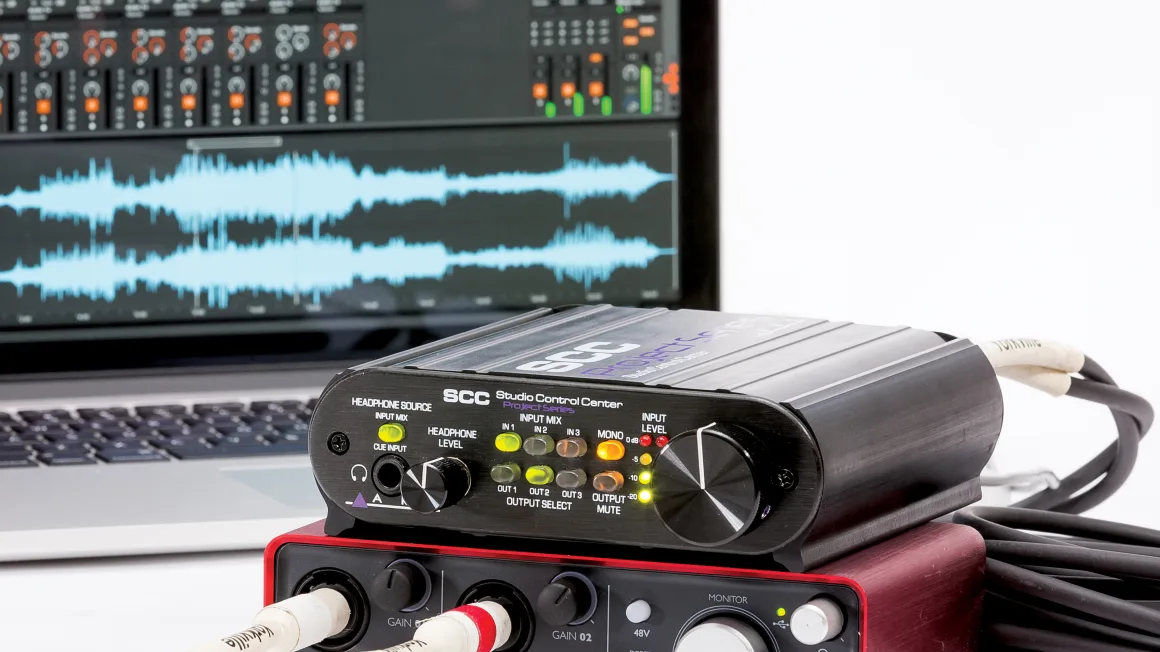

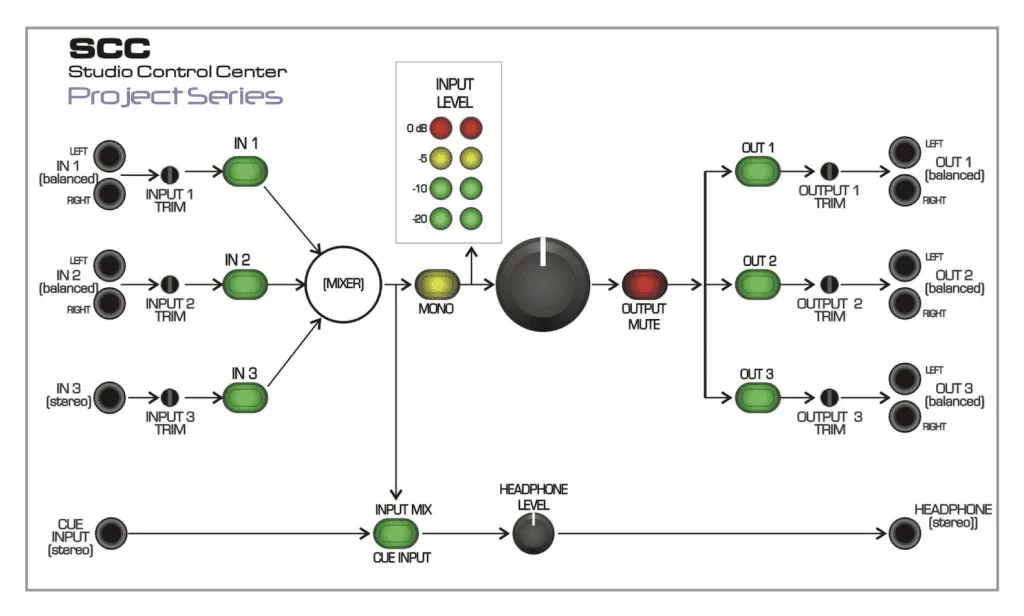

A separate cue source input with its own outputs and level control allows a separate headphone mixto run in parallel to the main mix. The headphone output can easily switch between the cue sourceand the main input source with the touch of a single button on the front panel. Additional controls on the SCC include a master mute switch, and a mono switch allowing you to sum the stereo inputs to mono to check phase in any mix. In a typical studio setup, one set of inputs on the SCC would connect to the main output of yourDAW workstation or computer audio card. Secondary outputs or headphone output would beconnected to the SCC’s Cue Mix input allowing for a second, completely separate headphone mix. Other sources (keyboard, iPod, analog sub mixer etc) can connect to the additional stereo inputs. Outputs would be connected to nearfield and midfield monitors or monitors and subwoofer. Multipleinputs and outputs can be used at the same time.

• Select or Blend up to Three Stereo Input Sources
• Three Selectable Stereo Balanced Outputs
• Large Format, Wide Range Low Distortion Volume Control
• Separate Headphone Output with Selectable Main or Cue input Sources
• Mono Switch & Output Mute Switches
• Input and Output Trim Controls
• Input Level Metering
• Solid All Metal Project Series Stackable Case
• External Low Noise Power Supply

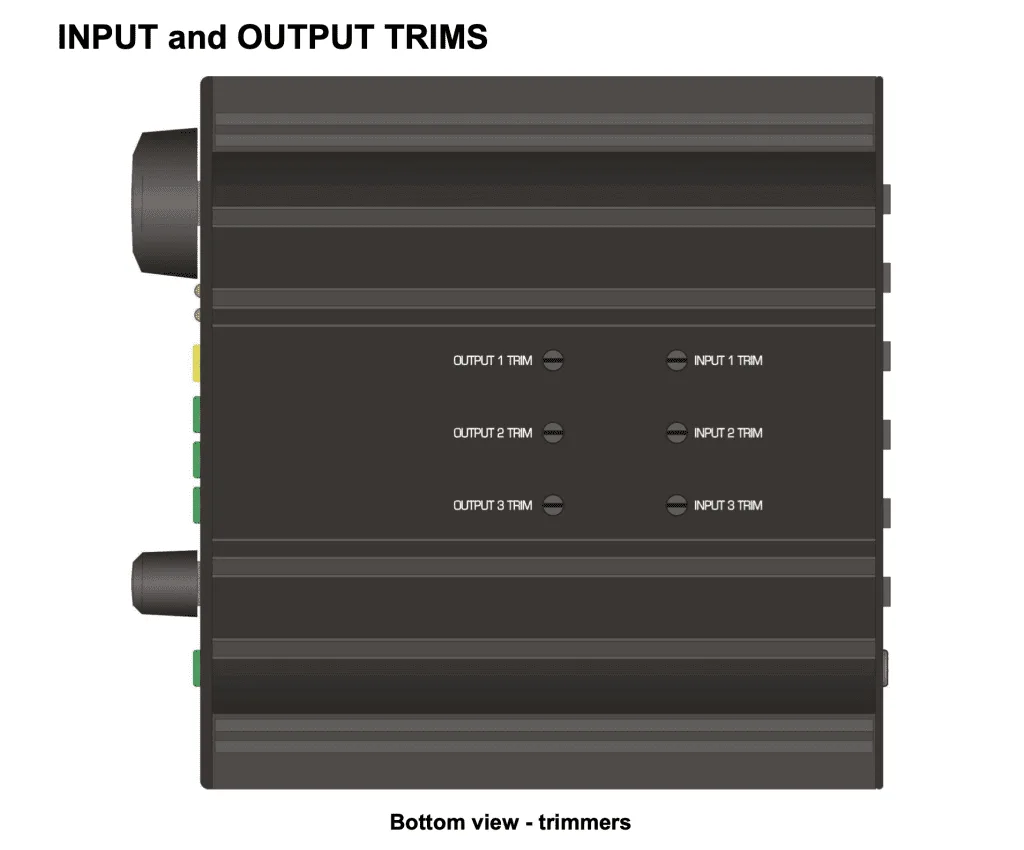

Trim controls located on the bottom of the SCC:

Specifications:

Frequency Response 10-100kHz + 0.5dB Total Harmonic Distortion <0.004% @ 20-20kHz Maximum Gain +23 dB (balanced in-out) +20dB (Cue input to Headphone output) Input Impedance 9k Ω balanced (CH1, CH2) 5k Ω unbalanced (CH3, Cue) Maximum Input Level +21dBu balanced inputs +20 dBu unbalanced inputs Maximum Output Level +18dBu balanced (OUT1-OUT3) Equivalent Input Noise <-96 dBu (balanced inputs) <-102dBu (Cue Input) Headphone Out 1/4-inch Stereo TRS headphone jack Headphone Level 100mW (x2) @100 Ω CMRR >50 dB Output Connectors OUT1-OUT3: 1/4-inch Balanced TRS Chassis Type All aluminium black anodised with rubber sides. Power Requirements 9VAC @ 1000mA (external) Dimensions 44.5mm x 150mm x 165mm Weight 1.14 kg with power supply and packaging Notes 0 dBu = 0.775Vrms
