ART SPLITMix4

The SPLITMix4 is a fully passive hybrid mixer that offers a wide variety of configurations. Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels, or combine the configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels thru 4 independent level attenuators to 4 stereo output channels.

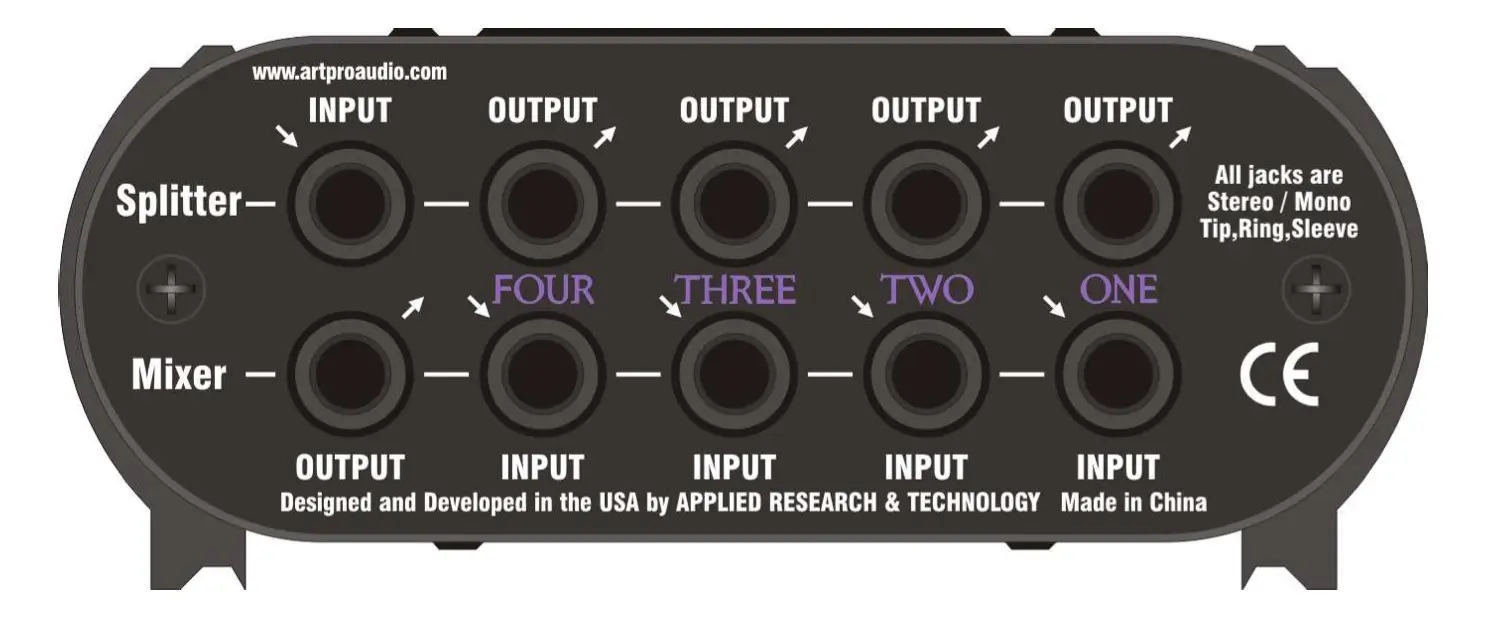

Independent stereo level controls are provided on each channel. All 1/4-inch connections are stereo TRS (Tip, Ring, Sleeve) and all channel connections have intelligent switching to allow for a wide variety of configurations. Plugging into a mix input channel removes it from the splitter bus, and plugging into a splitter output channel removes it from the mix bus. Stereo or mono operation is determined by the type of 1/4-inch plug and cabling that you use.

The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The Level attenuators cover a wide range and offer over 90dB of attenuation and channel isolation. The SPLITMix4 is designed primarily as a line level device with medium input and output impedances.

Key Features

• Four Stereo Input Channels

• Stereo Output

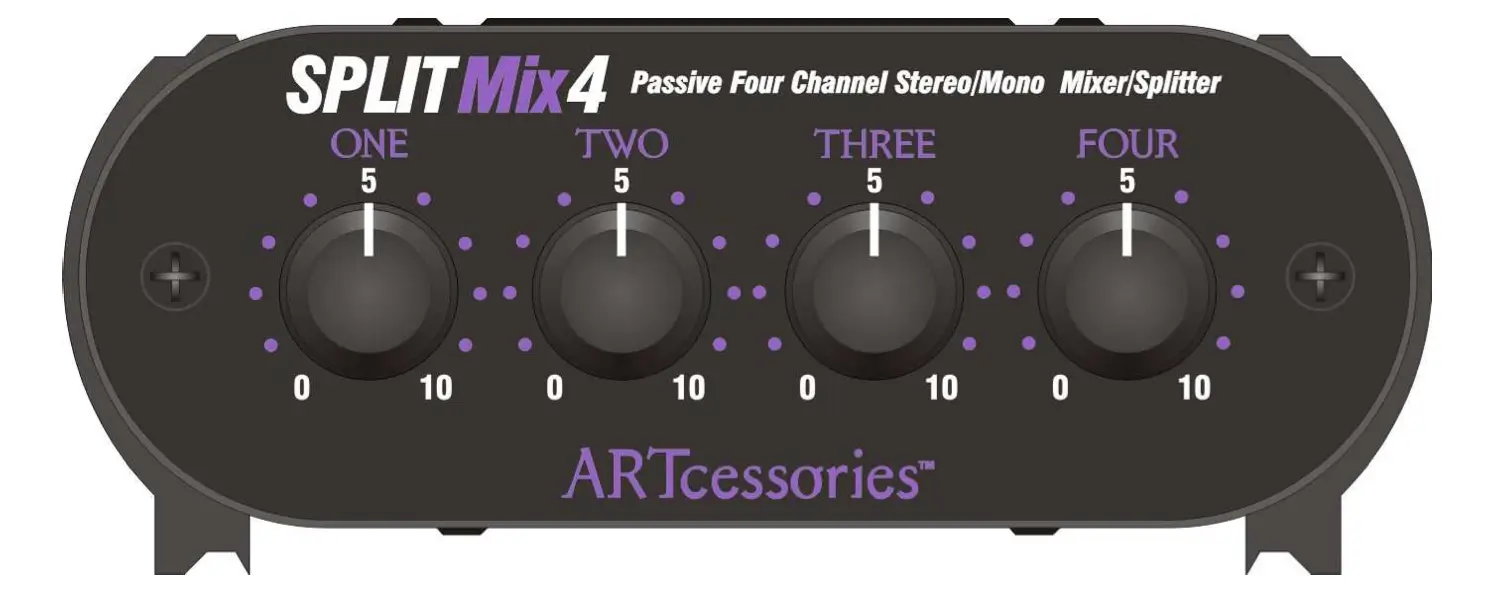

• Independent stereo level controls are provided on each channel

• Passive Design (No Power Supply Required)

• Over 90dB of Attenuation

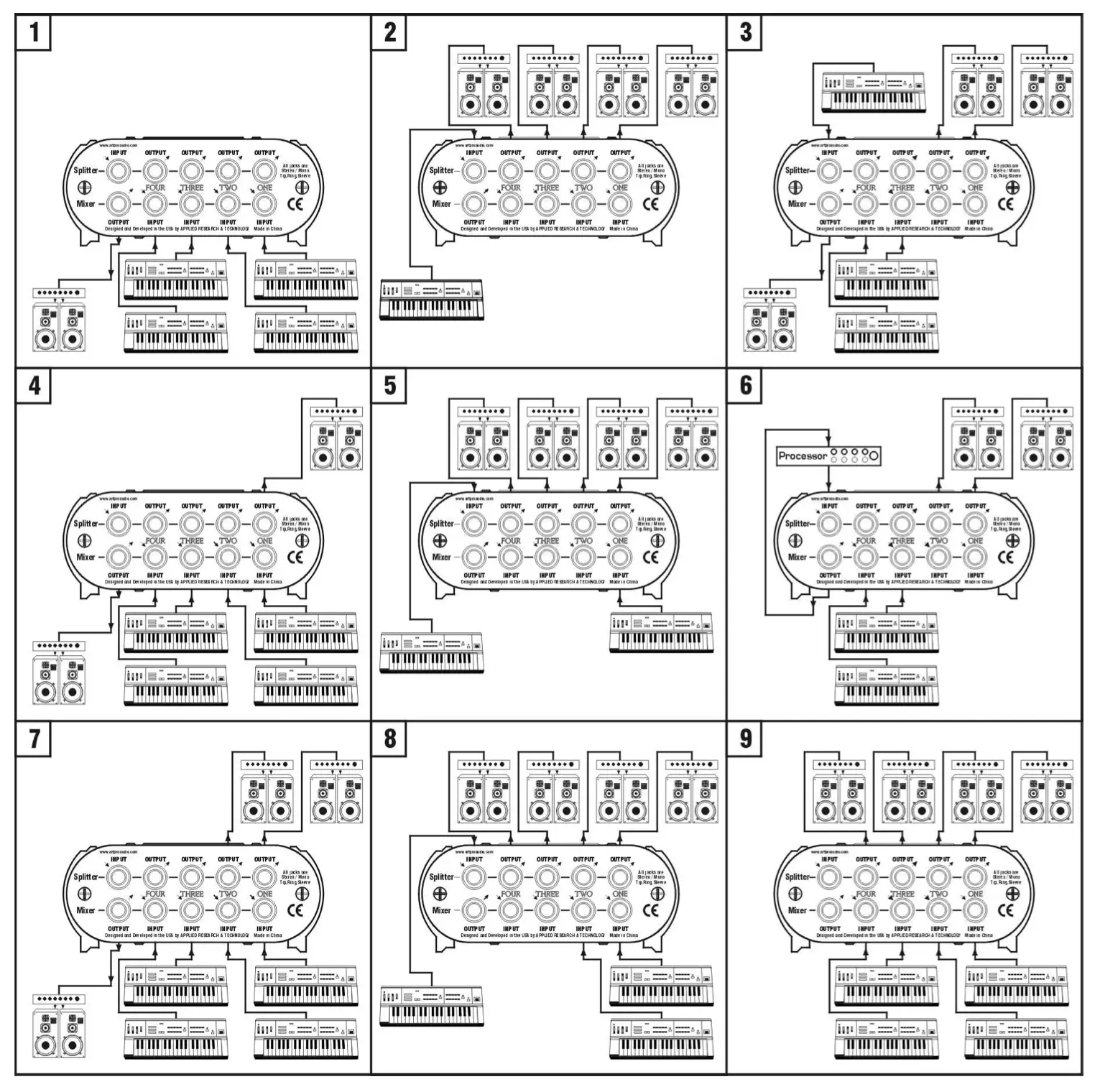

Application Chart Descriptions

1. Traditional 4-in 1-out mixer with separate level control for each channel.

2. 1-in 4-out “distribution mixer” configuration, where each output channel can control different audio zones.

3. Ch3 and 4 mix 2 sources into 1 output, while Ch1 and 2 provide 2 outputs from the splitter input source.

4. Ch2, 3, and 4 mix 3 sources into 1 output, while Ch1 input passes thru level control to Ch1 output.

5. Splitter input feeds Ch2, 3, and 4 outputs, while Ch1 input passes thru level control to Ch1 output.

6. Ch3 and 4 sources are mixed and fed to external processor. Processor output is then split to Ch1 and 2 outputs.

7. Ch3 and 4 mix 2 sources into 1 output, while Ch1 and 2 inputs feed Ch1 and 2 outputs with independent level controls.

8. Splitter input feeds Ch3 and 4 outputs, while Ch1 and 2 inputs feed Ch1 and 2 outputs with independent level controls.

9. 4 independent signal sources feed 4 independent outputs with separate level controls on each channel.

Specifications

Frequency Response 20Hz – 20kHz, +/-1dB

Total Harmonic Distortion <0.005% @ 1kHz (typical)

Phase Shift <10 degrees @ 20kHz

Input Impedance 25k -100k Ω

Ouput Impedance 1k – 4k Ω Insertion Loss 12dB (typical)

Connectors 1/4-inch TRS stereo

Maximum Attenuation > 90dB (typical) Channel Isolation > 90dB (typical)

Power Requirements Fully Passive

Dimensions 47mm x 117mm x 104mm

Weight 0.38 kg
