AmpliTube X-SPACE

It’s time to break free

Bring your perfect studio guitar sound onstage with the new AmpliTube X-SPACE reverb pedal. This boutique, true stereo pedal features 16 all-new reverb effects leveraging IK’s latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-SPACE pedal for world-class tone anywhere

AmpliTube X-SPACE overview

• Breakthrough software and hardware integration for guitarists

• State-of-the-art DSP in a road-worthy anodised aluminium chassis

• 16 different algorithms, 50 factory presets (300 storable presets)

• Iconic sounds to pristine, modern reverbs + Spillover/Trails function

• Includes exclusive virtual X-SPACE version for use in AmpliTube 5

• USB port for preset management and use as a recording interface

• Full MIDI implementation including control over AmpliTube 5

• Designed and made in Italy for a lifetime of playing and gigging

Best-in-show DSP

AmpliTube X-SPACE leverages IK’s latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional infinite-feedback effects. All combined, X-SPACE delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

16 high-end algorithms

• SHIMMER-1 (increasing feedback, and pitch from 1/4 semitone up to an octave for customisable shifting voicing)

• SHIMMER-2 (no feedback build-up and the two different pitched voices can be set in parallel to create custom harmonisations)

• HALL (reverb time range from 1 to 9 seconds, with a 3-band decay trimmer)

• ROOM (with a3-band decay trimmer any room can be recreated giving infinite possibilities - time range goes from 0.5 to 3 seconds)

• CHAMBER (from 1 to 9 seconds time simulating chambersfound in many professional recording studios)

• CHURCH (range from 8 to 20 seconds to replicate the smallest chapel to the biggest cathedral)

• PLATE (0.5 to 5 second reverb with customisable parameters)

• SPRING (emulates the vintage spring modules typically installed on guitar amplifiers)

• SWELL (swell processor followed by a customisable reverb)

• GATE (customisable gated reverb)

• REVERSE (reverse envelope with 3 different modes)

• EARLY-REF (emulates the typical short reflections heard in a small room or space)

• EXTREME (a plate reverb modulated by a vintage phaser)

• ETHEREAL (modulated plate)

• BLOOM (a swell like effect to give movement)

• MAGNETIC (spatial reverb with an accentuated modulation effect)

Hardware that stands out

For AmpliTube X-SPACE we went all out to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

• Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality

• 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound

• 112 dB dynamic range provides whisper-quiet operation at any gain setting

• A pure analog dry path and selectable true or soft bypass for maximum control

Industry-leading integration

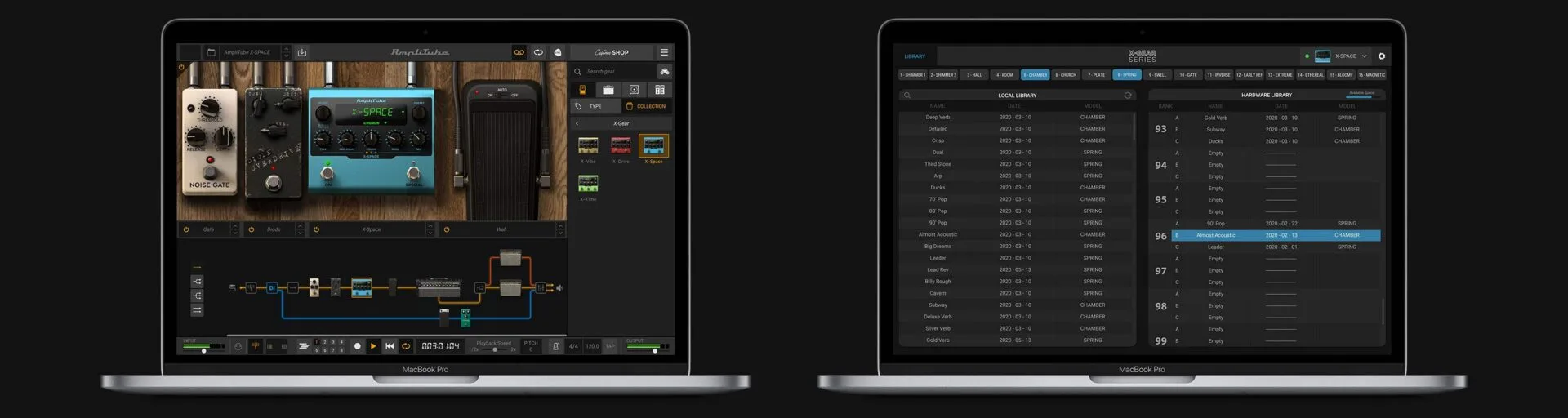

AmpliTube X-SPACE includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you’ll find your virtual X-SPACE pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube’s award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.

All-in-one recording

With AmpliTube X-SPACE there’s no need for any other gear when it comes to recording guitar. We’ve put a USB audio interface and some must-have recording features right onboard.

• 5Hz to 24kHz frequency response to record the full range of your guitar or bass

• Versatile routing options let you send the wet and/or dry signals to your DAW

• Stereo out for monitoring sound between the X-SPACE pedal and your computer

• Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

Package includes

• X-SPACE pedal

• USB A-Type to USB B-Type connection cable (1.5m/4.32ft)

• Power Supply Unit

• Plug-in and Preset Librarian serial number

Dimensions

• Size: 17.5cm x 14.5cm x 5.8cm

• Weight: 906g

System Requirements

AmpliTube 5

AmpliTube is a 64-bit application and requires a 64 bit CPU and Operating System.

Supported Plug-in formats (64-bit): Audio Units, VST 2, VST 3, AAX.

Internet connection is required as all of the Custom Shop operations are web-based.
