8-Channel Power Amplifier

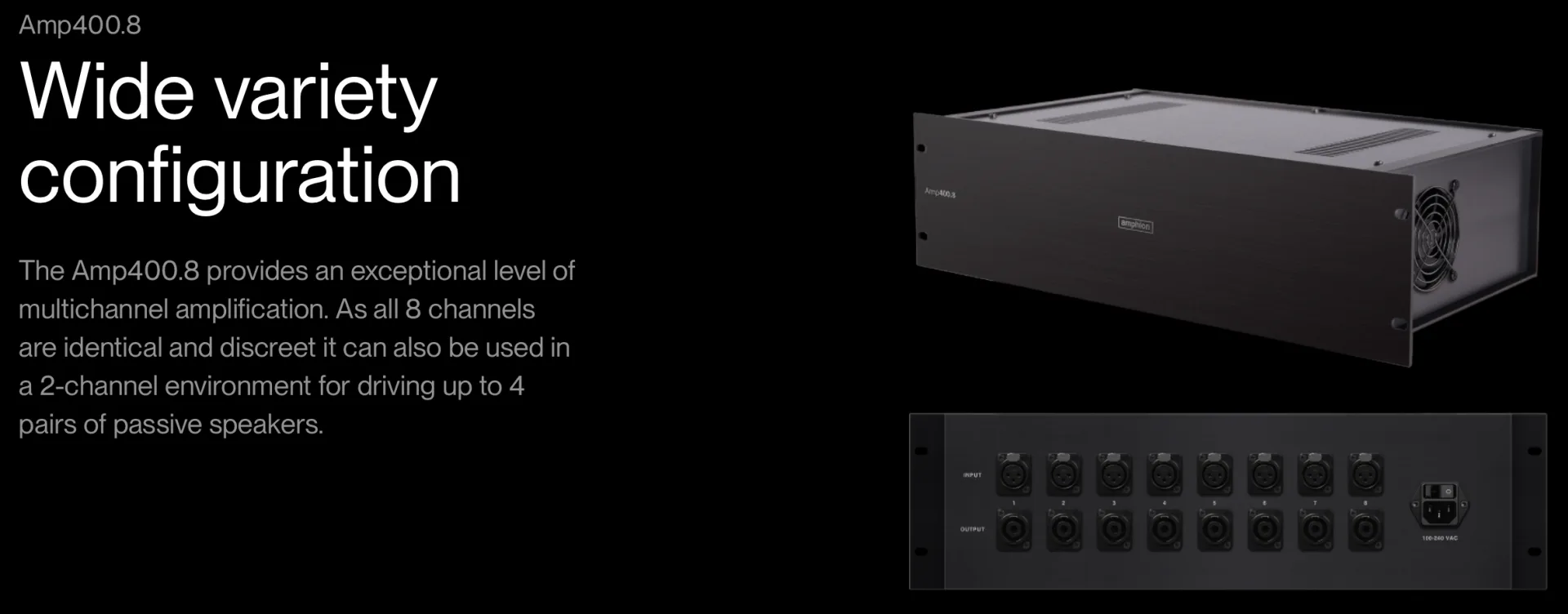

The Amp400.8 provides an exceptional level of multichannel amplification. It is built on the highly advanced Class-D platform, which offers abundant, fast, controlled, and low distortion power. To reach the needed sonic character and performance, an in-house designed buffer-stage was added to complement the merits of the latest Class-D technology. The buffer stage improves the impedance characteristics and cohesion between the channels, so that speed, control, neutrality, and ultra-low distortion can come across in an emotionally involving manner.
Although Amp400.8 was mainly developed for immersive audio, nothing prevents using it for other multichannel applications as well. As all 8 channels are identical and discreet it can also also be used in a 2-channel environment for driving up to 4 pairs of passive speakers. It will equally drive both 8 ohm and 4 ohm loads, and partners perfectly with all Amphion models. Amp400.8 was developed and optimized for Amphion monitors, but it also provides excellent results with wide range of passive speakers. Neutrik XLR and Speakon connectors offer a convenient and secure way to connect the amplifier to rest of the system.
Amp700 delivers rock-solid control and tight, fast, highly resolving low-distortion power to get maximum performance from your monitors.
To reach the needed sonic performance, a proprietary in-house designed buffer stage compliments the merits of the latest Class-D technology.
The perfect partner
Careful sonic matching and quality components make the amplifiers a perfect partner to all Amphion monitors and other passive speakers.
|Power Rating||410W, 4 Ω (2 channel driven)|
|205W, 8 Ω (2 channel driven)|
|Dynamic Range||121.5 dB(A)|
|Inputs||Balanced 3-pin XLR female|
|Speaker Connectors||Neutrik Speakon (NL2FX) 2-pole cable|
|Power Switch||Back panel, rocker switch|
|Mains||Universal mains, auto select (100-240 V, 50-60 Hz)|
|Casing||19” rack mountable (3U) high quality aluminium|
|Measurements (H x W x D)||483 x 88 x 260 mm|
Assembled in Finland
