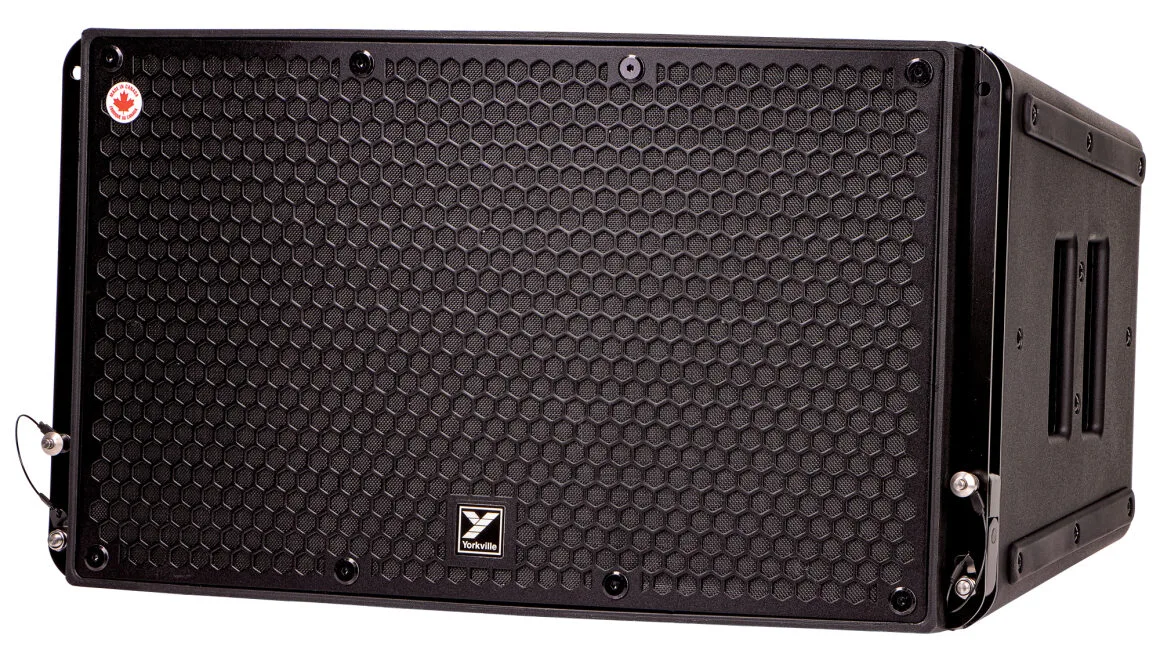

PSA28 2 x 8" Powered Loudspeaker

The new PSA28 offers 1400 watts of peak power, neodymium drivers, and integrated rigging hardware.It features two important technologies: Tom Danley's patented Paraline Lens and Synergy Horn. The unique geometry of the Paraline Lens produces a precisely shaped wavefront that matches the horn’s physical coverage pattern. It provides a continuous horn throat from cabinet to cabinet in the vertical plane, virtually eliminating comb filtering.The Paraline Lens is fed by high-output compression drivers, and the Synergy Horn configuration seamlessly couples the output of the Paraline Lens with the low-frequency drivers. The horn utilises the entire front area of the cabinet, maximising efficiency and directivity.Simple, intuitive controls let you quickly optimise the speaker response for your application.The PSA28 features a switchable high-pass filter for use with subwoofers, high-frequency boost to increase clarity, Nearfield mode to attenuate the horn when aimed at the audience closest to the stage, and compensation to counteract bass buildup as multiple enclosures are used together in a single vertical array.The PSA28 also features onboard limiting, powerCON® TRUE1 connectors for power input and pass-through, a dual-angle 35 mm (1 3/8”) stand adapter for use with the Yorkville SW-TUBEHD pole, and flush-mounted hardware to protect quick pins and rigging links.Optional accessories include the PSA28BUMPER and PSA28DOLLY.Need a more compact alternative? Check out the PSA26.

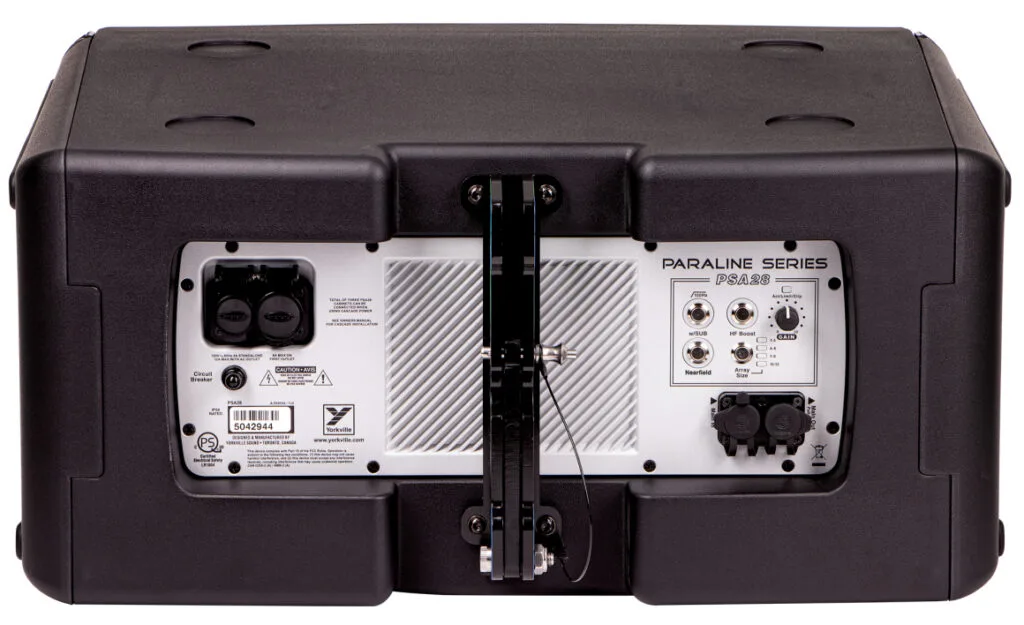

Features

• 1400 W Peak Power (1200 W Program)
• 2x 8” Neodymium LF Drivers
• 2x 1” Exit Neodymium HF Drivers
• Incorporates Tom Danley’s Patented Paraline Lens and Synergy Horn Technologies
• XLR Input and Output
• Locking powerCON® TRUE1 Connectors
• IP54 Rated for Outdoor Use
• Made in Canada

Specifications

System Type Powered Loudspeaker Power Rating 1400 W Peak (1200 W Program) Max SPL 140 dB Frequency Response 65 Hz - 20 kHz Dispersion (H x V) 120° x 10° HF Driver(s) 2 x 1" Exit Neodymium LF Driver(s) 2 x 8" Neodymium Power Requirements 120 VAC Power Consumption (typ/max) 120V 3A / 5A120V In / Out Connections powerCON® TRUE1 Locking Connectors Inputs 1x XLR Outputs 1x XLR Controls Gain, High-Pass Filter (w/SUB), HF Boost, Nearfield, Array Size LED Indicators Activity, Limit, Clip Bar Handles 2 (1 each Side) Flying Hardware Skeletal Rigging System Pole Mount Adapter 1 (Dual Angle) Enclosure Materials Polypropylene Grille Powder-Coated Perforated Steel Other Features IP54 Rated for Outdoor Use Dimensions (DWH) 47 cm x 62.5 cm x 35.6 cm Weight 27.2 kg

Specifications subject to change without notice
