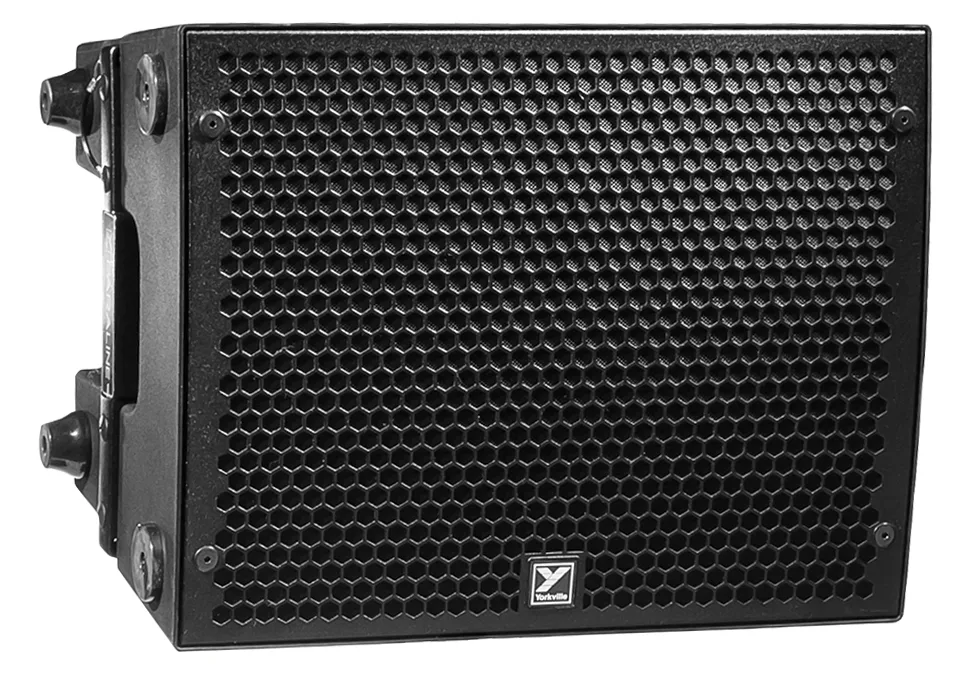

PSA1 4 x 6" Powered Loudspeaker

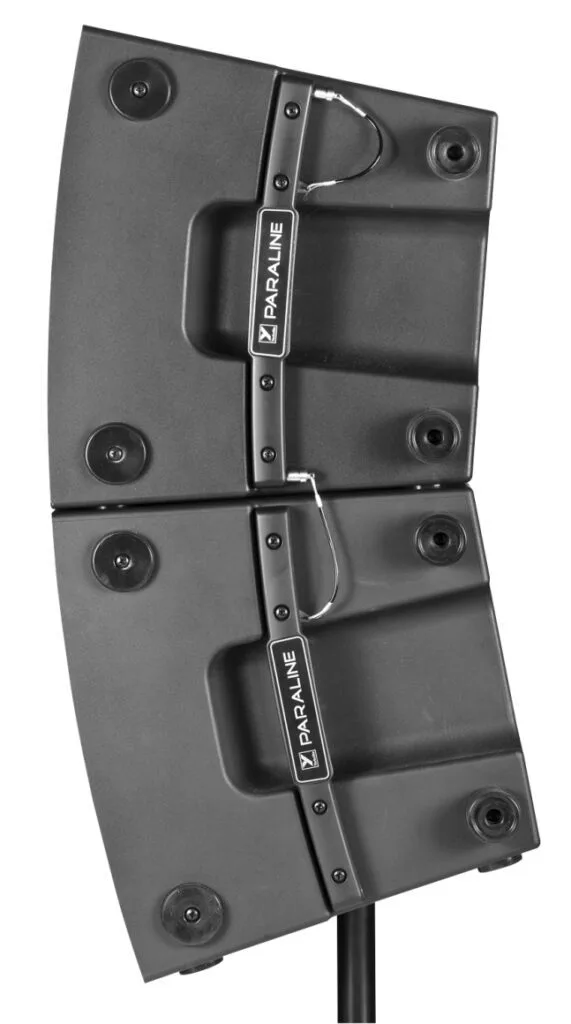

The Paraline Series delivers the clarity and precision of a line array system in a compact format. Designed for wide coverage, Paraline offers simplicity, directivity control, and tremendous output. The four 6-inch woofers provide tight, responsive bass, and two compression drivers are mounted to the patented Paraline lens. The unique geometry of the Paraline Lens produces a precisely shaped wave front that matches the cabinet’s physical coverage pattern. This delivers 15 degrees of focused vertical dispersion and 110 degrees of wide horizontal coverage. Two PSA1 cabinets can be mounted quickly and securely on a speaker stand, and dual-position stand mounts offer two coverage angles. For touring and installation, up to four PSA1 cabinets can be arrayed using optional accessories. The PSA1RIGKIT connects to the aluminium cabinet handles, and four cabinets can be flown using a single PSA1FRAME1 bumper. A PSA1 system can be quickly configured for optimum coverage without requiring complicated hardware or external signal processors. It’s a compact and cost-effective alternative to large format line arrays.

Features

• 1200 W Peak (700 W Program)
• 4x 6” Neodymium Woofers with 1.8” Voice Coils
• 2x 1” HF Drivers
• Patented Paraline Horn Lens
• 15° Vertical Dispersion for Minimum Interference between Arrayed Cabinets
• 110° Horizontal Dispersion for Wide Coverage
• Made in Canada

Specifications

System Type Powered Loudspeaker

Power Rating 1200 W Peak (700 W Program)

Biampable Biamp

Max SPL 128 dB Peak (125 dB Continuous)

Frequency Response (Hz +/- 3dB) 75 Hz - 20 kHz

Dispersion (H x V) 110° x 15°

Crossover Frequency 1.2 kHz

Cabinet Configuration 4x 6”, 2x 1”

HF Driver(s) 2x 1" Ceramic w/ 1.75" Voice Coil

HF Program Power (Watts) 200 W Peak (75 W Program)

HF Dispersion (°H x °V) 110° x 15°

HF Protection Peak and Average Limiting

LF Driver(s) 4x 6” Neodymium with 1.75” Voice Coil

LF Program Power(Watts) 1000 W Peak (675 W Program)

LF Protection Excursion, RMS

HF Power Amplifier (Watts) 75 W

HF Amplifier Type 2-Tier Class H

LF Power Amplifier (Watts) 625 W

LF Amplifier Type Class D

Cooling Scheme Convection

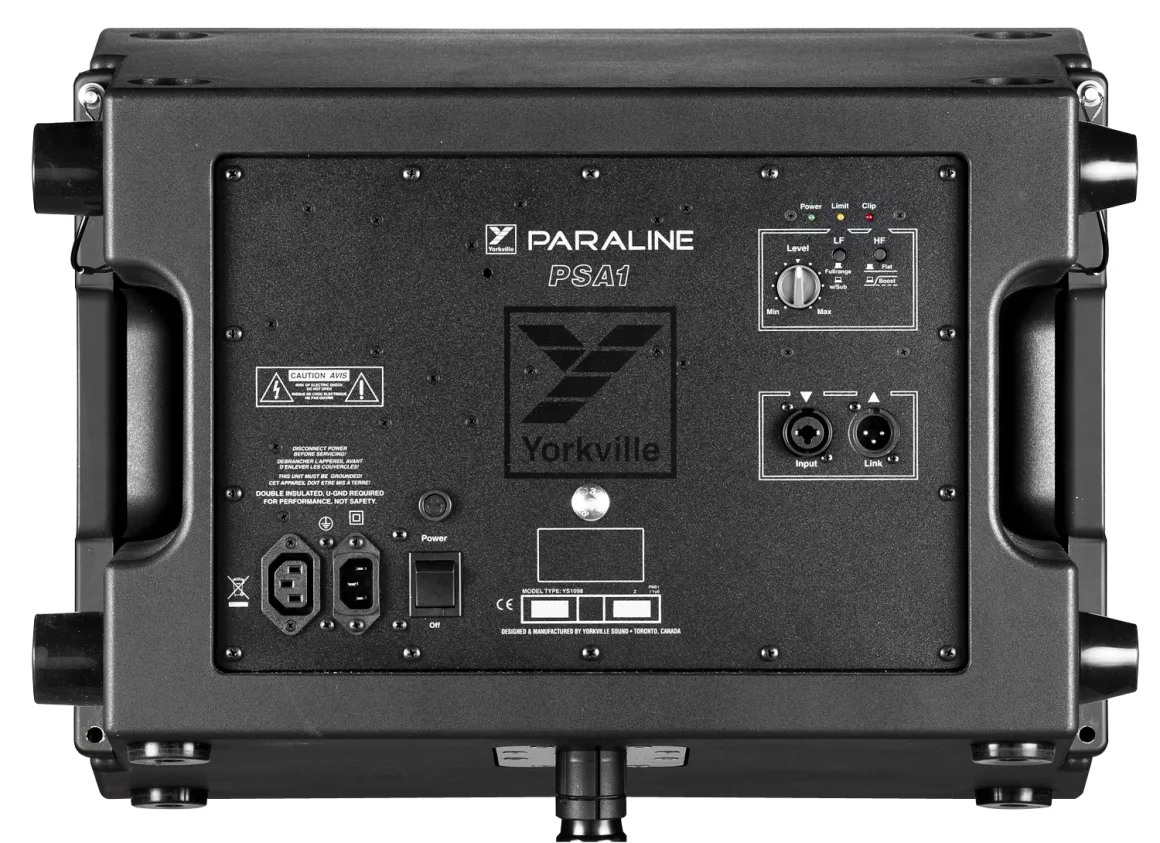

Power Cable Removable Locking IEC Input and Loop Thru Output

Power Consumption (typ/max) 135 VA / 225 VA

Inputs 1x Combi-Jack (XLR / 1/4")

Input Sensitivity (Vrms Sine) Line in 1.4 at Center, 0.35 at Max

Level Controls Volume

EQ Controls HF Boost switch, Fullrange / Sub switch

Limiter Peak and Average limiting on Horn and Woofer

LED Indicators Power, Limit, Clip

Optional Flying Hardware PSA1RIGKIT (1 per Cabinet) PSA1FRAME1 (1 per Array, Maximum 4x PSA1)

Pole Mount Adapter (1 3/8 Dual Angle (1x Bottom)

Enclosure Materials Injection Molded ABS

Baffle Material Injection Molded ABS

Covering / Finish Paint

Optional Covering / Finishes White (PSA1W)

Dimensions (DWH) 14.5” x 20.5” x 16” (36.8 cm x 52.1 cm x 40.6 cm)

Weight 52 lbs / 23.6 kg

Specifications subject to change without notice
