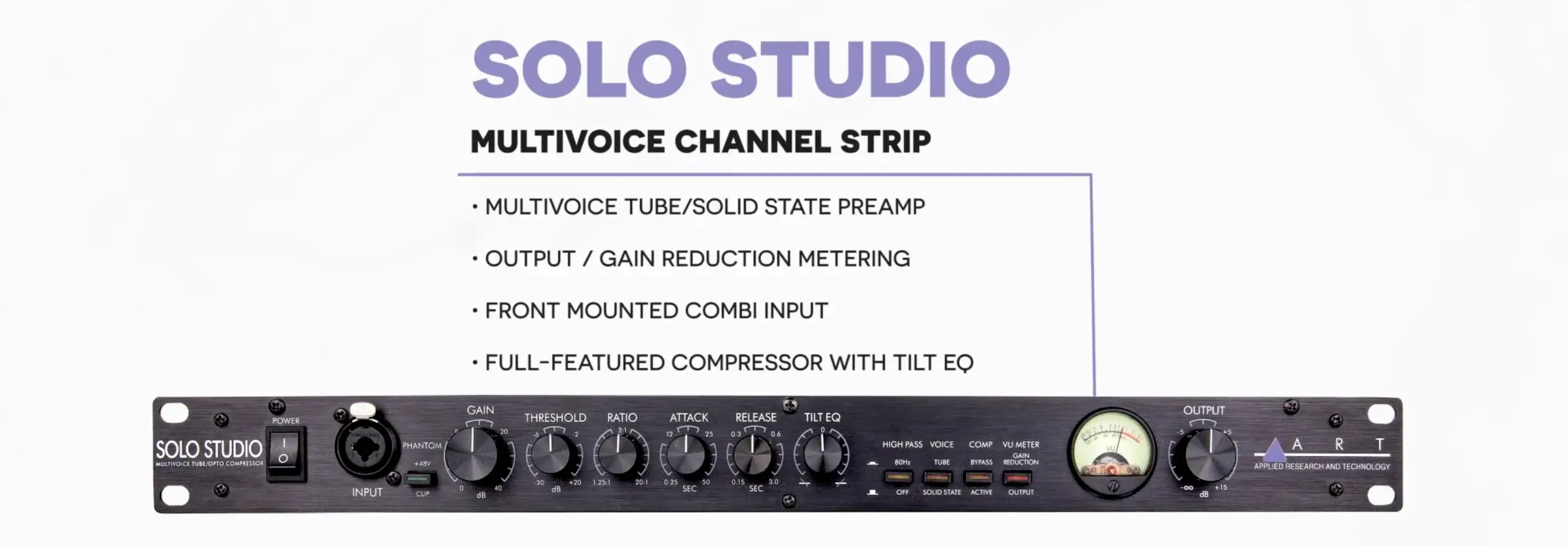

ART SOLO STUDIO

Combining the best of both worlds, the Solo Studio Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the Solo Studio to create their own signature sound. Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the Solo Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth. The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Key Features

• 48 Volt Switchable Phantom Power

• Selectable Multi-Voice Tube/Solid State Control

• Hand selected 12AT7 Tube

• OPTO – Analog Optical Isolators (AOI)

• Optical Controlled Compression

• Pre-Compression Insert Loop

• Flexible Tilt EQ

• Selectable Low Cut Filter (HPF)

• Variable Threshold and Ratio controls

• Variable Attack and Release controls

• Variable Blend (Compression)

• Variable Output Level Control

Specifications

Frequency Response 15 Hz to 50 kHz (+0, -1dB) Dynamic range >110dB (“A” weighted) CMRR >90dB THD <0.005% (typical) Equivalent Input Noise -129dBu (XLR, “A” weighted) Maximum Input Level +19dBu (XLR) Maximum Instrument Input +17dBu Input Impedance 47k ohms (XLR), >800k ohms (Instrument) Maximum Output Level) +27dBu (XLR Output Impedance < 47 ohms (XLR) Maximum Gain 55dBMeter Attack Time 0.25msec. to 50msec. variable Release Time 150msec. to 3sec. variable CMRR >90dB THD <0.005% (typical Calibration 0VU = +4dBu output (+4dBu mode) 0VU = -10dBV output (-10dBV mode) Low Cut Filter single pole, 80Hz Tilt EQ +/- 3dB adjustable Power Requirements 100-240V 50Hz/60Hz Dimensions: (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm Weight 2.5kg Box Dimensions 12.6 cm x 51.8 cm x 18.9 cm Note: 0 dBu = 0.775Vrms
