ART SOLO MPA

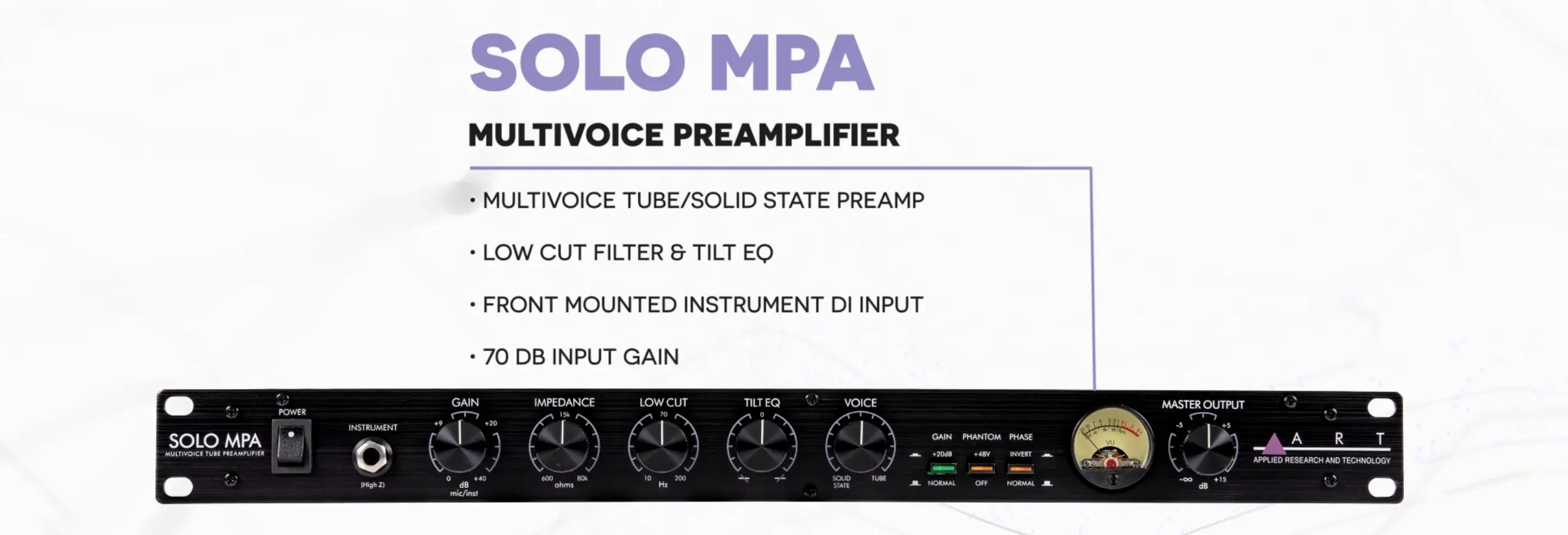

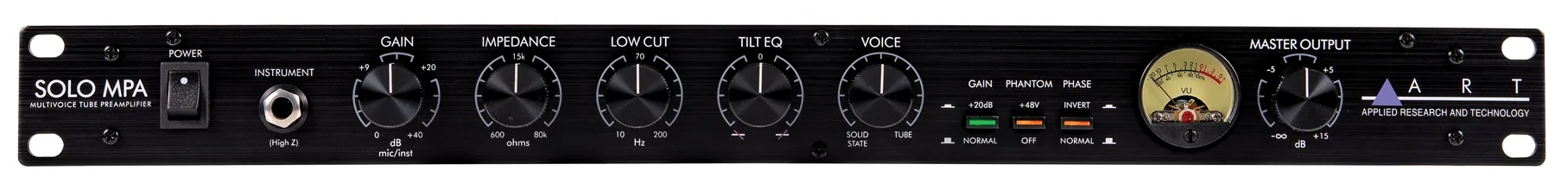

The Solo MPA Multi-Voice Tube Preamplifier allows users to blend between a pristine low-noise/low-distortion solid-state transistor circuit and a warmer Class-A tube mic preamp. The flexible EQ controls allow users to voice the Solo MPA to create their signature sound. Featuring 48V phantom power and a variable input impedance control, users can tailor the Solo MPA to suit their microphone of choice, be it a high-quality dynamic, a studio-grade condenser, or a low-level ribbon The Solo Series of single-channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

The Solo MPA Multi-Voice Tube Preamplifier allows users to blend between a pristine low-noise/low-distortion solid-state transistor circuit and a warmer Class-A tube mic preamp. The flexible EQ controls allow users to voice the Solo MPA to create their signature sound. Featuring 48V phantom power and a variable input impedance control, users can tailor the Solo MPA to suit their microphone of choice, be it a high-quality dynamic, a studio-grade condenser, or a low-level ribbon The Solo Series of single-channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Key Features

• Adjustable input impedance (600 to 80K ohms)

• Hand selected 12AX7 tube

• Flexible Tilt EQ

• Tunable Lowcut Filter

• Variable Voice Tube/Solid State Control

• Front accessible meter trim

• Discrete class A FET input microphone preamplifier

• Low THD

• Wide frequency response

• Front mounted Instrument/DI Input

• Very high input impedance

• +4dBu/-10dBV output level selection

Specifications

Frequency Response 15 Hz to 50 kHz (+0, -1dB)

Dynamic range >110dB (“A” weighted) CMRR >90dB THD <0.005% (typical Equivalent Input Noise -129dBu (XLR, “A” weighted)

Maximum Input Level +19dBu (XLR)

Maximum Instrument Input +17dBu

Input Impedance 600-80K ohms adjustable (XLR), >800k ohms (Instrument), +27dBu (XLR)

Output Impedance < 47 ohms (XLR)

Maximum Gain 75dB Meter Calibration 0VU = +4dBu output (+4dBu mode) 0VU = -10dBV output (-10dBV mode)

Low Cut Filter Single pole,10-200Hz adjustable Tilt EQ +/- 12dB adjustable

Power Requirements 100-120V 60 Hz / 220-240V 50Hz

Dimensions: (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm

Weight 2.5kg

Box Dimensions (HxWxD) 12.6 cm x 51.8cm x 18.9cm Note: 0 dBu = 0.775Vrms
