Details

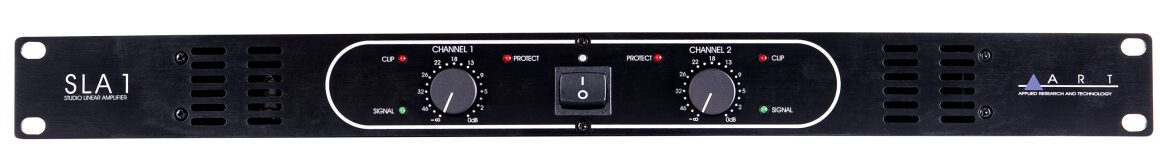

The SLA-1 Studio Linear Amplifier is a robust yet compact power amplifier designed for studio or even select live applications. It has been designed and engineered to provide clean, quiet power and excellent sound with ultra-low noise and distortion. Perfect for professional, project and home studios, the SLA-1 can easily move out of the studio and into any live rig installation as an ideal monitor amplifier or zone amp solution.
SLA-1 Applications:
- Rated at 100 watts rms/channel @ 8 ohms (130 watts rms/channel @ 4ohms), with a frequency response from 10 Hz to 40 kHz
- Capable of delivering 260 watts when bridged mono into an 8 ohm load
- Housed in an aluminum and steel single space 19-inch rackmount chassis
- Proven toroidal transformer design for unmatched long-term reliability
- The SLA-1 features SmartFan, an advanced, thermal dependent fan assisted convection cooled system.
- The SmartFan system is dependent upon the internal ambient temperature of the unit, and runs at high or low levels depending on the amplifier’s cooling needs

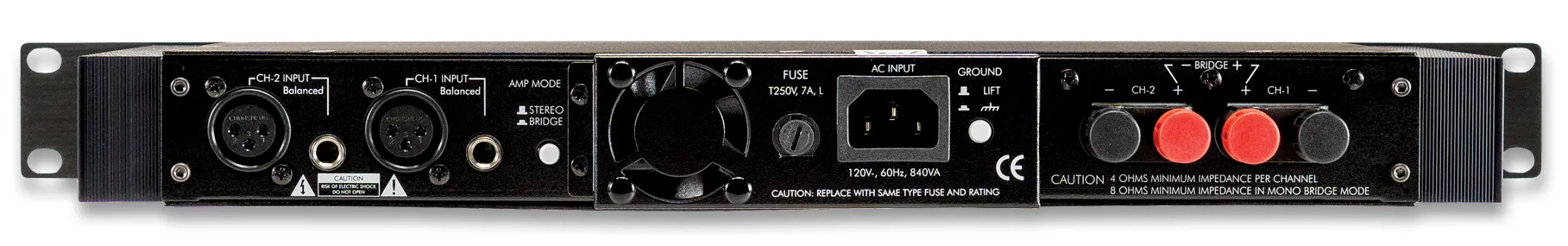

- XLR and 1/4-inch TRS balanced inputs as well as multi-way output binding posts are ensure the SLA-1 can be quickly and easily tied in to any system without modification.
- Simple to install tamper proof cover is included
Key Features
- Studio Linear Amplifier
- Extremely Low Noise, Discrete Linear Design
- 100 Watts/Channel @ 8 ohms
- 260 Watts/Bridged Mono @ 8 ohms
- Toroidal Transformer
- 10 Hz to 40 kHz within 1dB
- XLR & 1/4″ Inputs
- Ground Lift Switch
- Silent, Thermal Dependent Cooling System
- Multi-Way Binding Post Outputs
- Low Profile 1U Rackmount Design
- All Steel and Aluminum Chassis
- Perfect for Pro and Project Studio
Specifications
| Bridged Output Power, 8 Ohms | 260 W RMS mono |
| CMRR | > 60dB (typical @1kHz) |
| Frequency Response | 10Hz to 40kHz, +/- .5dB |
| Total Harmonic Distortion | <0.05% (typical) |
| Hum and Noise | > 100dB below clipping |
| Input Impedance | XLR: 44k Ω (bal), 1/4in: 22k Ω (unbal) |
| Input Sensitivity | 1V for Full Power Output into 8 Ω |
| Input/Output Connections | IN: XLR (bal), 1/4″ TRS (bal/unbal), OUT: Multi-Way binding posts |
| Stereo Output Power, 4 ohms | 130 W RMS per Channel |
| Stereo Output Power, 8 ohms | 100 W RMS per Channel |
| Transformer Type | Toroidal |
| Dimensions | 1.75″ H x 19.0″ W x 9.5″ D |
| Weight | 13.2 lbs (6.0kg.) |
