ART PS4x4

While the associated voltmeter stays relatively stable and varies slightly with line voltage and house wiring, the ammeter varies much more, as power is consumed. For example, if the unit is in a rack with digital equipment and preamps, it may not vary a lot (even if you had 8 200 watt network computers hooked up, it would show if all are up and running). However, if it is in a rack with one or more power amps, the meter’s indicator may be bouncing all around – and providing a great indication of output.

PS4x4 Applications:

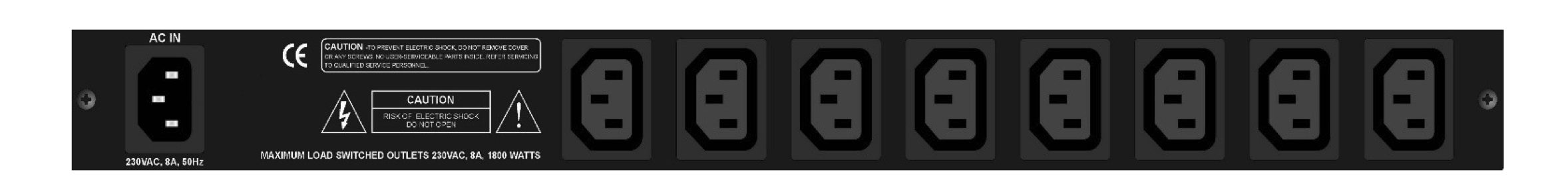

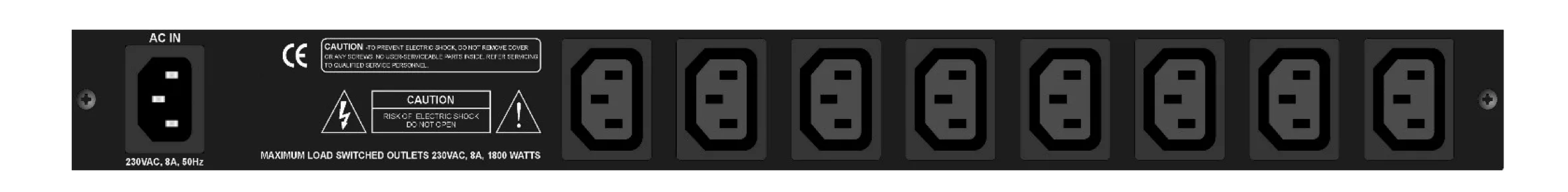

• Features ART’s “4×4” distribution on the back of the unit – four of the eight rear outputs are 1.25 inches apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from
• Surge and spike protection system, designed to protect powered equipment from harmful electric surges and spikes
• RFI and EMI filtering
• 8 amp breaker, and a total power capacity of 1800 watts

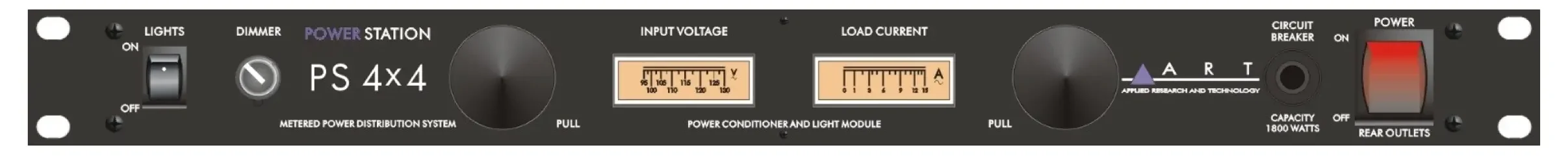

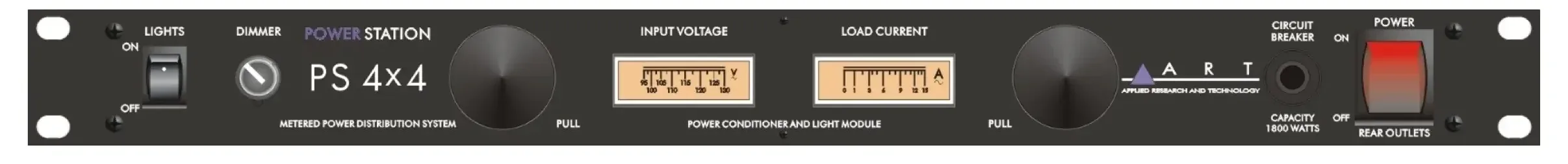

• front-located on/off power switch (which lights up when turned on), and a front-mounted circuit breaker reset switch
• Rugged, all-steel chassis occupies 1U rack spaces and is intended for installation into standard 19″ equipment racks
• Applications for the PS 4×4 include: Live Sound Systems/PA, Permanent or Fixed Installations, Church, Club and Practice PA Systems, DJ Sound Systems, Home and Project Recording Systems, and Monitor Systems
• One-year warranty

Specifications

Ammeter Metering Current, Linear Metered

Circuit Breaker 15 Amp; Front Location

Construction All-Steel Chassis

Filtering EMI & RFI

Light Pipes 2 Front Pull-Out, Shock Mounted

Power Capacity 1800 W

Power Outlets Eight Rear Outlets

Power Switch Front Location – On/Off

Power Switch Illumination Yes – In “On” Position

Protection Circuit Surge & Spike Protection

Voltage Metering Input Voltage, Linear Metered

Dimensions 1U Rack Mountable
