Violet Audio DX16B

Optimised for microphone signals, the DX16B provides the essential flexibility required in demanding live sound and studio environments. It allows engineers to seamlessly distribute isolated audio feeds to Front of House (FOH), monitor consoles, and recording rigs simultaneously.

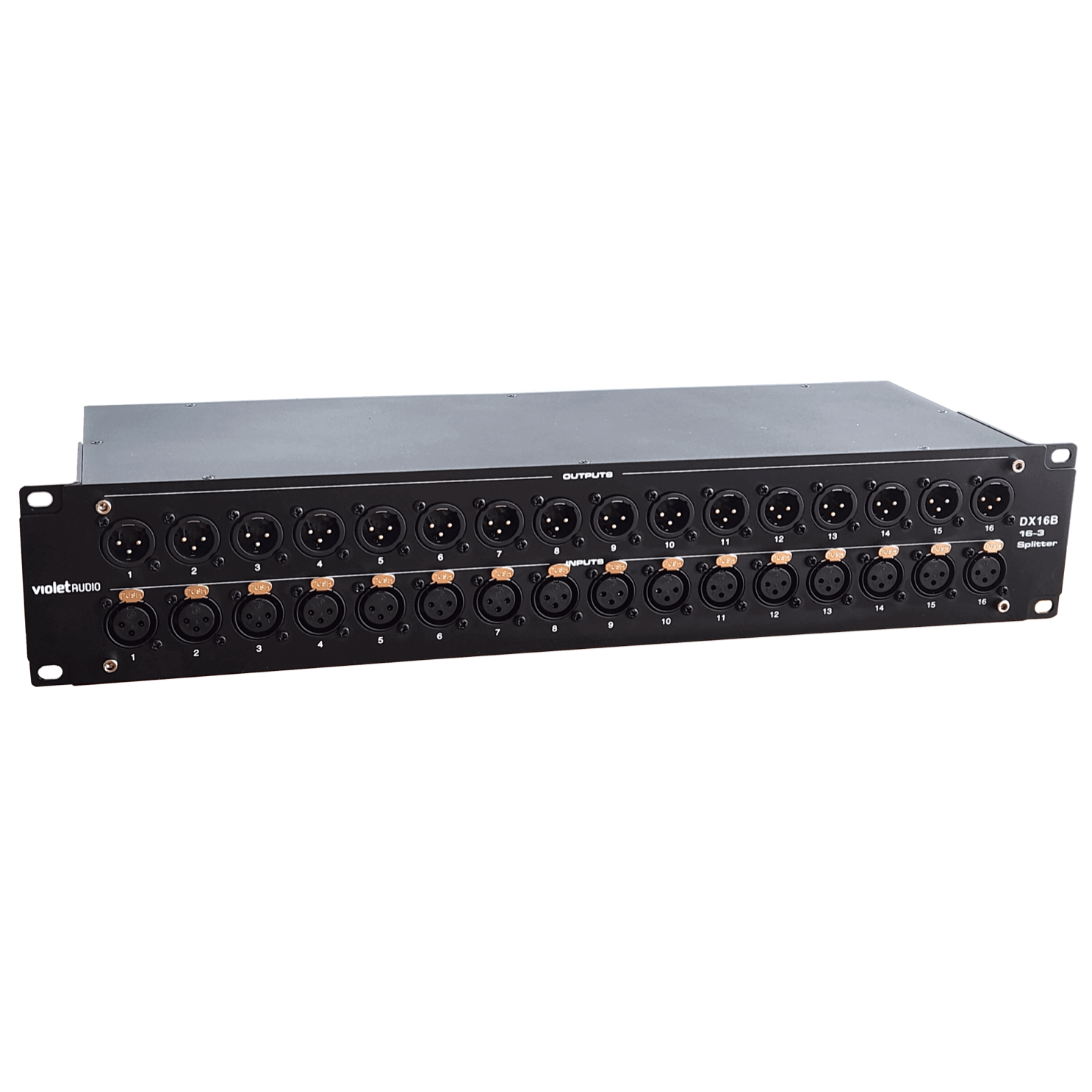

The unit offers comprehensive connectivity, featuring 16 XLR inputs and outputs on the front, supplemented by 48 additional outputs on the rear (16 via XLR, 16 via 3 x 4ch Ethercon, 16 via 2 x 8ch 25-pin D-Sub). Housed in a rugged 2RU metal chassis, the DX16B is entirely passive—requiring no external power—making it a reliable, “road-ready” solution for any professional audio kit.

Key Upgrades & Connectivity

• Secure Connections: Now features locking XLR and Ethercon connectors to prevent accidental disconnects during a performance.
• Massive I/O: 16 front-panel XLR inputs/outputs, with 48 further outputs on the rear via XLR, Ethercon, and D-Sub (Tascam pin layout).
• Tour-Grade Durability:A sturdy 2RU metal chassis designed to survive the studio and the stage alike.

Technical Specs

• Type:16-Channel, 3-Way Passive Audio Signal Splitter.
• Signal Path:Entirely passive “Pure Path” (No power supply required).

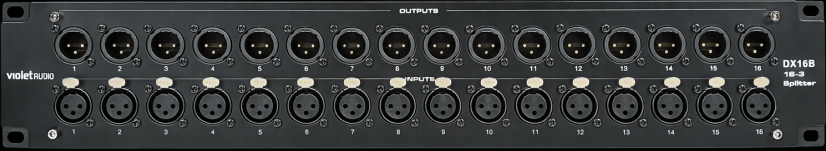

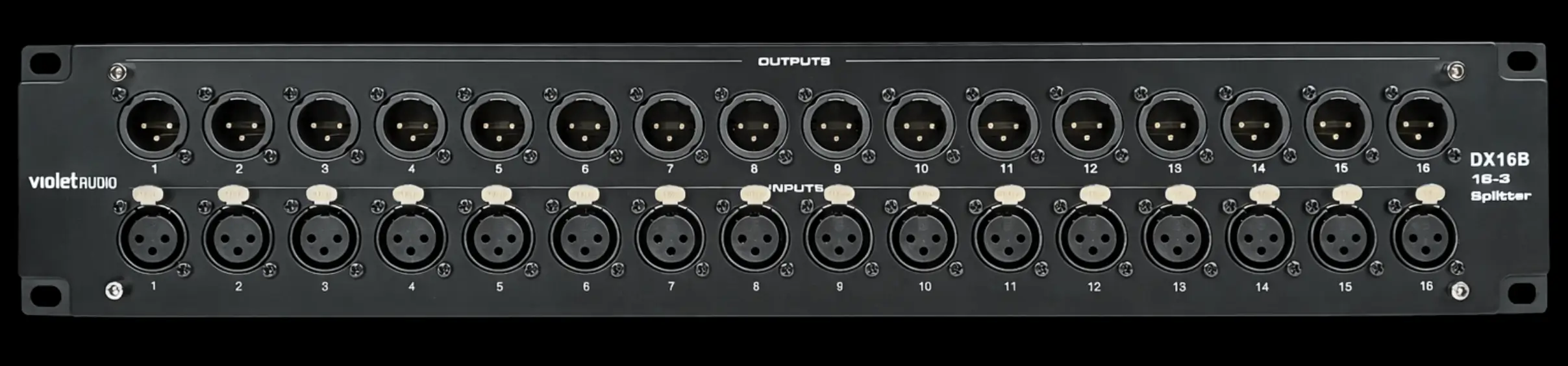

• Front I/O:16 x Locking XLR Inputs; 16 x XLR Outputs.

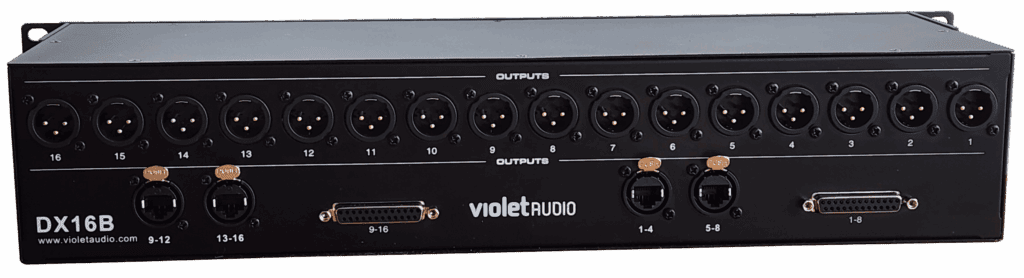

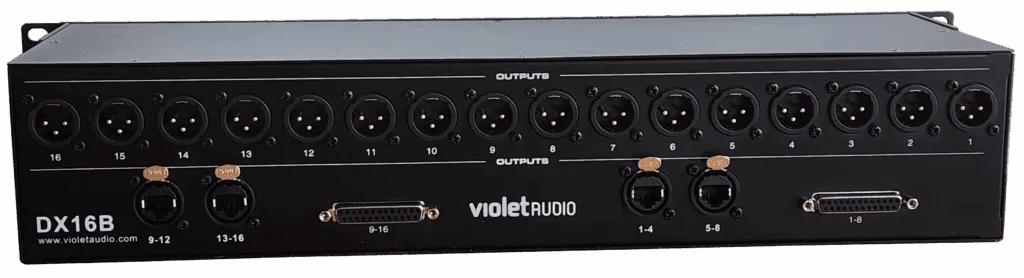

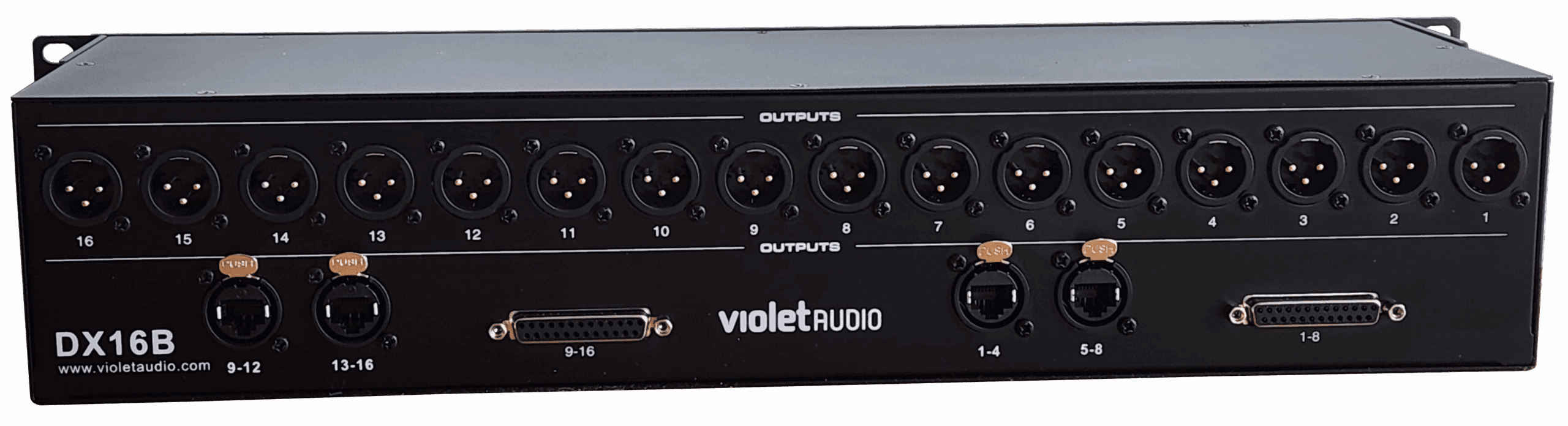

• Rear I/O: 16 x XLR Outputs; 16 x Ethercon, 16 x 25-pin D-Sub Outputs.
• Construction:Heavy-duty 2RU metal rackmount chassis.
• Applications:Live Sound (FOH/Monitor splits), Broadcast, and Studio Recording.

Entirely passive, the DX16B requires no power supply. A sturdy 2RU metal chassis construction ensures maximum durability for the road or studio.

Note: Shielded cable is required for phantom power.
