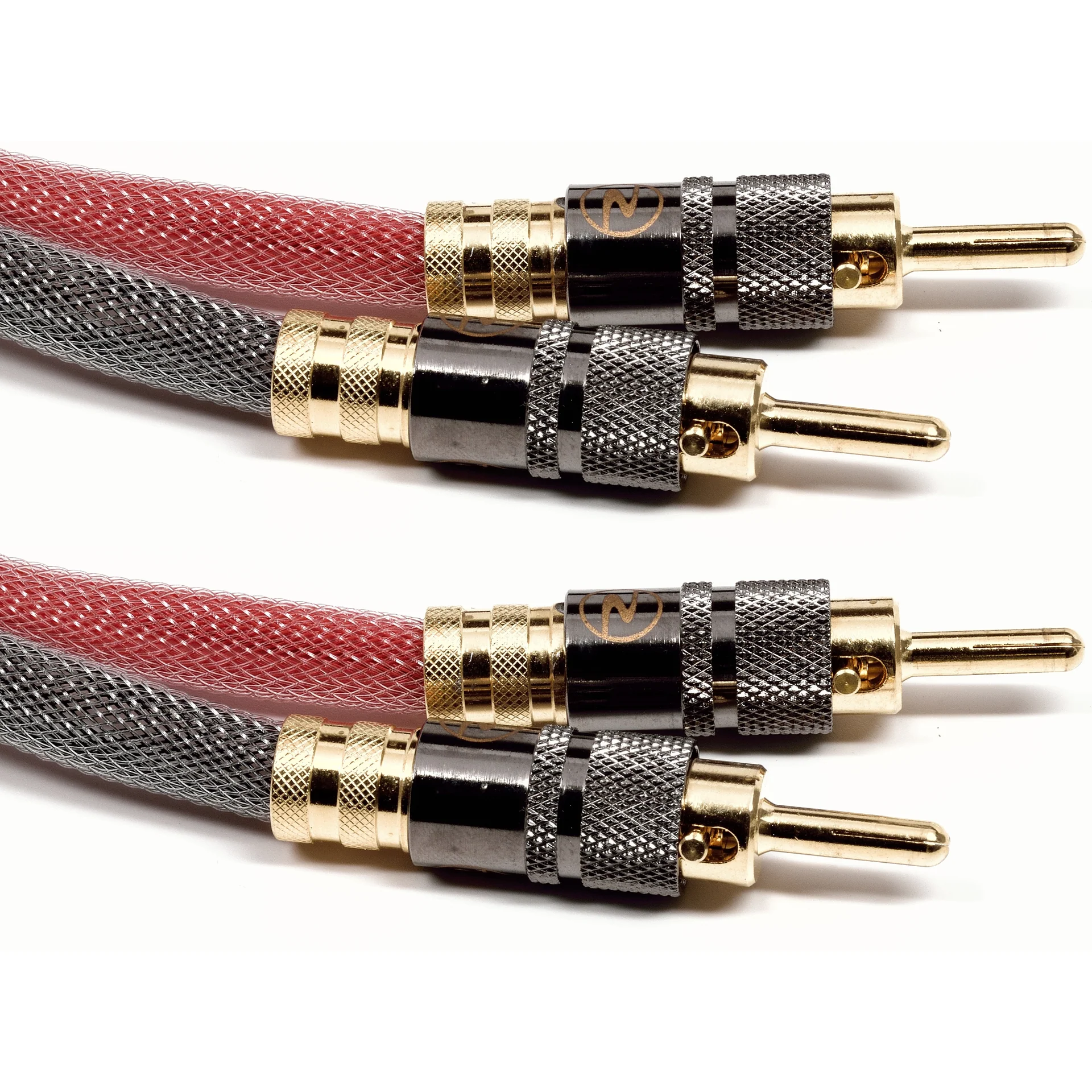

Benchmark Banana to Banana Cable - 2 Pole - 7.62m (10ft)

Top-Quality Connectors

In our lab tests we have found that heavy-duty 40-amp SpeakON™ connectors consistently outperform spade lugs, pins, and banana plugs. When SpeakON™ connectors cannot be used, we have found that locking banana plugs provide the next best connections. In contrast, spade lugs and pins often provide poor connections. Spring-type (non-locking) banana plugs almost always provide poor connections and should be avoided. The Benchmark AHB2 power amplifier is so clean that poor speaker connections can easily create more distortion than the entire power amplifier. We have seen this many times in the lab. The effects of poor speaker connections can easily be measured when testing the AHB2 power amplifier. We have learned that we cannot accurately measure the AHB2 unless we use SpeakON™ connectors or high-quality locking banana connectors.

Star-Quad Construction

This top-quality Benchmark cable features Canare Star-Quad Speaker Cable. Four heavy-duty 14 AWG stranded conductors are combined into two pairs arranged in a star-quad configuration. The combined conductors are equivalent to 11 AWG, but the star-quad configuration reduces magnetic radiation making this cable superior to 2-conductor cables.

Applications

Use this cable for connecting apower amplifier to a speaker when both are equipped with binding posts. The rear of each binding posts must include a center hole for connecting banana plugs.

• Use this cable for stereo or bridged-mono applications on amplifiers that are not equipped with SpeakON connectors.
• Use our2-pole NL2 to Banana cableswhen connecting a Benchmark AHB2 to a speaker.

Specifications

• 11 AWG effective wire gauge (pair of 14 AWG conductors)
• 4-wire Star-Quad Configuration
• Polyethylene Dielectric for low capacitance and improved frequency response
• DC Resistance < 2.6 Ohms / 1000 ft.
• Capacitance: 45 pF /ft.
• Diameter: 0.421 in.
• Super flexible heavy-duty jacket

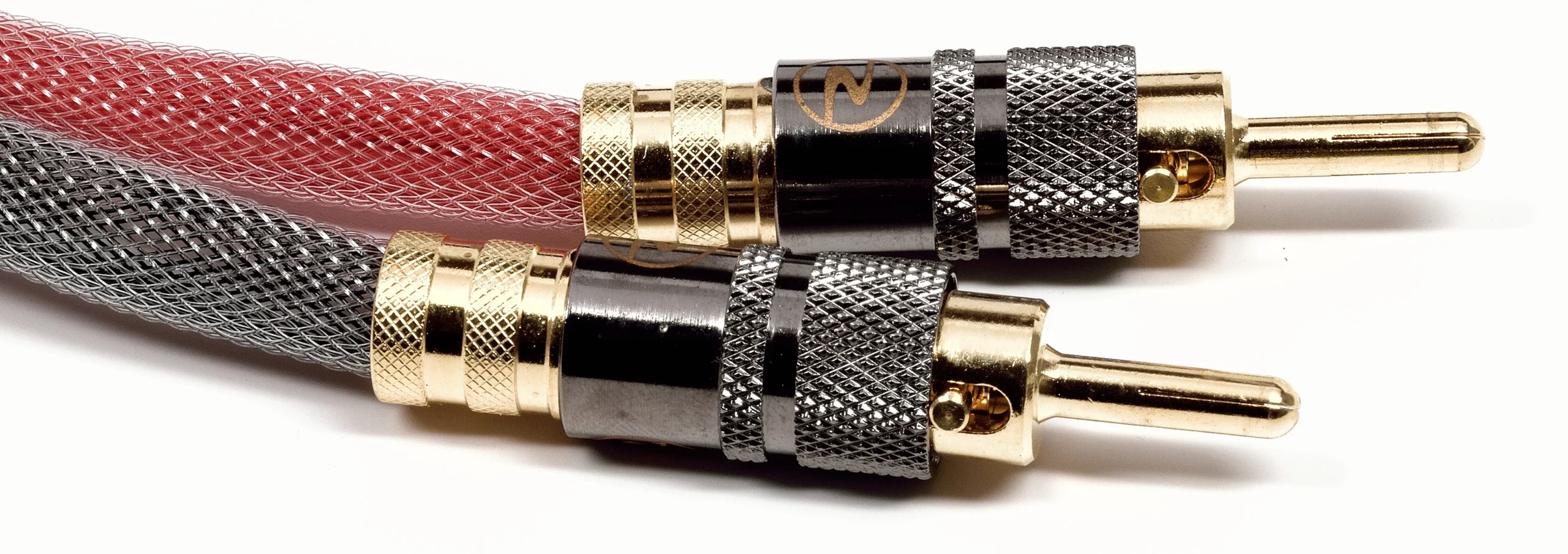

• Heavy Duty Locking Banana Plugs on both ends

Note: The Neutrik NL2FXX is the new replacement for the NL2FX

DESIGNED, ASSEMBLED, AND TESTED IN THE USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.
