ART T8

The T8™ (Transformer Eight) a high quality totally passive audio interface that uses 8 transformers to separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The T8’s audio transformers have flat and wide frequency response and handle high signal levels while maintaining an isolated balanced output. This gives the T8 a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 ohms to 100k ohms. Connection versatility sets the T8 apart from other isolation boxes.

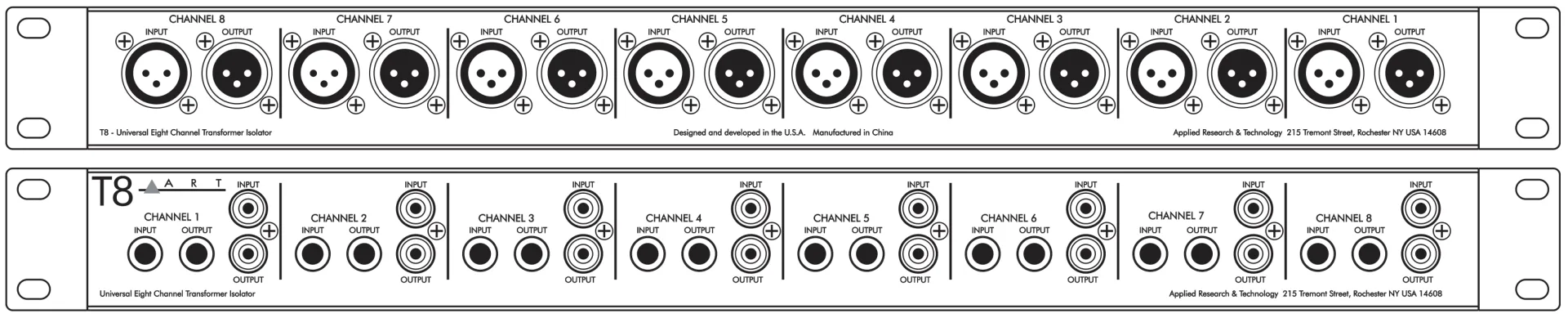

The T8 provides balanced XLR, 1/4", phone, and RCA type phono connections on all inputs and outputs simultaneously. The T8 fits easily into virtually any audio system and is a clean patch point between all types of systems. The T8s mounting ears are reversible so you can have either the XLRs on the front or the 1/4" and RCA phono jacks on the front. This maximizes flexibility in cabling your system. Whether you need an interface between a computer based audio workstation and your monitor system, isolation on long cable runs in a fixed installation, isolation of multiple signal sources from your recording equipment, or in many cases, just a safer connection between two audio systems, the T8 can accommodate. Its full feature set, rugged construction, and high-end specifications make the T8 the obvious choice for Live Sound, Permanent/Fixed Install, DJ, and virtually any PA application.

Features:

• High-quality, passive audio interface

• 8 high performance transformers

• XLR, 1/4", phone, and RCA type phono connections on all inputs and outputs.

• Reversible rack mount ears

• Separate input and output signal grounds reduce hum

• Audio transformers have an extremely flat and wide frequency response

• Very clean and neutral sound with a wide variety of signal sources

• Can be used for signal taps or as a signal splitter

• Use as a safer connection between two audio systems (ie: Computer workstation or monitor system)

• 19" 1U black all steel case

APPLICATIONS:

LIVE SOUND, D.J.

Long unbalanced cables are more susceptible to picking up hum, but using the T8 will help balance these and eliminate any hum.

When DJs set up for different jobs there is a potential to pick up hum due to the differences in house wiring, using a T8 Eliminates the potential for hum.

MIXERS/FIXED INSTALLS/RECORDING/BROADCAST/VIDEO

Use the T8 to eliminate ground loops when using multiple mixers.

Taking mixer unbalanced sends and achieving true balanced monitor outputs.

Using the T8 between video/broadcast rigs eliminates the potential for hum and loop noise.

POWER AMPLIFIERS

Hum, ground loop noise can be created between multiple amplifiers. This can be eliminated using the T8 on each of the amplifiers input lines.

COMPUTERS

Using a T8 can eliminate unwanted ground loops created between the computers and your audio input equipment.

You can also use the T8 to balance the unbalanced inputs and outputs from your computers sound card.

Specifications:

Frequency Response:

10Hz –50kHz, +/-.5dB @ +4dBu

THD: .01% Typical @ 1kHz,+18dBu, <.1% @ 100Hz, +24dBu

Channel Separation: 90dB typical

CMRR: 60dB typical

Phase Error less than 5°, 20Hz – 20kHz

Insertion Loss: .4dB @ 100k Ohm Load, 5.5dB @ 600 Ohm Load

Input Connections: XLR female balanced, 1/4” TRS balanced, and RCA type phono jacks

Output Connection: XLR male balanced, 1/4” TRS balanced, and RCA type phono jacks

Power Requirements: Totally Passive

Dimensions:

44.5mm x 482.6mm x 95mm

Weight: 1.7kg
