ART SOLO STUDIO

Name: ART SOLO STUDIO
Brand: ART Technology
SKU: ARTP_SOLOSTUDIO
Price: 649.95 AUD
Availability: InStock

SKU: ARTP_SOLOSTUDIO

AUD RRP $649.95 Inc GST*

In stock

Ask your local dealer for a deal!

Find a dealer

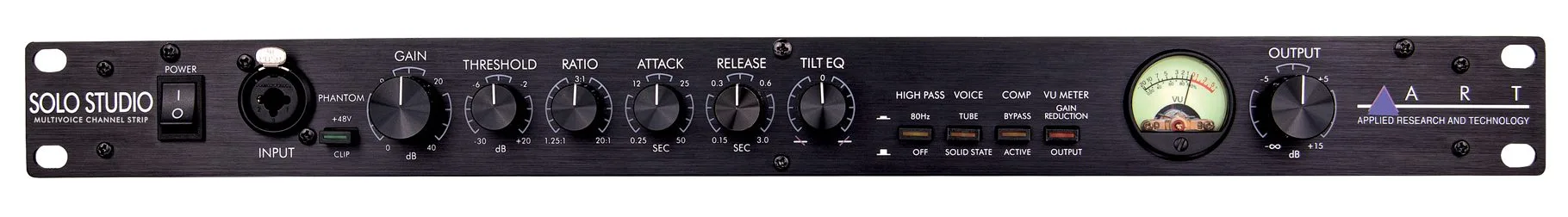

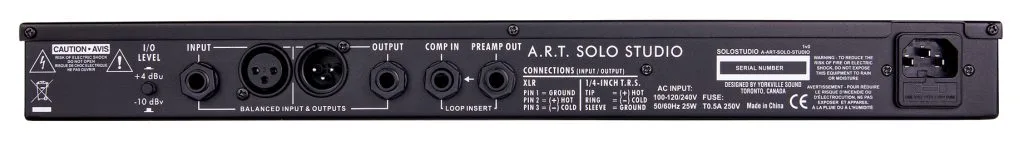

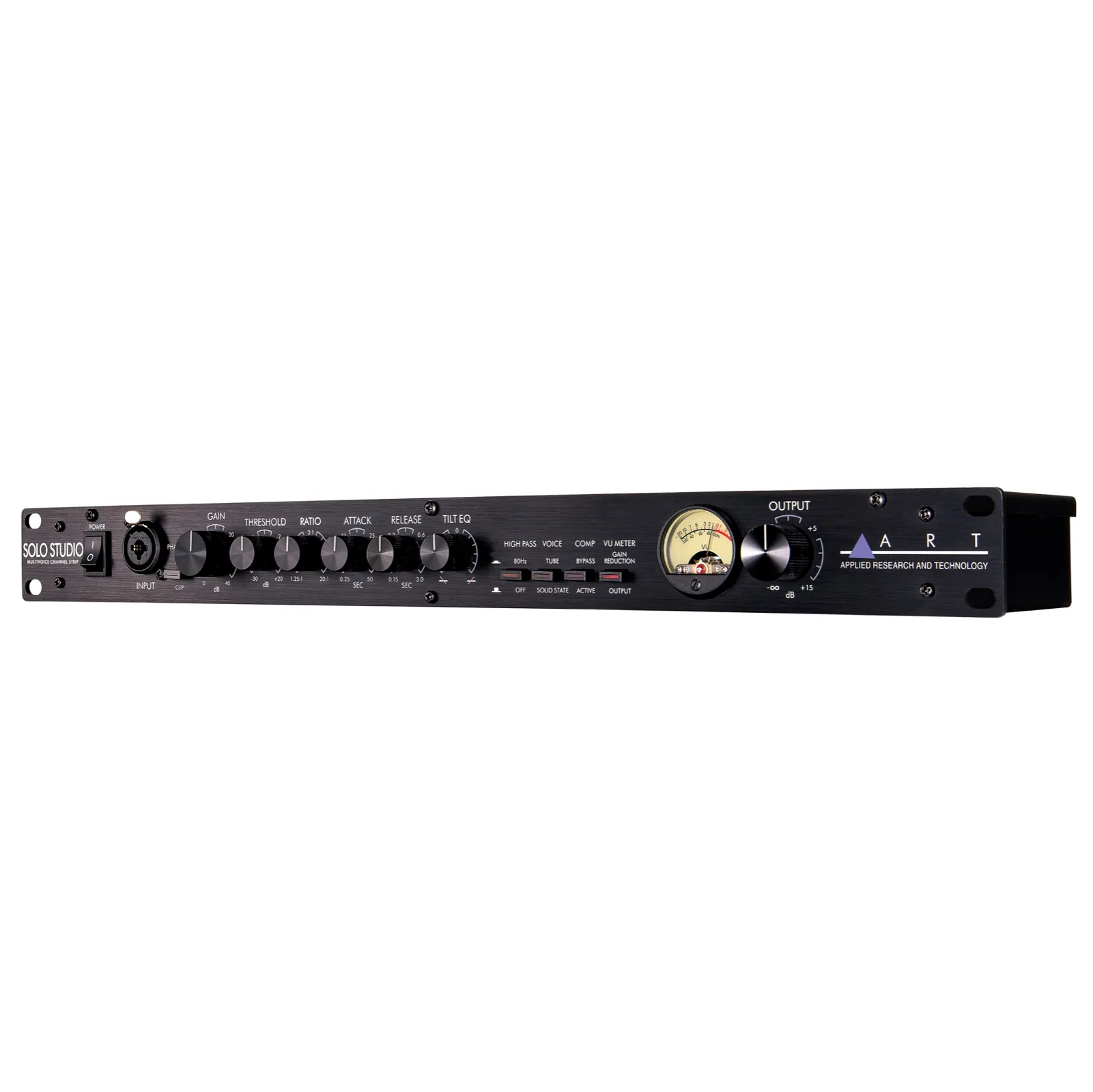

Combining the best of both worlds, the Solo Studio Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the Solo Studio to create their own signature sound. Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the Solo Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth. The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Key Features

48 Volt Switchable Phantom Power
Selectable Multi-Voice Tube/Solid State Control
Hand selected 12AT7 Tube
OPTO – Analog Optical Isolators (AOI)
Optical Controlled Compression
Pre-Compression Insert Loop
Flexible Tilt EQ
Selectable Low Cut Filter (HPF)
Variable Threshold and Ratio controls
Variable Attack and Release controls
Variable Blend (Compression)
Variable Output Level Control

Specifications

Frequency Response 15 Hz to 50 kHz (+0, -1dB) Dynamic range >110dB (“A” weighted) CMRR >90dB THD <0.005% (typical) Equivalent Input Noise -129dBu (XLR, “A” weighted) Maximum Input Level +19dBu (XLR) Maximum Instrument Input +17dBu Input Impedance 47k ohms (XLR), >800k ohms (Instrument) Maximum Output Level) +27dBu (XLR Output Impedance < 47 ohms (XLR) Maximum Gain 55dBMeter Attack Time 0.25msec. to 50msec. variable Release Time 150msec. to 3sec. variable CMRR >90dB THD <0.005% (typical Calibration 0VU = +4dBu output (+4dBu mode) 0VU = -10dBV output (-10dBV mode) Low Cut Filter single pole, 80Hz Tilt EQ +/- 3dB adjustable Power Requirements 100-240V 50Hz/60Hz Dimensions: (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm Weight 2.5kg Box Dimensions 12.6 cm x 51.8 cm x 18.9 cm Note: 0 dBu = 0.775Vrms
