Details

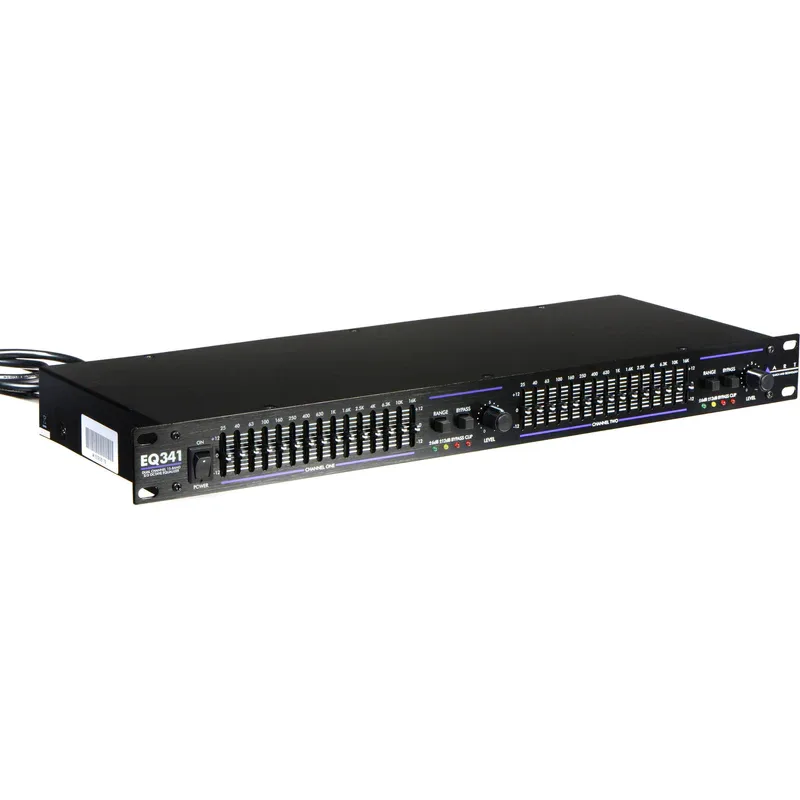

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.
Features:
- Dual Channel 15-Band Graphic Equalizer
- Constant-Q Filtering
- Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors
- +/- 6dB or +/-12dB Level Adjustments
- 20mm Center Detented Frequency Band Sliders
- Independent Level and Bypass Controls Per Channel
- Designed for Years of continuous, reliable performance
- Rugged All Steel Construction
- One Year Warranty
Specifications:
| Channel Separation | > 50dB |
| Controls | Power On/Off Switch; L/R Filter Range Switch; L/R Bypass Switch; L/R Level Control; Ground Lift Switch |
| Filter Type | Constant Q – 3% centre accuracy |
| Frequency Bands | 2×15, 2/3 octave, ISO spacing |
| Frequency Response | 20Hz to 20kHz, +0.5dB |
| Indicators | 6dB/12dB Range LEDs; Bypass and Clip LEDs |
| Input Impedance | 20k Ω (bal), 15k Ω (unbal) |

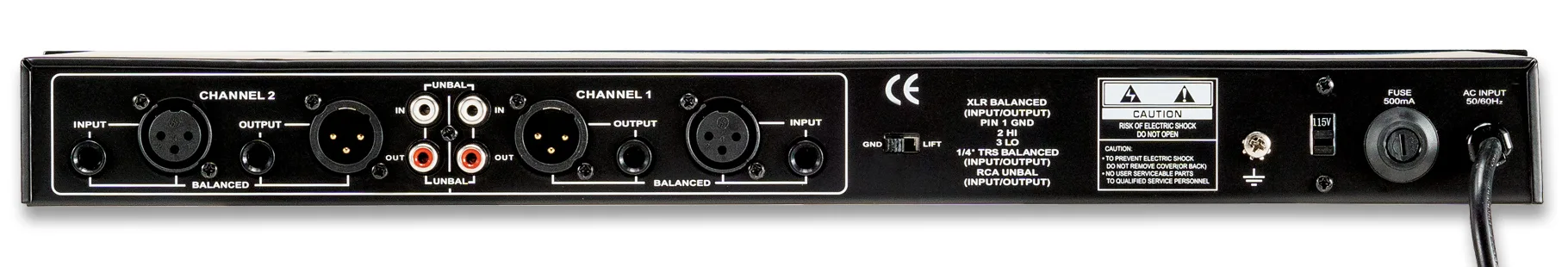

| Input/Output Connections | Active balanced XLR and 1/4″ TRS {XLR pin 2/ 1/4″ tip = Hot (+)} Unbalanced RCA |
