ART dADB

The dADB is a two-channel active direct box for connecting instrument, line, or speaker signals to balanced inputs.

The high-impedance 1/4" inputs are buffered and converted by extremely low-noise electronics to deliver isolated, low-impedance outputs. Thru jacks allow the input signal to be sent to an amplifier on stage as well as the XLR output . With an extremely flat, wide frequency response, the dADB is acoustically transparent, even at high input levels.

Both channels feature phase reversal, ground lifts to help reduce hum, low-pass Bessel filters to eliminate high-frequency interference, and up to 40 dB of attenuation.

The active circuitry can operate on phantom power or for over 100 hours on a new 9-volt battery. Active DIs are often a great match for sources like guitars and basses with passive pickups, or acoustic guitars with piezo pickups and no preamp.

The dADB provides a high-fidelity connection to a mixer, PA system, or audio interface, and offers two independent channels with versatile features in a stage-proof steel enclosure.

Features

• 2 Independent Channels

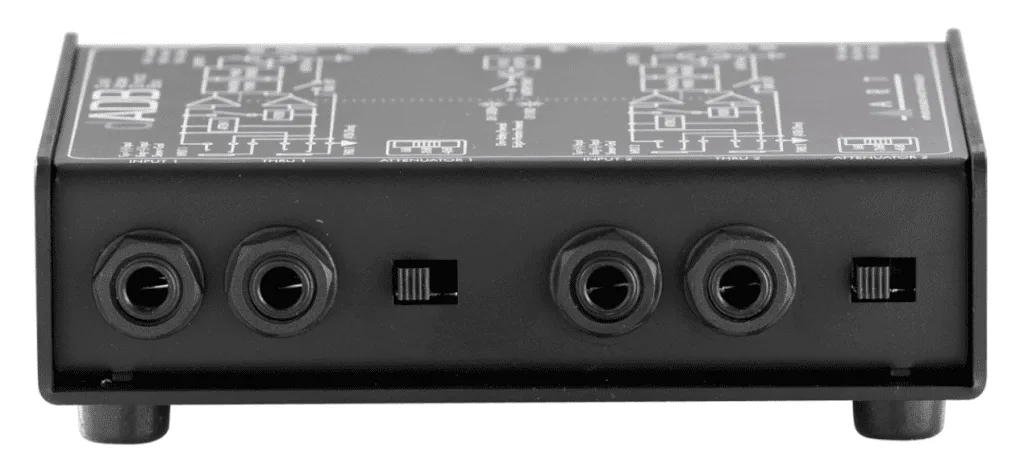

• 1/4" TRS Inputs and Thru Connections

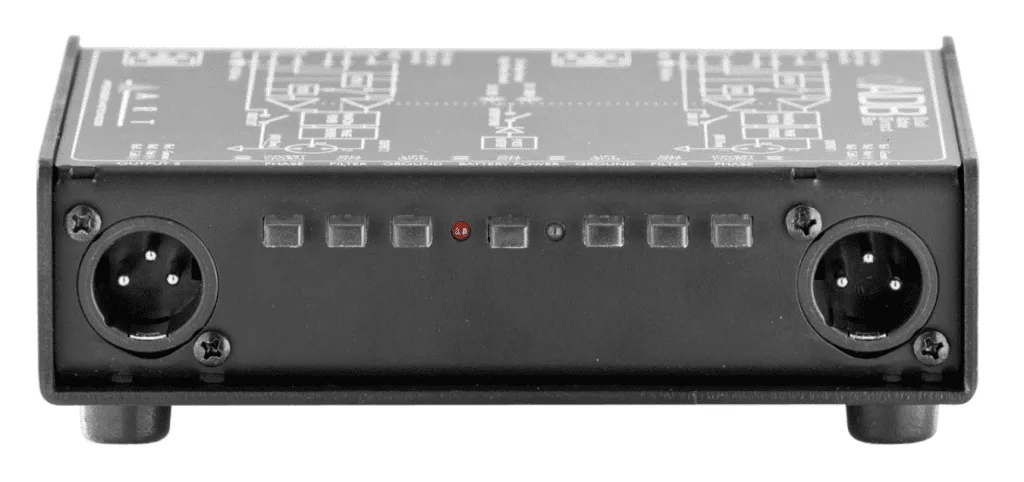

• Balanced XLR Outputs
• Switchable Attenuation (20 dB, 40 dB) per Channel
• Switchable Phase Invert, Ground Lift, and Low-Pass Filter per Channel
• Powered by 9-Volt Battery (100+ Hours) or Phantom Power
• Rugged Steel Case

Specifications

Active or Passive Active Inputs 2 x 1/4" TRS Outputs 2 x XLR 2 x 1/4" TRS Thru Input Impedance 470 kΩ Output Impedance <600Ω Maximum Input Level +4 dBu above Attenuation Setting Maximum Output Level '+6 dBu (Battery) +14 dBu (Phantom) Controls Attenuator (0 dB, -20 dB, -40 dB) Phase Invert Filter Ground Lift (All per Channel) Filter Low-Pass Bessel Filters Frequency Response 10 Hz - 100 kHz +/- 0.5 dB @ 0 dBu Dynamic Range >100 dB (Typical) Total Harmonic Distortion <.05% (Typical) Channel Separation >80 dB (Typical) Power Requirements 9V, 7.5 mA (Battery, Alkaline Recommended) 18V - 48V DC, 6.4 mA (Phantom, per Channel) Battery Life 100+ Hours Dimensions (HWD) 5.1 cm x 12.7 cm x 14.6 cm Weight 1.22 kg
